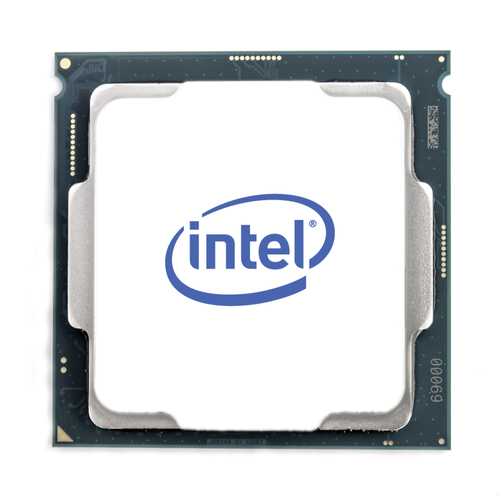

DELL Xeon Silver 4314 processor 2.4 GHz 24 MB
Product Technical Specification
| Processor | |
| Processor manufacturer | Intel |
| Processor generation | Intel Xeon Scalable 3rd Gen |
| Processor model | 4314 |
| Processor base frequency | 2.4 |
| Processor family | Intel Xeon Silver |
| Processor cores | 16 |
| Processor socket | FCLGA4189 |
| Component for | Server/Workstation |
| Processor lithography | 10 |
| Processor threads | 32 |
| System bus rate | 10.4 |
| Processor operating modes | 64-bit |
| Processor boost frequency | 3.4 |
| Processor cache | 24 |
| Thermal Design Power (TDP) | 135 |
| Box | No |
| Cooler included | No |
| Processor codename | Ice Lake |
| Processor ARK ID | 215269 |
| Memory | |
| Maximum internal memory supported by processor | 6144 |
| Memory types supported by processor | DDR4-SDRAM |
| Memory clock speeds supported by processor | 2667 |
| Memory channels | Octa-channel |
| ECC | Yes |
| Graphics | |
| On-board graphics card | No |
| Discrete graphics card | No |
| On-board graphics card model | Not available |
| Discrete graphics card model | Not available |
| Features | |
| Execute Disable Bit | Yes |
| Market segment | Server |
| Maximum number of PCI Express lanes | 64 |
| PCI Express slots version | 4.0 |
| Supported instruction sets | SSE4.2,AVX,AVX 2.0,AVX-512 |
| Scalability | 2S |
| Embedded options available | Yes |
| Harmonized System (HS) code | 8542310001 |
| Export Control Classification Number (ECCN) | 5A992CN3 |
| Commodity Classification Automated Tracking System (CCATS) | G178966 |
| Processor special features | |
| Intel® Hyper Threading Technology (Intel® HT Technology) | Yes |
| Intel® Turbo Boost Technology | 2.0 |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel® Speed Shift Technology | Yes |
| Intel® Transactional Synchronization Extensions | Yes |
| Intel® Total Memory Encryption | Yes |
| Intel® Crypto Acceleration | Yes |
| Intel® Platform Firmware Resilience Support | Yes |
| Maximum Enclave Size Support for Intel® SGX | 8 |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| AVX-512 Fused Multiply-Add (FMA) units | 2 |
| Intel® Deep Learning Boost (Intel® DL Boost) | Yes |
| Intel® Resource Director Technology (Intel® RDT) | Yes |
| Intel® Volume Management Device (VMD) | Yes |
| Mode-based Execute Control (MBE) | Yes |
| Intel® Optane™ DC Persistent Memory Supported | Yes |
| Operational conditions | |
| Tcase | 86 |
| Technical details | |
| Launch date | Q2'21 |
| Status | Launched |
| Supported memory types | DDR4-SDRAM |
| Memory speed (max) | 2667 |
| Number of UPI links | 2 |
| Packaging data | |
| Package type | Retail box |
| Weight & dimensions | |
| Processor package size | 77.5 x 56.5 |
| Other features | |
| Maximum internal memory | 6000 |
Delivery Options
Economy Delivery (UK)
Business Express
Its Thermal Monitoring Technologies protect the processor package and the system from thermal failure through several thermal management features. The VT-x with Extended Page Tables (EPT) also known as Second Level Address Translation (SLAT), provides acceleration for memory intensive virtualized applications. Packed with more features, the Xeon Silver 4314 2.4GHz Sixteen Core Processor is the ideal choice for virtually all of your data demanding or standard enterprise infrastructure applications.
