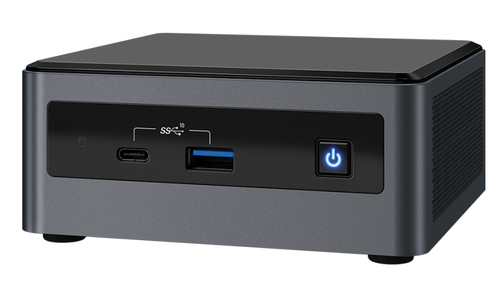

Intel NUC NUC10i7FNHN UCFF Black i7-10710U 1.1 GHz
Product Technical Specification
| Processor | |
| Built-in processor | Yes |
| Processor manufacturer | Intel |
| Processor family | Intel Core i7 |
| Processor generation | Intel Core i7-10xxx |
| Processor model | i7-10710U |
| Processor frequency | 1.1 |
| Processor cores | 6 |
| Processor threads | 12 |
| Processor lithography | 14 |
| Processor boost frequency | 4.7 |
| Processor cache | 12 |
| Thermal Design Power (TDP) | 25 |
| Memory bandwidth supported by processor (max) | 42.6 |
| CPU configuration (max) | 1 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Number of DIMM slots | 2 |
| Maximum internal memory | 64 |
| Supported memory clock speeds | 2666 |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Memory bandwidth (max) | 42.6 |
| Memory voltage | 1.2 |
| Removable memory card slot | SDXC with UHS-II support |
| ECC | No |
| Non-ECC | Yes |
| Storage | |
| Supported storage drive types | HDD & SSD |
| Storage drive sizes supported | M.2,2.5 |
| SSD form factor | M.2 |
| Storage drive interface | M.2,Serial ATA III |
| Number of storage drives supported | 2 |
| RAID levels | 0,1 |
| Card reader integrated | Yes |
| Compatible memory cards | SD,SDHC,SDXC |
| Graphics | |
| On-board graphics card | No |
| On-board graphics card model | Intel UHD Graphics |
| Number of displays supported | 3 |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX201 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel I219-V |
| Bluetooth | Yes |
| Bluetooth version | 5.2 |
| Ports & interfaces | |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| Internal USB 2.0 ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0b |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Number of SATA III connectors | 2 |
| USB version | 2.0/3.2 Gen 2 (3.1 Gen 2) |
| USB ports quantity | 7 |
| Thunderbolt 3 ports quantity | 1 |
| M.2 card slot (storage) | 2242/2280 |
| DC-in jack | Yes |
| Expansion slots | |
| PCI Express slots version | 3.0 |
| Design | |
| Chassis type | UCFF |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| Product type | Mini PC (<= 3L) barebone |
| Status | Launched |
| ARK ID | 214598 |
| Performance | |
| Motherboard form factor | UCFF |
| Trusted Platform Module (TPM) | No |
| Audio output channels | 7.1 |
| Consumer infrared Rx sensor | Yes |
| Windows operating systems supported | Windows 10 x64 |
| Compatible operating systems | Windows 11 (64-bit), Windows 10 (64-bit) |
| Commodity Classification Automated Tracking System (CCATS) | G157815L2 |
| Harmonized System (HS) code | 8471500150 |
| Export Control Classification Number (ECCN) | 5A992C |
| Processor special features | |
| Intel® vPro™ Platform Eligibility | No |
| Intel® High Definition Audio (Intel® HD Audio) | No |
| Embedded options available | No |
| Intel Rapid Storage Technology | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Clear Video Technology | Yes |
| Intel® Optane™ Memory Ready | Yes |
| Intel® Platform Trust Technology (Intel® PTT) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power | |
| Power supply type | External AC adapter |
| Weight & dimensions | |
| Width | 117 |
| Depth | 112 |
| Height | 51 |
| Packaging content | |
| Power cord included | No |
| Other features | |
| Launch date | Q2'21 |
| Additional headers | CEC, 2x USB2.0, FRONT_PANEL, RGB |
| Number of SATA connectors | 2 |
| HDD size | 2.5 |
| DC input voltage | 19 |
