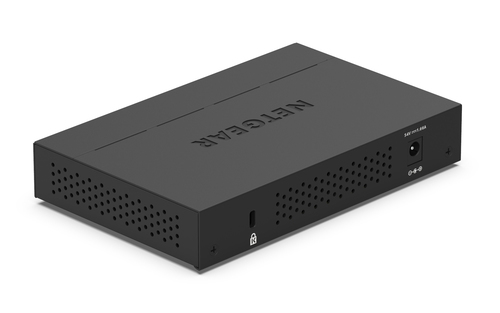

NETGEAR GS305PP Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
Product Technical Specification
Management features | |
Quality of Service (QoS) support | Yes |
Ports & interfaces | |
Basic switching RJ-45 Ethernet ports quantity | 4 |
Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
Gigabit Ethernet (copper) ports quantity | 5 |
Console port | RJ-45 |
Power connector | DC-in jack |
Network | |
Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
10G support | No |
Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
Auto MDI/MDI-X | Yes |
Auto-negotiation | Yes |
Cable length detection | Yes |
Data transmission | |
Switching capacity | 10 |
MAC address table | 2000 |
Latency (1 Gbps) | 2.4 |
Static route | Yes |
Jumbo frames support | Yes |
Jumbo frames | 9216 |
Packet forwarding rate (1 Gbps) | 1448000 |
Packet buffer memory | 128 |
Design | |
Rack mounting | No |
Product colour | Black |
Housing material | Metal |
Reset button | Yes |
LED indicators | Activity,Link,PoE,Power |
Wall mountable | Yes |
Technical details | |
Shipping (inner) case height | 306 |
Shipping (inner) case width | 469 |
Shipping (inner) case length | 237 |
Shipping (inner) case net weight | 8340 |
Products per shipping (inner) case | 6 |
Master (outer) cases per pallet layer | 10 |
Layers per pallet (air) | 4 |
Layers per pallet (sea) | 6 |
Power | |
DC input voltage | 54 |
Input current | 1.66 |
Power consumption (typical) | 2.89 |
Power consumption (max) | 88.89 |
Power over Ethernet (PoE) | |
Power over Ethernet (PoE) | Yes |
Power over Ethernet plus (PoE+) ports quantity | 4 |
Power over Ethernet (PoE) power per port | 30 |
Total Power over Ethernet (PoE) budget | 83 |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 |
Storage temperature (T-T) | -20 - 70 |
Operating relative humidity (H-H) | 10 - 90 |
Storage relative humidity (H-H) | 5 - 95 |
Heat dissipation | 304 |
Weight & dimensions | |
Width | 158 |
Depth | 101 |
Height | 29 |
Weight | 410 |
Packaging data | |
Manual | Yes |
Package width | 215 |
Package depth | 269 |
Package height | 73 |
Package weight | 1270 |
Logistics data | |
Master (outer) case width | 237 |
Master (outer) case length | 469 |
Master (outer) case height | 306 |
Master (outer) case gross weight | 8310 |
Products per master (outer) case | 6 |
Delivery Options
Economy Delivery (UK)
Business Express
NETGEAR 300 Series Gigabit Ethernet Unmanaged Switches provide easy, reliable, and affordable network connectivity for home and small offices. With these unmanaged plug-and-play switches, you can expand your network connections to multiple devices instantly. The GS305P/GS305PP and GS308P with Power-over-Ethernet (PoE) provides power and data from a single Ethernet (CAT-5) cable to devices such as IP cameras, VoIP/Internet-based phones, wireless access points, etc. Just step up to GS316, GS324 or GS348 directly to avoid congestion due to stacking up lower port count switches and be ready for future expansion.
