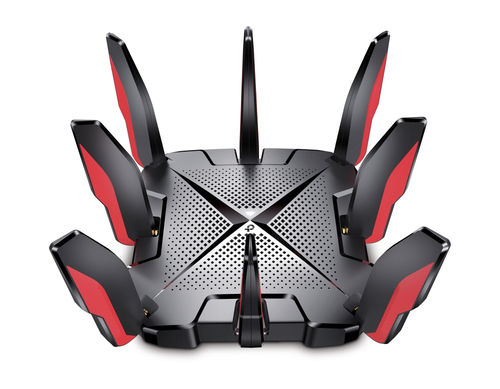

TP-Link AX6600 Tri-Band Wi-Fi 6 Gaming Router
Product Technical Specification
WAN connection | |
Ethernet WAN | Yes |
DSL WAN | No |
SIM card slot | No |
3G/4G USB modem compatibility | No |
WAN connection type | RJ-45 |
Wireless LAN features | |
Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
WLAN data transfer rate (max) | 6600 |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
WLAN data transfer rate (first band) | 4804 |
WLAN data transfer rate (second band) | 1201 |
WLAN data transfer rate (third band) | 574 |
Network | |
Ethernet LAN | Yes |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet LAN data rates | 10,100,1000 |
Cabling technology | 10/100/1000Base-T(X) |
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
Port forwarding | Yes |
Port triggering | Yes |
Number of guest networks (2.4 GHz) | 1 |
Number of guest networks (5 GHz) | 1 |
VPN server | OpenVPN, PPTP |
Mobile network | |
3G | No |
4G | No |
Ports & interfaces | |
Ethernet LAN (RJ-45) ports | 5 |
USB port | Yes |
USB 2.0 ports quantity | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
Memory card slot(s) | No |
DC-in jack | Yes |
Management features | |
Reset button | Yes |
WPS push button | Yes |
Security | |
Firewall | Yes |
Access Control List (ACL) | Yes |
Stateful Packet Inspection (SPI) | Yes |
Parental control | Yes |
DMZ support | Yes |
Protocols | |
DHCP client | Yes |
DHCP server | Yes |
Universal Plug and Play (UPnP) | Yes |
Supported network protocols | IPv4, IPv6 |
Design | |
Product colour | Black,Red |
Indication light | Yes |
LED indicators | LAN,Power,WLAN |
On/off switch | Yes |
Product type | Tabletop router |
Packaging content | |
Cables included | LAN (RJ-45) |
AC adapter included | Yes |
Manual | Yes |
Antenna | |
Antenna design | External |
Antennas quantity | 4 |
Detachable antenna(s) | Yes |
Features | |
Built-in processor | Yes |
Processor frequency | 1500 |
Processor cores | 4 |
Certification | FCC, CE, RoHS |
Power | |
Power source type | DC |
Output voltage | 12 |
Output current | 5 |
Operational conditions | |
Operating temperature (T-T) | 0 - 40 |
Storage temperature (T-T) | -40 - 70 |
Operating relative humidity (H-H) | 10 - 90 |
Storage relative humidity (H-H) | 5 - 90 |
Weight & dimensions | |
Width | 212 |
Depth | 212 |
Height | 51.8 |
Logistics data | |
Harmonized System (HS) code | 85176990 |
Delivery Options

Economy Delivery (UK)

Business Express
Higher speeds create less congestion for gaming rigs. Archer GX90 provides tri-band Wi-Fi 6 for outstanding online gaming experiences. One dedicated Gaming Band with HT160 offers 4.8 Gbps of bandwidth—more than enough for your gaming needs.
Battle-Tested Hardware.
Powerful quad-core CPU assures every packet of data is transmitted without delay even under heavy loads. The 2.5 Gbps gaming port breaks the gigabit bottleneck and unleashes huge throughput for your online play.
Keep Elements Secure.
Game Protector keeps your accounts and system safe. Alongside the latest WPA3 protocol, this HomeCare™ security system protects every device from the latest cyber threats, ensuring your total security while gaming online.
Flexible Whole-Home Wi-Fi
Eight high-performance antennas, Beamforming, and high-power FEM combine to deliver broad coverage. Furthermore, Archer GX90 supports OneMesh™ to form seamless whole-home coverage, preventing drops and lag when moving between signals.
