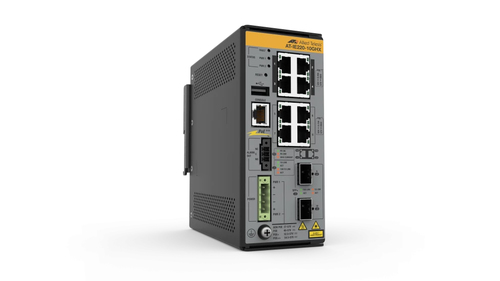

Allied Telesis IE220-10GHX Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Grey
Product Technical Specification
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Traffic classification | Yes |
| Traffic shaping | Yes |
| ARP inspection | Yes |
| Configuring Location Settings (CLI) | Yes |
| System event log | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 10 |
| Combo SFP ports quantity | 2 |
| USB 2.0 ports quantity | 1 |
| Network | |
| Networking standards | IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1p,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ac,IEEE 802.3bt |
| 10G support | No |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| VLAN support | Yes |
| Number of VLANs | 4094 |
| Data transmission | |
| Switching capacity | 56 |
| Throughput | 41.7 |
| MAC address table | 16000 |
| Jumbo frames support | Yes |
| Packet buffer memory | 2 |
| Security | |
| DHCP features | DHCP client,DHCP snooping |
| Access Control List (ACL) | Yes |
| IGMP snooping | Yes |
| Security algorithms | 802.1x RADIUS |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication,Port-based authentication |
| Multicast features | |
| Multicast support | Yes |
| Protocols | |
| Management protocols | SNMPv1/v2c/v3 |
| Design | |
| Rack mounting | No |
| Product colour | Grey |
| Housing material | Aluminium,Metal |
| International Protection (IP) code | IP30 |
| Wall mountable | Yes |
| DIN rail mounting | Yes |
| Performance | |
| Internal memory | 512 |
| Flash memory | 128 |
| Power | |
| Power source | DC/PoE |
| Input voltage | 37 - 57 |
| Power consumption (max) | 18.5 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet 4PPoE (PoE++) ports quantity | 2 |
| Weight & dimensions | |
| Width | 65 |
| Depth | 137 |
| Height | 155 |
Delivery Options
Economy Delivery (UK)
Business Express
Ruggedized switches built for enduring performance in harsh environments. Power over Ethernet (PoE++) connects and powers environmental, system control, and other key IIoT devices for a reliable and high-performing solution and 10G fiber uplinks ensure capacity for demanding edge applications. The IE220 Series enables safety, security, and smooth operation for building automation, intelligent transportation, and smart city networks.
