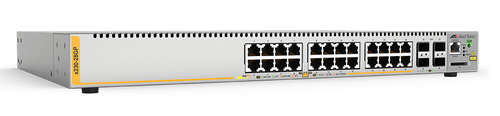

Allied Telesis x230-28GP Managed L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Grey

Manufacturer: ALLIED TELESIS | Model: AT-X230-28GP-30 | Product ID: 9846
£1032.29 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Management features
Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
Traffic classificationYes
ARP inspectionYes
Configuring Location Settings (CLI)Yes
System event logYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity24
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Gigabit Ethernet (copper) ports quantity24
SFP module slots quantity4
Fiber optic connectorSFP
Compatible memory cardsSD,SDHC
Network
Networking standardsIEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G supportNo
Copper ethernet cabling technology10BASE-T,100BASE-T,1000BASE-T
Port mirroringYes
Full duplexYes
IP routingYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Spanning tree protocolYes
Active link detectionYes
VLAN supportYes
Virtual LAN featuresPrivate VLAN,Stacked VLAN,Tagged VLAN
Number of VLANs2048
Optical fiber
Fiber ethernet cabling technology100BASE-X,1000BASE-X
Data transmission
Switching capacity56
Forwarding rate41.7
MAC address table16000
Latency (1 Gbps)4.3
Number of queues8
Static routeYes
Jumbo frames supportYes
Jumbo frames10000
Packet buffer memory1.5
Security
DHCP featuresDHCP client,DHCP snooping,DHCPv6 client
Access Control List (ACL)Yes
IGMP snoopingYes
Security algorithms3DES,AES,MD5,PEAP,SHA-1,SHA-2,SNMPv3,SSH,SSL/TLS,TTLS
MAC address filteringYes
SSH/SSL supportYes
Loop protectionYes
BPDU filtering/protectionYes
AuthenticationGuest VLAN,MAC-based authentication,Web-based authentication
Password protectionYes
Authentication typeAAA,IEEE 802.1x
Queue scheduling algorithmsSP,Weighted Round Robin (WRR)
Multicast features
Multicast supportYes
Multicast MAC address table512
Protocols
Management protocolsSNMPv1, v2c, v3
Routing protocolsRIP,RIP-2
Design
Rack mountingYes
StackableYes
Form factor1U
Product colourGrey
LED indicatorsYes
Country of originChina
Electromagnetic compatibilityEN55022 class A, FCC class A, VCCI class A
CertificationUL, cUL, UL-EU, RoHS
Performance
Memory typeDDR-SDRAM
Internal memory256
Flash memory64
Noise level34
Firmware upgradeableYes
Power
Power supply includedYes
AC input voltage100 - 240
AC input frequency50 - 60
Input current2.4
Power consumption (max)520
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet plus (PoE+) ports quantity24
Total Power over Ethernet (PoE) budget370
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-20 - 60
Operating relative humidity (H-H)0 - 90
Storage relative humidity (H-H)0 - 95
Operating altitude0 - 2000
Heat dissipation303
Weight & dimensions
Width440
Depth290
Height44
Weight4700
Packaging data
Package width530
Package depth430
Package height150
Package weight6350

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
The Allied Telesis x230-28GP features 24 10/100/1000T PoE+ ports with 4 SFP Gigabit uplink ports. Its full feature-set and Power over Ethernet Plus (PoE+) are ideal for applications at the network edge. The x230-28GP supports today’s converged networks with Gigabit Ethernet to the desktop, while powering VoIP phones, wireless access points, and IP security cameras.
