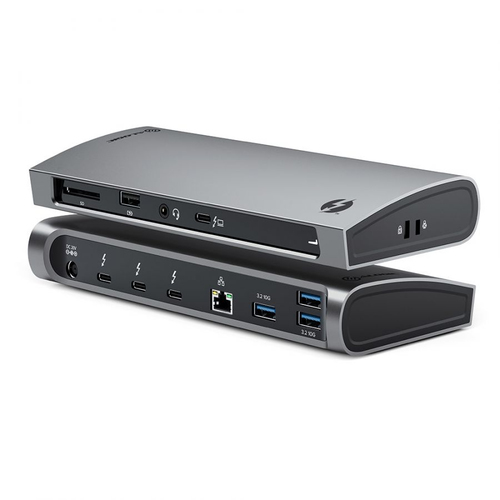

ALOGIC TB4D3TB laptop dock/port replicator Wired Thunderbolt 4 Black
Product Technical Specification
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Thunderbolt 4 ports quantity | 3 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 |
| Maximum refresh rate | 60 |
| Cable lock slot | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Plug and Play | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS),Aluminium |
| Compatibility | Apple, Microsoft |
| Power | |
| Power supply | 135 |
| Power consumption (max) | 96 |
| Weight & dimensions | |
| Width | 84 |
| Depth | 194 |
| Height | 30 |
| Packaging data | |
| Quantity per pack | 1 |
| Packaging content | |
| Cables included | AC |
| AC adapter included | Yes |
| Manual | Yes |
Delivery Options
Economy Delivery (UK)
Business Express
Designed for when speed and performance matter, the dock provides a massive 40Gbps bandwidth for connecting external displays and high-speed peripherals such as external hard drives. Unlike existing Thunderbolt docks which only provide a single Thunderbolt downstream port, the ALOGIC BLAZE docking station can connect up to 3x downstream Thunderbolt 4 / USB 4.0 peripherals. With the addition of the inbuilt SD 4.0 card reader this dock offers unparalleled productivity for creative professionals.
Single Cable Simplicity –96W Charging
This dock truly does it all –and all over a single cable. In addition to transferring data and video over a single connection to the computer, the dock can also provide up to 96W of power to charge laptops using USB Power Delivery technology. This is sufficient to power almost any notebook PC including 16” MacBook devices.
Comprehensive Connectivity
The ALOGIC BLAZE dock features a comprehensive range of ports to allow connection of all standard peripherals including:
- 3 x Thunderbolt/USB-C (40G)
- 3 x USB-A (10G)
- 1 x USB-A with Mobile Device Charging (480Mbps)
- Gigabit Ethernet
- Combo Headphone/Microphone Jack
- SD 4.0 Card Reader
Dual Ultra-High Definition Display: 4K@60Hz
The BLAZE dock provides dual monitor support for Thunderbolt equipped host computers and single monitor support for hosts connected using USB-C (DP Alt Mode) as follows:
- Thunderbolt 3 or 4: Dual 4K monitors at 60Hz
- USB-C (DP Alt Mode): Single 4K monitor at up to 60Hz
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 4 |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| Thunderbolt 4 ports quantity | 3 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | SD |
| HD type | 4K Ultra HD |
| Maximum digital resolution | 3840 x 2160 |
| Maximum refresh rate | 60 |
| Cable lock slot | Yes |
| Product colour | Black |
| LED indicators | Yes |
| Plug and Play | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS),Aluminium |
| Compatibility | Apple, Microsoft |
| Power | |
| Power supply | 135 |
| Power consumption (max) | 96 |
| Weight & dimensions | |
| Width | 84 |
| Depth | 194 |
| Height | 30 |
| Packaging data | |
| Quantity per pack | 1 |
| Packaging content | |
| Cables included | AC |
| AC adapter included | Yes |
| Manual | Yes |
