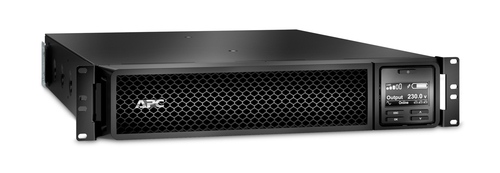

APC SRT2200RMXLI-NC uninterruptible power supply (UPS) Double-conversion (Online) 2.2 kVA 1980 W 12 AC outlet(s)
Product Technical Specification
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2.2 |
| Output power | 1980 |
| Waveform | Sine |
| Input operation voltage (min) | 160 |
| Input operation voltage (max) | 275 |
| Input frequency | 40 - 70 |
| Output operation voltage (min) | 220 |
| Output operation voltage (max) | 240 |
| Surge energy rating | 340 |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2 |
| Noise level | 55 |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler,C19 coupler |
| AC outlets quantity | 12 |
| Number of output IEC jumpers | 2 |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| Ethernet LAN (RJ-45) ports | 1 |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 367 |
| Number of batteries supported | 1 |
| Battery life (max) | 5 |
| Battery recharge time | 3 |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cable length | 2.44 |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 50 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15000 |
| Technical details | |
| Sustainability certificates | RoHS,ENERGY STAR |
| Weight & dimensions | |
| Width | 432 |
| Depth | 584 |
| Height | 85 |
| Weight | 25000 |
| Package width | 599 |
| Package depth | 810 |
| Package height | 246 |
| Package weight | 34020 |
| Other features | |
| Output voltage | 230 |
Delivery Options
Economy Delivery (UK)
Business Express
Network manageable via serial, USB or optional Ethernet. Includes Powerchute Network Shutdown Software for convenient monitoring and control, safe operating system shutdown, and innovative energy management capabilities.
Low operating and maintenance costs with proven reliability and intelligent battery management.
Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Automatic self tests insure battery reliability and warn customers in advance of battery replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down.
Avoids costly power problems by keeping your IT equipment and data protected and available.
Network grade power conditioning protects from damaging surges and disruptive noise. The double conversion architecture provides tight voltage regulation, frequency regulation ,and zero transfer time to battery during power events.
Peace of mind that comes with full equipment compatibility and reliability of a leader
Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.
| Features | |
| UPS topology | Double-conversion (Online) |
| Output power capacity | 2.2 |
| Output power | 1980 |
| Waveform | Sine |
| Input operation voltage (min) | 160 |
| Input operation voltage (max) | 275 |
| Input frequency | 40 - 70 |
| Output operation voltage (min) | 220 |
| Output operation voltage (max) | 240 |
| Surge energy rating | 340 |
| Crest factor | 3:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 2 |
| Noise level | 55 |
| Audible alarm(s) | Yes |
| Ports & interfaces | |
| AC outlet types | C13 coupler,C19 coupler |
| AC outlets quantity | 12 |
| Number of output IEC jumpers | 2 |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RJ-45 |
| Ethernet LAN (RJ-45) ports | 1 |
| SmartSlot | Yes |
| Battery | |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 367 |
| Number of batteries supported | 1 |
| Battery life (max) | 5 |
| Battery recharge time | 3 |
| Design | |
| Form factor | Rackmount |
| Rack capacity | 2U |
| Cable length | 2.44 |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| International Protection (IP) code | IP20 |
| Certification | CE, CE Mark, EAC, EN/IEC 62040-1, EN/IEC 62040-2, RCM, VDE |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 50 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Operating altitude | 0 - 3000 |
| Non-operating altitude | 0 - 15000 |
| Technical details | |
| Sustainability certificates | RoHS,ENERGY STAR |
| Weight & dimensions | |
| Width | 432 |
| Depth | 584 |
| Height | 85 |
| Weight | 25000 |
| Package width | 599 |
| Package depth | 810 |
| Package height | 246 |
| Package weight | 34020 |
| Other features | |
| Output voltage | 230 |
