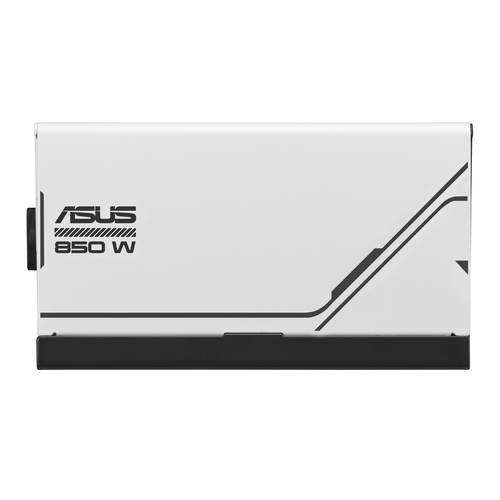

ASUS AP-850G power supply unit 850 W 20+4 pin ATX ATX Black, White
Product Technical Specification
| Power | |
| Total power | 850 |
| AC input voltage | 100 - 240 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 110 |
| Combined power (+12V) | 846 |
| Combined power (+5V) | 110 |
| Combined power (-12V) | 3.6 |
| Combined power (+5Vsb) | 12.5 |
| Max output current (+3.3V) | 20 |
| Max output current (+12V) | 70.5 |
| Max output current (+5V) | 20 |
| Max output current (-12V) | 0.3 |
| Max output current (+5Vsb) | 2.5 |
| Power protection features | Over current,Over power,Over voltage,Overheating,Short circuit,Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 610 |
| Number of SATA power connectors | 5 |
| SATA power cable length | 400,120 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 400,150 |
| PCI Express power connectors (8-pin) | 3 |
| PCI Express power connectors (16-pin) | 1 |
| PCI Express power cable length | 675 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 650 |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| Mean time between failures (MTBF) | 120000 |
| Design | |
| Product colour | Black,White |
| Cooling type | Active |
| Number of fans | 1 |
| Fan location | Top |
| Illumination | Yes |
| Packaging content | |
| Cables included | CPU,PCIe,SATA,Peripheral (Molex) |
| Certificates | |
| Compliance certificates | RoHS |
| Weight & dimensions | |
| Width | 150 |
| Depth | 150 |
| Height | 86 |
| Weight | 1502 |
| Packaging data | |
| Package width | 346 |
| Package depth | 208 |
| Package height | 144 |
| Package weight | 2920 |
| Package type | Box |
Delivery Options
Economy Delivery (UK)
Business Express
With 80+ Gold certification, dual ball bearing fans, and an 8-year warranty, the ASUS Prime series PSU brings efficient and durable power delivery to high-performance workstations, all-round PCs, and gaming rigs.
