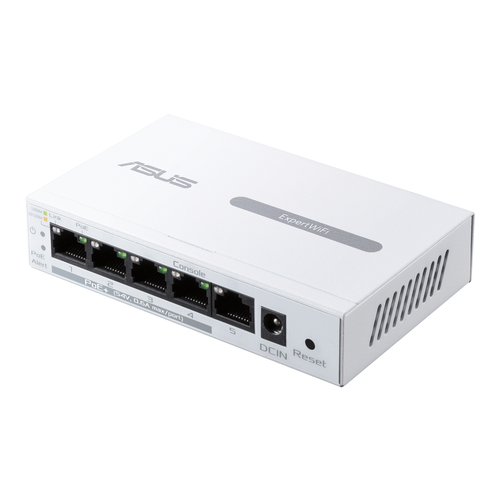

ASUS ExpertWiFi EBP15 Managed Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) White
Product Technical Specification
| Management features | |
| Switch type | Managed |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.1Q,IEEE 802.1p,IEEE 802.3ab,IEEE 802.3af,IEEE 802.3at,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| 10G support | No |
| Port mirroring | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Data transmission | |
| MAC address table | 8000 |
| Packet buffer memory | 4 |
| Security | |
| IGMP snooping | Yes |
| Security algorithms | SSL/TLS |
| Loop protection | Yes |
| Protocols | |
| Supported network protocols | IPv4 |
| Design | |
| Product colour | White |
| LED indicators | Activity,Link,PoE,Power,Speed |
| Performance | |
| Firmware upgradeable | Yes |
| Power | |
| Power source | DC |
| Power supply included | No |
| AC input voltage | 100 - 240 |
| AC input frequency | 50/60 |
| DC input voltage | 54 |
| Input current | 1.25 |
| Input voltage | 54 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) power per port | 30 |
| Total Power over Ethernet (PoE) budget | 60 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 70 |
| Operating relative humidity (H-H) | 10 - 95 |
| Storage relative humidity (H-H) | 5 - 95 |
| Weight & dimensions | |
| Width | 121 |
| Depth | 75 |
| Height | 26 |
| Weight | 248 |
| Packaging content | |
| Cables included | LAN (RJ-45) |
| Quick start guide | Yes |
| Packaging data | |
| AC adapter included | Yes |
| Package width | 231 |
| Package depth | 211 |
| Package height | 97 |
| Package weight | 1100 |
Delivery Options
Economy Delivery (UK)
Business Express
Your Business Network Expert Within Reach
The ASUS ExpertWiFi EBP15 offers versatile connectivity options. When connected to an ExpertWiFi router, the EBP15 can manage connected devices through ExpertWiFi AiMesh mode. When connected to a non-ExpertWiFi router, the EBP15 can still control connected devices using standalone mode. As businesses expand, owners can connect the wired router to EBP15 and access point for broader coverage, ensuring the scalability and extendability of ExpertWiFi.
For remote employees or small business owners, ExpertWiFi provides stable and reliable internet connections. And with comprehensive VPN protocols, users can access their networks with site-to-site VPNs for encrypted office or home network connections, easily and securely.
*Some features require specific product combinations for activation. Please refer to the product specifications for more details.
ExpertWiFi provides an all-new platform for innovative business services. Brand information and advertising can be promoted via the Guest Portal feature to engage with your customers in different ways.
*Some features require specific product combinations for activation. Please refer to the product specifications for more details.
ExpertWiFi networking products are prepared to scale to customer needs. Businesses can greatly expand the size of their network when using ExpertWiFi devices.
*Some features require specific product combinations for activation. Please refer to the product specifications for more details.
To help protect data and information, the ExpertWiFi series offers commercial-grade network security through a free subscription to ASUS AiProtection Pro and Safe Browsing features.
*Some features require specific product combinations for activation. Please refer to the product specifications for more details.
Fast, Versatile Connectivity to Accommodate the Business Scenarios
For a larger or multi-story space, you can build a strong and stable network by connecting the EBG15 gigabit VPN wired router and the EBP15 PoE+ switch to three EBA63 PoE access points. If you require additional network coverage, you can easily add more EBA63 units to your existing business network.
Maximize Performance with
ASUS ExpertWiFi Router and PoE AP
ASUS ExpertWiFi networking products are designed for easy scalability to fit a variety of SMB scenarios. By integrating ExpertWiFi series products, you can extend your business network coverage and access a complete suite of ExpertWiFi’s software features to boost your business operations. You can also connect the ExpertWiFi products with ASUS AiMesh extendable routers.
*The ASUS ExpertWiFi series is compatible with ASUS AiMesh products; however, the functionality of software features is subject to the capabilities of the primary router. The availability of some ExpertWiFi features may also depend on whether the AiMesh router supports them.
Standalone Mode
With the web-based user interface, you can manage your PoE+ switch easily and conveniently.
ExpertWiFi AiMesh Mode
Easy Settings for Your Business via the ExpertWiFi App
(with ExpertWiFi router only)
Suitable for Business Applications
The compact ExpertWiFi EBP15, at 121x75x26 mm, fits in the low voltage wiring box. Its SSL/TLS encryption ensures top security, while four PoE+ ports connect to devices like ASUS ExpertWiFi EBA63, IP cameras, IP phones, etc.
QoS management offers benefits such as traffic prioritization, bandwidth optimization, SLA compliance, improved user experience, efficient resource allocation and customization options. These advantages contribute to a well-optimized and high-performing network infrastructure that can meet the diverse needs of modern businesses and ensure a smooth user experience for critical applications.
Environment Certification
ASUS ExpertWiFi is stringently tested to meet the requirements of world-leading sustainability certifications. These tests include a comprehensive database of up-to-date criteria, independent verification and a structured system for continuous improvement.
Eco-Friendly Packaging
All ExpertWiFi products come with environmentally friendly packaging sourced from FSC-certified responsible forestry, and they benefit from more active management of the use of chemicals in the production process, to improve the recycling of packaging and substances, and to reduce environmental impact.
