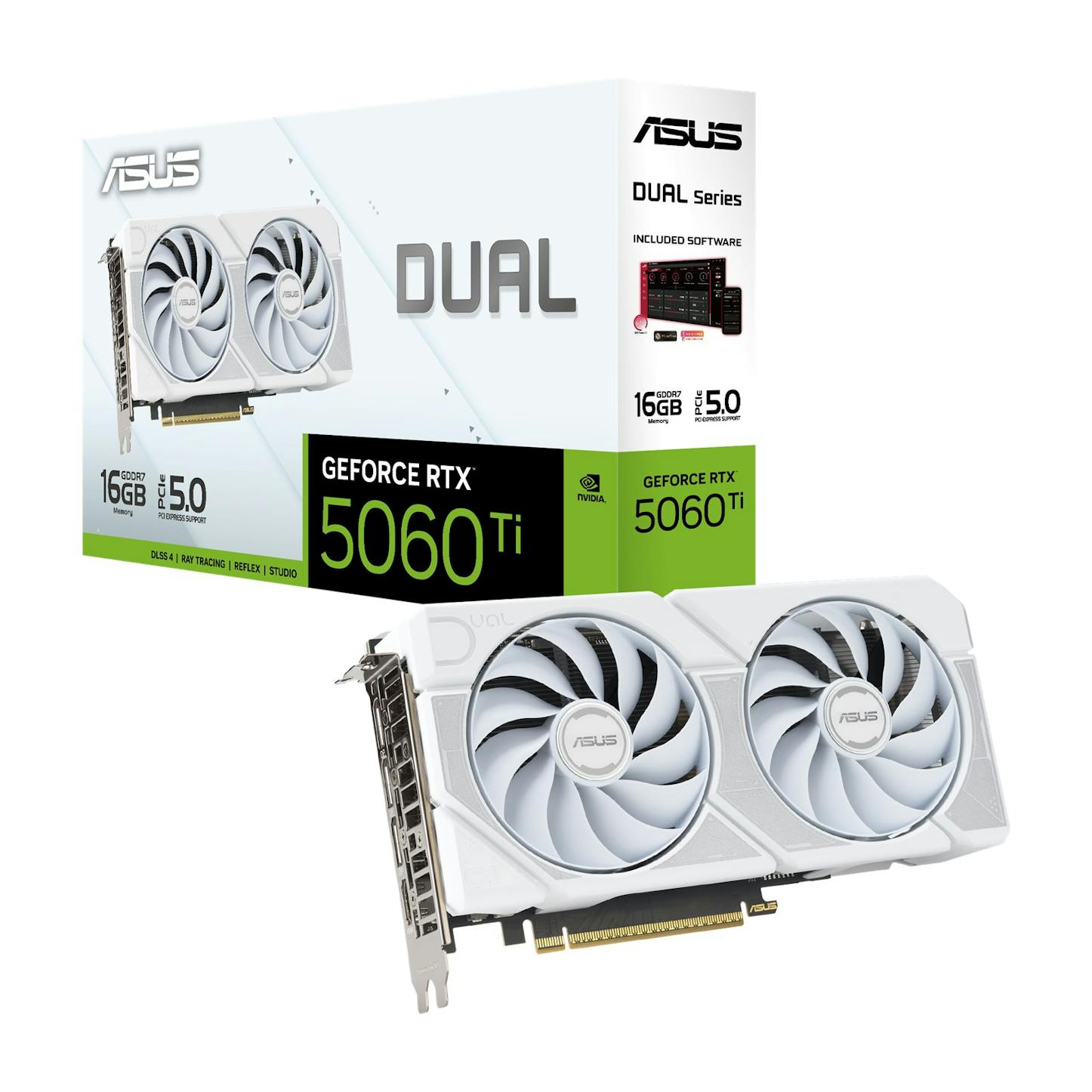

Asus GeForce RTX 5060 Ti Dual White 16GB GDDR7 PCI-Express Graphics Card
Product Technical Specification
| Water Cooling | |
| Watercooling | No |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | NVIDIA G-SYNC |
| Lighting | |
| Lighting / RGB | No |
| Colour | |
| Primary Colour | White |
| Dimensions | |
| Length / Depth | 229 mm |
| Width | 120 mm |
| Height | 50 mm |
| Expansion Slots | |
| Expansion Slots Required | 2.5 Slots |
| Graphics Card | |
| GPU Series | RTX 50 Series |
| Cooling | |
| Number of GPU Fans | 2 |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2407 MHz |
| Max. GPU Clock (Boost) | 2602 MHz |
| Max. Memory Clock | 28000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (3x) |
| Internal Ports | |
| Required Power Connectors | 8-pin PCIe (1x) |
| GPU Model | |
| GPU Series Name | NVIDIA GeForce RTX 5060 Ti 16GB |
| Graphics Chip | GB206-300 |
| Manufacturing Process | 5 nm |
| Shader Units | 4608 |
| Tensor Cores | 144 |
| Raytracing Cores / Ray Acceleratorss | 36 |
| GPU Memory Type | GDDR7 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 128 |
| GPU Memory Bandwidth (GB/s) | 448 |
| GPU Effective Memory Clock (MHz) | 1750 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
| DUAL-RTX5060TI-16G-WHITE Specifications | |
|---|---|
| Graphics Engine | NVIDIA® GeForce RTX™ 5060 Ti |
| CUDA Cores | 4608 |
| OpenGL® | OpenGL® 4.6 |
| Engine Clock | OC mode: 2602 MHz Default mode: 2572 MHz (Boost Clock) |
| Memory Interface | 128 bit |
| Video Memory | 16 GB GDDR7 |
| Memory Clock | 28 Gbps |
| AI Performance | 758 |
| Power Connector | 1 x 8-pin |
| I/O Ports | 1 x HDMI 2.1b 3 x DisplayPort 2.1b |
| HDCP Compliant | HDCP 2.3 |
| Digital Max. Resolution | 7680 x 4320 |
| Maximum Display Support | 4 |
| NVLink/Crossfire Support | NA |
| Recommended PSU | 550W |
| Bus Standard | PCIe 5.0 |
| Package Contents | 1 x Speedsetup Manual 1 x Thank You Card |
| Software Bundled | ASUS GPU Tweak III, MuseTree, GeForce Game Ready Driver, Studio Driver (download from support site) |
| Slot | 2.5 slot |
| Card Dimensions | 229 x 120 x 50 mm 9.02 x 4.72 x 1.97 inch |
| Color Box Dimensions | 364 x 217 x 66 mm |
| Weight (Card) | 0.656 kg |
| Weight (with packaging) | 1.116 kg |
| Certifications | FCC, CE, C-TICK, BSMI, KCC, VCCI |
| Notes |
- Wattage recommendation based on fully overclocked GPU/CPU. - Use “Choose By Wattage” on ASUS PSU site: ASUS PSU Selector - Specifications subject to change. Check with your supplier. - Maximum Display Support refers to simultaneous display setup. |
