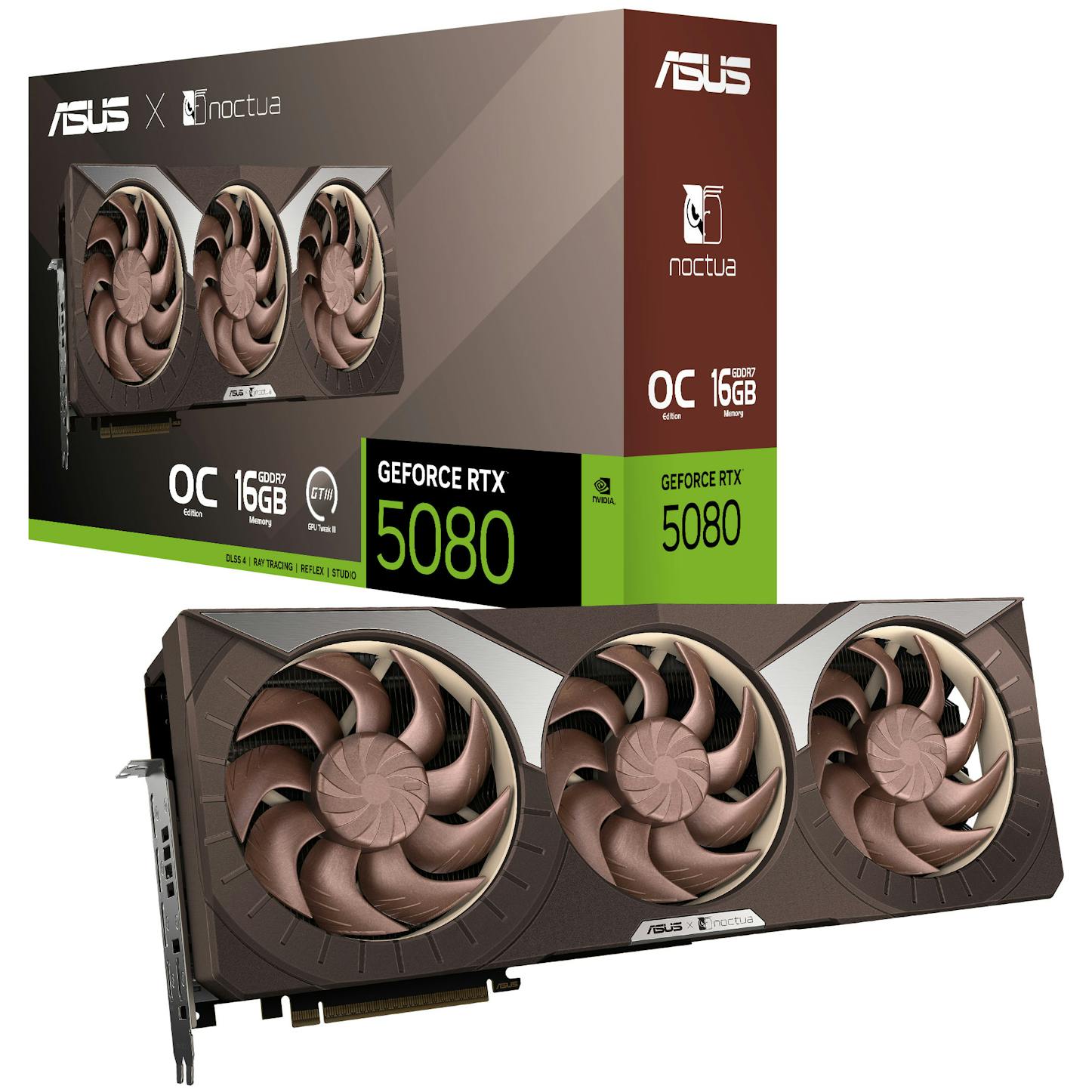

Asus GeForce RTX 5080 Noctua OC 16GB GDDR7 PCI-Express Graphics Card
Product Technical Specification
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | NVIDIA G-SYNC |
| Dimensions | |
| Length / Depth | 80 mm |
| Width | 385 mm |
| Height | 151 mm |
| Colour | |
| Primary Colour | Brown |
| Water Cooling | |
| Watercooling | No |
| Lighting | |
| Lighting / RGB | No |
| Cooling | |
| Number of GPU Fans | 3 |
| Graphics Card | |
| GPU Series | RTX 50 Series |
| Expansion Slots | |
| Expansion Slots Required | 4 Slots |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2295 MHz |
| Max. GPU Clock (Boost) | 2700 MHz |
| Max. Memory Clock | 30000 MHz |
| External Ports | |
| Display Connectors | HDMI (2x), Display Port (3x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| Internal Ports | |
| Required Power Connectors | 16-Pin PCIe 5.0 - 12v-2x6 (1x) |
| GPU Model | |
| GPU Series Name | NVIDIA GeForce RTX 5080 |
| Graphics Chip | GB203-400 |
| Manufacturing Process | 5 nm |
| Shader Units | 10752 |
| Tensor Cores | 336 |
| Raytracing Cores / Ray Acceleratorss | 84 |
| GPU Memory Type | GDDR7 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 256 |
| GPU Memory Bandwidth (GB/s) | 960 |
| GPU Effective Memory Clock (MHz) | 2366 |
Delivery Options
Economy Delivery (UK)
Business Express
Enjoy AAA gaming and unparalleled performance across all your creative workloads, courtesy of the ASUS GeForce RTX 5080 Noctua OC Edition 16GB GDDR7 Graphics Card. Built upon NVIDIA RTX Blackwell with 10752 CUDA cores, this GPU is primed to handle all your graphically demanding applications. Onboard support for ray tracing and DLSS 4.0 with multi-frame generation renders your games in cinematic quality, complete with silky-smooth frame rates. All of which ensures you see every second of the action as and when it happens around you, providing that much-needed competitive edge. What’s more, the onboard Noctua NF-A12 fans, large vapour chamber, and custom PCB work in tandem to keep excess heat to a minimum, meaning this graphics card remains cool, even under heavy loads.
ASUS GeForce RTX 5080 Noctua OC Edition 16GB GDDR7 Graphics Card at a Glance:
- Blackwell RTX architecture
- 10752 CUDA cores – fourth-gen RT and fifth-gen Tensor cores
- 2700MHz boost clock speed
- 16GB GDDR7 VRAM
- 256-bit interface
- PCIe 5.0 connectivity
AAA Performance
The ASUS GeForce RTX 5080 Noctua OC Edition 16GB GDDR7 Graphics Card is the ultimate upgrade for gamers, looking to achieve AAA performance in all their favourite games. Powered by NVIDIA RTX Blackwell architecture with 10752 CUDA cores, this graphics card renders your gaming worlds at record speeds in stunning high definition. Take advantage of onboard support for ray tracing and DLSS 4.0 with multi-frame generation to unlock cinematic visuals, featuring realistic lighting and shadows, along with buttery-smooth frame rates.
Equipped with 16GB of GDDR7 VRAM, the ASUS RTX 5080 maintains peak performance, ensuring incredible efficiency and seamless multitasking, even as you game on high settings at 4K.
Built to Last
To deliver unmatched reliability, the ASUS GeForce RTX 5080 Noctua OC Edition 16GB GDDR7 Graphics Card has been engineered utilising only the finest materials. ASUS GPU Guard, a durable adhesive, has been applied to all four corners of this GPU, reducing the risk of any unwanted cracks. The protective backplate reinforces the PCB while adding extra structural rigidity.
In addition to all of this, a phase-change thermal pad has been applied to the ASUS GeForce RTX 5080 Noctua OC Edition 16GB GDDR7 Graphics Card. This pad has been melted to fill the gaps between the GPU and thermal module, providing outstanding thermal efficiency while enhancing overall component longevity.
Powerful Onboard Cooling
Keeping the ASUS GeForce RTX 5080 Noctua OC Edition 16GB GDDR7 Graphics Card cool is the comprehensive thermal solution, harnessing powerful Noctua NF-12x25 G2 fans. These PWM fans utilise Sterrox liquid-crystal polymer (LCP) impellers and an ultra-tight 0.5mm tip clearance to help concentrate airflow, facilitating rapid heat dissipation. Onboard 0dB technology means these fans dynamically adjust to your workloads. When the ASUS RTX 5080 is idle, all three fans stop spinning, letting you enjoy whisper-quiet operation when completing light tasks. However, when the gameplay ramps up and temperatures increase, the fans automatically begin spinning across, delivering incredible cooling as and when you need it most.
The large integrated vapour chamber and heatsink draws excess heat away from the graphical processor and VRAM modules, which is quickly expelled via the triple Noctua fans. Plus, the vented backplate enhances airflow for better heat dissipation, helping to protect against thermal throttling or overheating.
| Model | RTX5080-O16G-NOCTUA |
|---|---|
| Graphic Engine | NVIDIA® GeForce RTX™ 5080 |
| AI Performance | 1801 TOPs |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL® 4.6 |
| Video Memory | 16GB GDDR7 |
| Engine Clock | OC mode: 2730 MHz Default mode: 2700 MHz (Boost Clock) |
| CUDA Cores | 10752 |
| Memory Speed | 30 Gbps |
| Memory Interface | 256-bit |
| Resolution | Digital Max Resolution: 7680 x 4320 |
| Interface |
2 x HDMI 2.1b (Native) 3 x DisplayPort 2.1b (Native) |
| HDCP Support | Yes (2.3) |
| Maximum Display Support | 4 |
| NVLink / Crossfire Support | No |
| Accessories |
1 x Speedsetup Manual 1 x Graphics Card Holder 1 x Thank You Card 1 x Adapter Cable (1 to 3) 1 x ASUS Velcro Hook & Loop |
| Software |
ASUS GPU Tweak III MuseTree GeForce Game Ready Driver Studio Driver Download from support site |
| Dimensions | 385 × 151 × 80 mm 15.16 × 5.94 × 3.15 inch |
| Recommended PSU | 850W |
| Power Connectors | 1 x 16-pin |
| Slot | 4 Slot |
| Notes |
* Wattage recommendation is based on fully overclocked system. Use “Choose By Wattage” on ASUS PSU page: ASUS PSU Tool * Specifications subject to change. Check supplier for availability. * Maximum display support refers to simultaneous display setup. |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | NVIDIA G-SYNC |
| Dimensions | |
| Length / Depth | 80 mm |
| Width | 385 mm |
| Height | 151 mm |
| Colour | |
| Primary Colour | Brown |
| Water Cooling | |
| Watercooling | No |
| Lighting | |
| Lighting / RGB | No |
| Cooling | |
| Number of GPU Fans | 3 |
| Graphics Card | |
| GPU Series | RTX 50 Series |
| Expansion Slots | |
| Expansion Slots Required | 4 Slots |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2295 MHz |
| Max. GPU Clock (Boost) | 2700 MHz |
| Max. Memory Clock | 30000 MHz |
| External Ports | |
| Display Connectors | HDMI (2x), Display Port (3x) |
| Display Connector Standards | HDMI 2.1, DisplayPort 2.1 |
| Internal Ports | |
| Required Power Connectors | 16-Pin PCIe 5.0 - 12v-2x6 (1x) |
| GPU Model | |
| GPU Series Name | NVIDIA GeForce RTX 5080 |
| Graphics Chip | GB203-400 |
| Manufacturing Process | 5 nm |
| Shader Units | 10752 |
| Tensor Cores | 336 |
| Raytracing Cores / Ray Acceleratorss | 84 |
| GPU Memory Type | GDDR7 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 256 |
| GPU Memory Bandwidth (GB/s) | 960 |
| GPU Effective Memory Clock (MHz) | 2366 |
