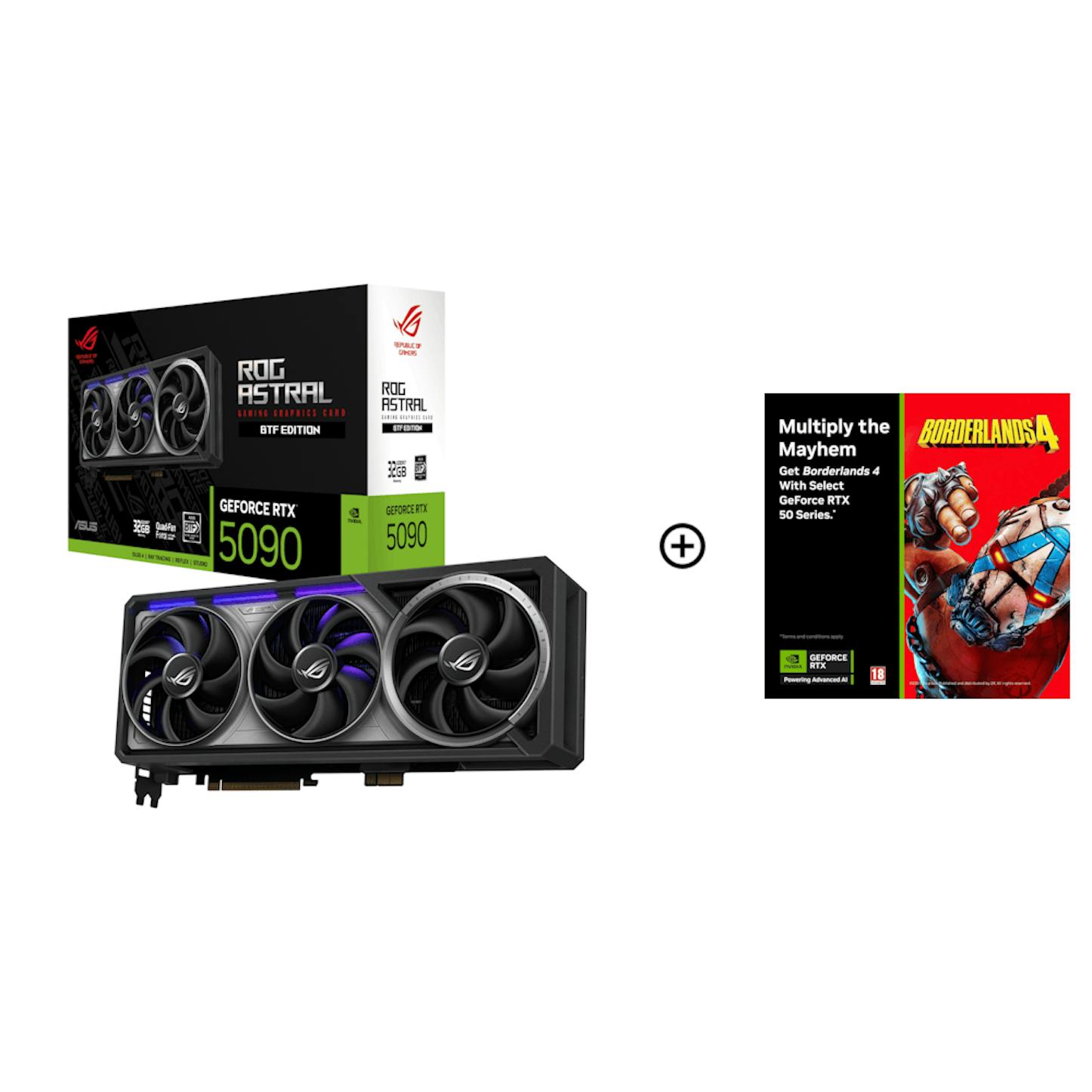

Asus GeForce RTX 5090 ROG Astral BTF 32GB GDDR7 PCI-Express Graphics Card
Product Technical Specification
| Water Cooling | |
| Watercooling | No |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | NVIDIA G-SYNC |
| Lighting | |
| Lighting / RGB | Yes |
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 357.6 mm |
| Width | 149.3 mm |
| Height | 76 mm |
| Expansion Slots | |
| Expansion Slots Required | 4 Slots |
| Graphics Card | |
| GPU Series | RTX 50 Series |
| Cooling | |
| Number of GPU Fans | 4 |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2017 MHz |
| Max. GPU Clock (Boost) | 2467 MHz |
| Max. Memory Clock | 28000 MHz |
| External Ports | |
| Display Connectors | HDMI (2x), Display Port (3x) |
| Internal Ports | |
| Required Power Connectors | 16-Pin PCIe 5.0 - 12v-2x6 (1x) |
| GPU Model | |
| GPU Series Name | NVIDIA GeForce RTX 5090 |
| Graphics Chip | GB202-300 |
| Manufacturing Process | 5 nm |
| Shader Units | 21760 |
| Tensor Cores | 680 |
| Raytracing Cores / Ray Acceleratorss | 170 |
| GPU Memory Type | GDDR7 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 32 |
| GPU Memory Interface (bit) | 512 |
| GPU Memory Bandwidth (GB/s) | 1792 |
| GPU Effective Memory Clock (MHz) | 2209 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
ROG-ASTRAL-RTX5090-32G-BTF-GAMING Specifications
| Model name | ROG-ASTRAL-RTX5090-32G-BTF-GAMING |
|---|---|
| Graphics Engine | NVIDIA® GeForce RTX™ 5090 |
| CUDA cores | 21760 |
| OpenGL® | OpenGL® 4.6 |
| Engine Clock | OC mode: 2467 MHz Default mode: 2437 MHz (Boost clock) |
| Memory Interface | 512 bit |
| Video Memory | 32GB GDDR7 |
| Memory Speed | 28 Gbps |
| AI Performance | 3394 TOPs |
| Power Connector | 1 x 16-pin & Graphics card high-power (GC-HPWR) gold finger |
| I/O | 2 x Native HDMI 2.1b 3 x Native DisplayPort 2.1b |
| HDCP Compliant | HDCP 2.3 |
| Digital Max. Resolution | 7680 x 4320 |
| Maximum Display Support | 4 |
| NVLink/ Crossfire Support | NA |
| Recommended PSU | 1000W |
| Bus Standard | PCIE 5.0 |
| Package Contents |
1 x Speedsetup Manual 1 x ROG Graphics Card Holder 1 x ROG Velcro Hook & Loop 1 x ROG Magnet 1 x ROG Graphics Card Keycap 1 x ROG PCB Ruler 1 x Thank You Card 1 x Adapter Cable (1 to 4) |
| Software Bundled | ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site. |
| Slot | 3.8 slot |
| Dimension | 357.6 x 149.3 x 76 mm 14.1 x 5.9 x 3 inch |
| Color Box (mm) | 420 x 226 x 126 mm |
| Weight (Single Card) | 3.01 kg |
| Product Weight (with packing) | 4.45 kg |
| Note |
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page:
ASUS PSU Page * All specifications are subject to change without notice. * Maximum Display Support is specifically applied to simultaneous display situation. |
| Regulation |
■S-AT2-001 GreenASUS Hazardous Substances Free (HSF) Technical Standard (Global RoHs, China RoHS, EU REACH, J-MOSS) ■WEEE |
| Certifications | ■ FCC ■ CE ■ C-TICK ■ BSMI ■ KCC ■ VCCI |
