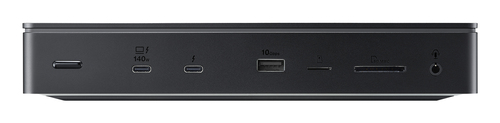

ASUS Master Thunderbolt 5 Dock DC510 Wired Black
Product Technical Specification
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 140 |
| Thunderbolt 5 ports quantity | 3 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 2500 |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash),SD |
| Number of storage drives supported | 1 |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| Supported SSD sizes | M.2 |
| Data transfer rate | 80 |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 |
| Number of displays supported | 3 |
| Maximum refresh rate | 144 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| On/off switch | Yes |
| Charging function | Yes |
| Power | |
| Power source type | DC |
| Input current | 9 |
| Power cable length | 1 |
| Software | |
| Windows operating systems supported | Windows 10,Windows 11 |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Width | 220 |
| Depth | 96.7 |
| Height | 38.1 |
| Weight | 765 |
| Packaging data | |
| Quantity per pack | 1 |
| Packaging content | |
| Warranty card | Yes |
| Cables included | AC |
| AC adapter included | Yes |
| Manual | Yes |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
Unleash lightning-fast potential
ASUS Master Thunderbolt™ 5 Dock is a 13-in-1 dock designed for creators, giving them the ability to turn their laptop into a powerful workstation with just a single cable connection. The dock is able to support up to three 4K displays, super 80Gbps data transfer speed via three Thunderbolt 5, read two memory cards, and even includes an SSD slot for additional storage. Built-in LEDs on the underside of the device offer adjustable ambient lighting to add a futuristic aesthetic to any creative space.
| Ports & interfaces | |
| Connectivity technology | Wired |
| Host interface | Thunderbolt 5 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery revision | 3.1 |
| USB Power Delivery up to | 140 |
| Thunderbolt 5 ports quantity | 3 |
| Microphone in | No |
| Combo headphone/mic port | Yes |
| DC-in jack | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 2500 |
| Performance | |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash),SD |
| Number of storage drives supported | 1 |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD interface | PCI Express 4.0 |
| NVMe | Yes |
| Supported SSD sizes | M.2 |
| Data transfer rate | 80 |
| HD type | 8K Ultra HD |
| Maximum digital resolution | 7680 x 4320 |
| Number of displays supported | 3 |
| Maximum refresh rate | 144 |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| On/off switch | Yes |
| Charging function | Yes |
| Power | |
| Power source type | DC |
| Input current | 9 |
| Power cable length | 1 |
| Software | |
| Windows operating systems supported | Windows 10,Windows 11 |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Width | 220 |
| Depth | 96.7 |
| Height | 38.1 |
| Weight | 765 |
| Packaging data | |
| Quantity per pack | 1 |
| Packaging content | |
| Warranty card | Yes |
| Cables included | AC |
| AC adapter included | Yes |
| Manual | Yes |
