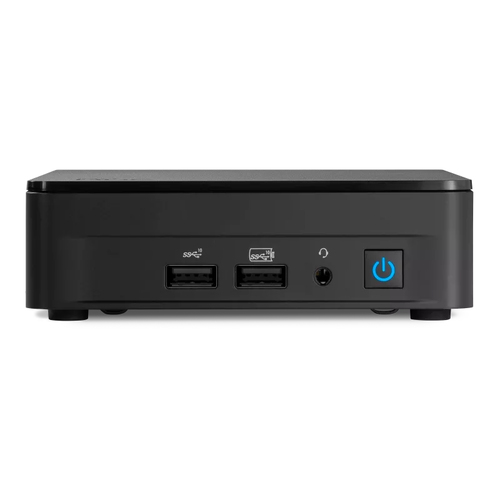

ASUS NUC 13 RNUC13ANKI500000I UCFF Black i5-1340P
Product Technical Specification
| Processor | |
| Processor manufacturer | Intel |
| Processor family | Intel Core i5 |
| Processor generation | Intel Core i5-13xxx |
| Processor model | i5-1340P |
| Processor cores | 12 |
| Processor threads | 16 |
| Processor boost frequency | 4.6 |
| Performance cores | 4 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 4.6 |
| Efficient-core Max Turbo Frequency | 3.4 |
| Processor cache | 12 |
| Memory | |
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 |
| Supported memory clock speeds | 3200 |
| Supported memory types | DDR4-SDRAM |
| Memory voltage | 1.2 |
| ECC | No |
| Storage | |
| Supported storage drive types | SSD |
| Storage drive sizes supported | M.2 |
| SSD form factor | M.2 |
| NVMe | Yes |
| Number of storage drives supported | 2 |
| Graphics | |
| On-board graphics card | Yes |
| Graphics card family | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| Number of displays supported | 4 |
| Audio | |
| Built-in speaker(s) | No |
| Network | |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6E AX211 |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| LAN controller | Intel I226-V |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Ports & interfaces | |
| USB 2.0 ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| Combo headphone/mic port | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Serial port via internal header | No |
| Thunderbolt 4 ports quantity | 2 |
| DC-in jack | Yes |
| Expansion slots | |
| PCI Express slots version | 4.0 |
| Design | |
| Chassis type | UCFF |
| Product colour | Black |
| Cooling type | Active |
| On/off switch | Yes |
| LED indicators | Yes |
| VESA mounting | Yes |
| Product type | Mini PC (<= 3L) barebone |
| Performance | |
| Motherboard form factor | UCFF |
| Number of processors supported | 1 |
| Software | |
| Windows operating systems supported | Windows 11 Home,Windows 11 Pro,Windows 10 IoT Enterprise |
| Linux operating systems supported | Yes |
| Power | |
| Power supply type | External AC adapter |
| Weight & dimensions | |
| Width | 117 |
| Depth | 112 |
| Height | 37 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
NUC 13 Pro Mini PCs, Kits, and Boards offer the combination of size, performance, and reliability you need to drive modern business.
It all starts with 13th Gen Intel Core processors that deliver outsized performance in a 4x4 form factor, with up to 14 processor cores (6P+8E) and up to 64GB dual-channel DDR4 memory. Select SKUs also come with Intel vPro® Enterprise, which provides comprehensive security, enterprise-grade stability, and hardware-based remote management.
The NUC Pro Software Suite (NPSS) helps to ensure digital signage applications keep running during any unexpected system failures. Businesses also benefit from advanced features including power control, hardware alarm clock, hardware KVM, boot redirection, beyond firewall support, cloud-based manageability, remote PC remedy, and unattended system control.
To provide an eco-friendly foundation for businesses, NUC 13 Pro Mini PCs and Kits are upgradable, reparable, and reusable. Every system is qualified for 24x7 operation.
