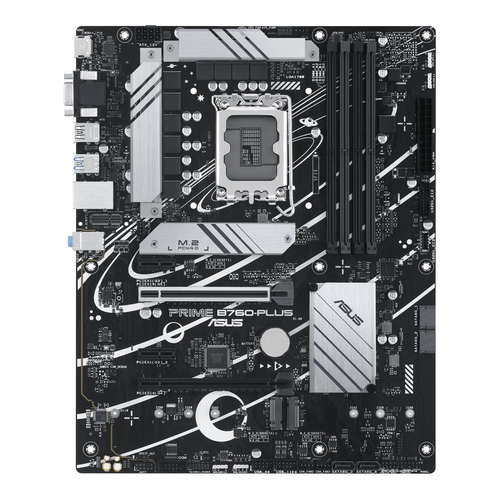

ASUS PRIME B760-PLUS Intel B760 LGA 1700 ATX

Manufacturer: Asus | Model: 90MB1EF0-M1EAY0 | Product ID: 1778
£137.75 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Processor
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel Celeron,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9,Intel Pentium Gold
Maximum number of SMP processors1
Supported processor socketsLGA 1700
Memory
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Non-ECCYes
Supported memory clock speeds4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7200
Maximum internal memory192
Unbuffered memoryYes
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2,SATA III
Number of HDDs supported4
Number of storage drives supported7
RAID supportYes
RAID levels0,1,5,10
Graphics
Parallel processing technology supportNot supported
Internal I/O
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors3
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
Number of COM connectors1
TPM connectorYes
Thunderbolt headers1
12V power connectorYes
RGB LED pin headerYes
Rear panel I/O ports
USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs1
Line-inYes
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet,Fast Ethernet,Gigabit Ethernet
Wi-FiNo
Features
Motherboard chipsetIntel B760
Audio output channels7.1
Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 10 x64,Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots2
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3
BIOS
BIOS typeUEFI AMI
BIOS memory size128
Packaging data
Package width328
Package depth266
Package height53
Package weight1200
Weight & dimensions
Width305
Depth244
Height36
Packaging content
Cables includedSATA
Other features
Weight760

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
B760-PLUS
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Gen Intel® Core™ Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.

Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.

Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse

Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a subdued aesthetic touch.
