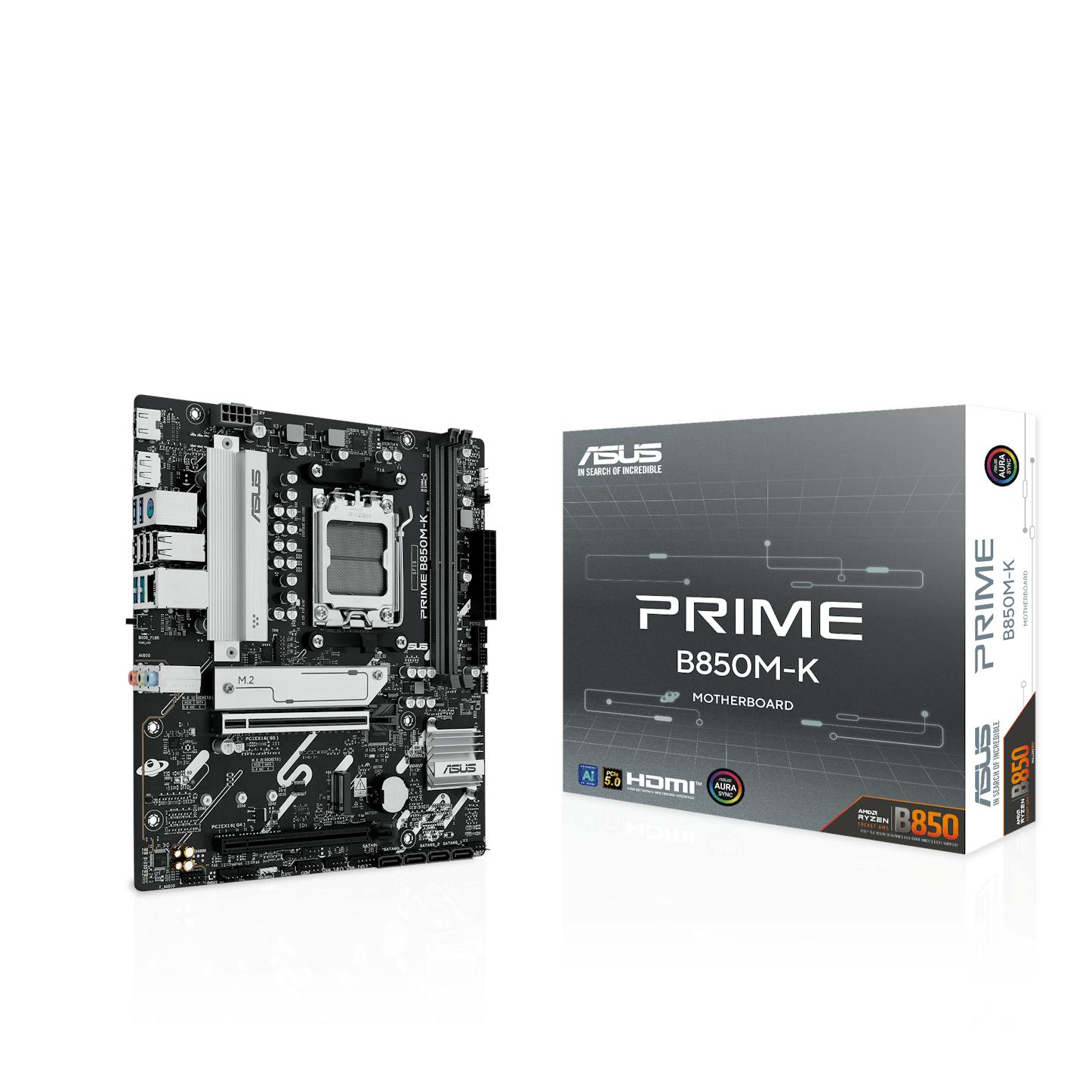

Asus Prime B850M-K (Socket AM5) DDR5 Micro-ATX Motherboard
Product Technical Specification
| Form Factor | |
| Motherboard formfactor | Micro-ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 2.5 Gbit/s |
| Wi-Fi / Bluetooth | No |
| Colour | |
| Primary Colour | Black |
| Lighting | |
| Lighting / RGB | Yes |
| Motherboard | |
| Motherboard Chipset | AMD B850 |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Fan Header | |
| 4 Pin Fan Connectors | 4 |
| Memory | |
| Max. Memory | 128 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Memory slots | 2x |
| Internal Ports | |
| CPU Power Supply | 1x 8-Pin |
Delivery Options
Economy Delivery (UK)
Business Express
| Component | Specification |
|---|---|
| Note | The specifications are subject to change without notice. |
| CPU | AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors * Refer to support list. |
| Chipset | AMD B850 Chipset |
| Memory |
2 x DIMM slots, Max. 128GB, DDR5 Supports: - 8200+MT/s(OC) with Ryzen™ 9000 - 8400+MT/s(OC) with Ryzen™ 8000 - 8000+MT/s(OC) with Ryzen™ 7000 ECC and Non-ECC, Un-buffered DIMM Dual Channel Architecture Supports AMD EXPO™, ASUS AEMP * See support list for memory compatibility and configuration details. |
| Graphics |
1 x DisplayPort (max. 8K@30Hz, DP 1.4) 1 x HDMI™ port (max. 4K@60Hz, HDMI 2.1) * Specs may vary by CPU. See AMD CPU specs. |
| Expansion Slots |
Ryzen™ 9000 & 7000: 1 x PCIe 5.0 x16 Ryzen™ 8000: 1 x PCIe 4.0 x16 (x8/x4) B850 Chipset: 1 x PCIe 4.0 x16 (x4) * Refer to bifurcation table. |
| Storage |
2 x M.2 slots 4 x SATA 6Gb/s ports Ryzen™ 9000 & 7000: M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4 Ryzen™ 8000: M.2_1 PCIe 4.0 x4, M.2_2 PCIe 4.0 x4/x2 AMD RAIDXpert2: RAID 0/1/5/10 (9000), RAID 0/1 (8000), RAID 0/1/10 (7000) |
| Ethernet | 1 x Realtek 2.5Gb Ethernet, ASUS LANGuard |
| USB |
Rear: 2 x USB 10Gbps (Type-A), 2 x USB 5Gbps, 4 x USB 2.0 Front: 1 x USB-C 5Gbps, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) * USB-C PD max: 5V/3A |
| Audio |
Realtek 7.1 Surround HD Audio CODEC - Jack-detection, Multi-streaming, Front Panel Jack-retasking - Up to 24-Bit/192 kHz playback - Audio shielding, premium capacitors, dedicated PCB layers * Requires HD audio module chassis for 7.1 output. |
| Back Panel I/O |
2 x USB 10Gbps, 2 x USB 5Gbps, 4 x USB 2.0 1 x DisplayPort, 1 x HDMI 1 x 2.5Gb LAN, 3 x Audio jacks 1 x BIOS FlashBack™, 1 x PS/2 |
| Internal I/O |
Cooling: 1 x CPU Fan, 3 x Chassis Fan headers Power: 1 x 24-pin, 1 x 8-pin +12V CPU Storage: 2 x M.2, 4 x SATA USB: 1 x USB-C 5Gbps, 1 x USB 5Gbps header, 2 x USB 2.0 headers Misc: 3 x ARGB Gen 2, Clear CMOS, COM, F_AUDIO, S/PDIF, SPI TPM, Front Panel header |
| Special Features |
ASUS 5X PROTECTION III: DIGI+ VRM, LANGuard, Overvoltage Protection, SafeSlot, Stainless I/O ASUS Q-Design: Q-DIMM, Q-LED Core, Q-Slot, Q-Dashboard Thermal: M.2 heatsink, VRM heatsink DIY: BIOS FlashBack™, LED, SafeSlot Aura Sync: 3 x ARGB Gen 2 |
| Software Features |
Armoury Crate: Aura Creator, Aura Sync, Fan Xpert 2+ AI Advisor, DriverHub, CPU-Z, TurboV Core Creative Cloud (Trial), Norton 360 (60 Days), WinRAR (Trial) UEFI BIOS: CrashFree, EZ Flash 3, MyHotkey, EZ Mode |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories |
2 x SATA cables 1 x I/O Shield 1 x M.2 Rubber Package 1 x M.2 Screw package 1 x Quick Start Guide |
| Operating System | Windows® 11, Windows® 10 64-bit |
| Form Factor | micro-ATX, 9.6 x 8.7 inches (24.4 x 22.1 cm) |
