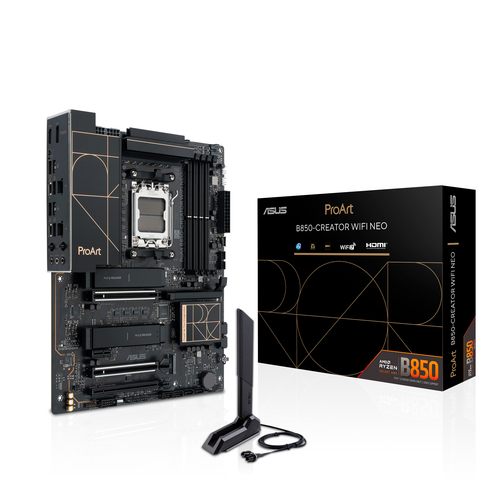

ASUS PROART B850-CREATOR WIFI NEO AMD B850 Socket AM5 ATX

Manufacturer: Asus | Model: 90MB1P60-M0EAY0 | Product ID: 4487
£305.12 (inc. VAT)
7 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Processor
Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series,AMD Ryzen 8000 Series,AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Memory
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & non-ECC
Supported memory clock speed (max)9000
Maximum internal memory256
Unbuffered memoryYes
Maximum internal memory per slot64
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2,SATA III
Number of HDDs supported4
Number of storage drives supported7
RAID supportYes
RAID levels0,1,5,10
Graphics
Parallel processing technology supportNot supported
On-board graphics cardNo
Maximum resolution7680 x 4320
Internal I/O
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors2
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)2
Number of COM connectors1
TPM connectorYes
Thunderbolt headers1
Number of water pump connectors1
Number of temperature sensor headers1
RGB LED pin headerYes
Number of RGB LED pin headers3
Rear panel I/O ports
USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
Ethernet LAN (RJ-45) ports2
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs1
Line-inYes
Microphone inYes
WiFi-AP antenna jack2
Network
Ethernet LANYes
Ethernet interface type5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
WLAN controller modelRealtek RTL8922AE
BluetoothYes
Features
Motherboard chipsetAMD B850
Audio chipRealtek ALC1220P
Audio output channels7.1
Product colourBlack
Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 11
Expansion slots
PCI Express x4 (Gen 1.x) slots1
PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots2
Number of M.2 (M) slots3
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation5.0
3rd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
BIOS
BIOS typeUEFI AMI
BIOS memory size512
BIOS flashback buttonYes
Packaging data
Package width353
Package depth273
Package height68
Package weight2140
Weight & dimensions
Width305
Depth244
Height48
Packaging content
Cables includedSATA
Antenna includedYes
Screws includedYes
Other features
Weight1326
Quick installation guideYes

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 16th Aug 2026 to Wed 19th Aug 2026
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Sat 15th Aug 2026 to Mon 17th Aug 2026
View all Delivery Options & International Rates
The ProArt B850-Creator WiFi Neo is designed to empower creators at every level, delivering optimized performance for the latest AMD Ryzen™ 9000, 8000, and 7000 Series processors, as well as AMD EPYC™ 4005 Series CPUs. Featuring a robust 14+2+1 power stage design, DDR5 support, PCIe® 5.0 expansion, and ultrafast connectivity—including dual 5G Ethernet and WiFi 7—it provides a reliable foundation for demanding creative workloads.

With a refined aesthetic that reflects a professional and elegant design philosophy, the motherboard showcases layered black tones accented with metallic gold details. This platform seamlessly combines performance, connectivity, and design, delivering the power required for today's advanced AI PC applications.
Processor
Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series,AMD Ryzen 8000 Series,AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Memory
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & non-ECC
Supported memory clock speed (max)9000
Maximum internal memory256
Unbuffered memoryYes
Maximum internal memory per slot64
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2,SATA III
Number of HDDs supported4
Number of storage drives supported7
RAID supportYes
RAID levels0,1,5,10
Graphics
Parallel processing technology supportNot supported
On-board graphics cardNo
Maximum resolution7680 x 4320
Internal I/O
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors2
Number of chassis fan connectors4
Chassis intrusion connectorYes
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)2
Number of COM connectors1
TPM connectorYes
Thunderbolt headers1
Number of water pump connectors1
Number of temperature sensor headers1
RGB LED pin headerYes
Number of RGB LED pin headers3
Rear panel I/O ports
USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity2
Ethernet LAN (RJ-45) ports2
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version1.4
Headphone outputs1
Line-inYes
Microphone inYes
WiFi-AP antenna jack2
Network
Ethernet LANYes
Ethernet interface type5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
WLAN controller modelRealtek RTL8922AE
BluetoothYes
Features
Motherboard chipsetAMD B850
Audio chipRealtek ALC1220P
Audio output channels7.1
Product colourBlack
Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 11
Expansion slots
PCI Express x4 (Gen 1.x) slots1
PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots2
Number of M.2 (M) slots3
1st M.2 largest key size2280
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size2280
2nd M.2 highest PCI Express generation5.0
3rd M.2 largest key size2280
3rd M.2 highest PCI Express generation4.0
BIOS
BIOS typeUEFI AMI
BIOS memory size512
BIOS flashback buttonYes
Packaging data
Package width353
Package depth273
Package height68
Package weight2140
Weight & dimensions
Width305
Depth244
Height48
Packaging content
Cables includedSATA
Antenna includedYes
Screws includedYes
Other features
Weight1326
Quick installation guideYes
