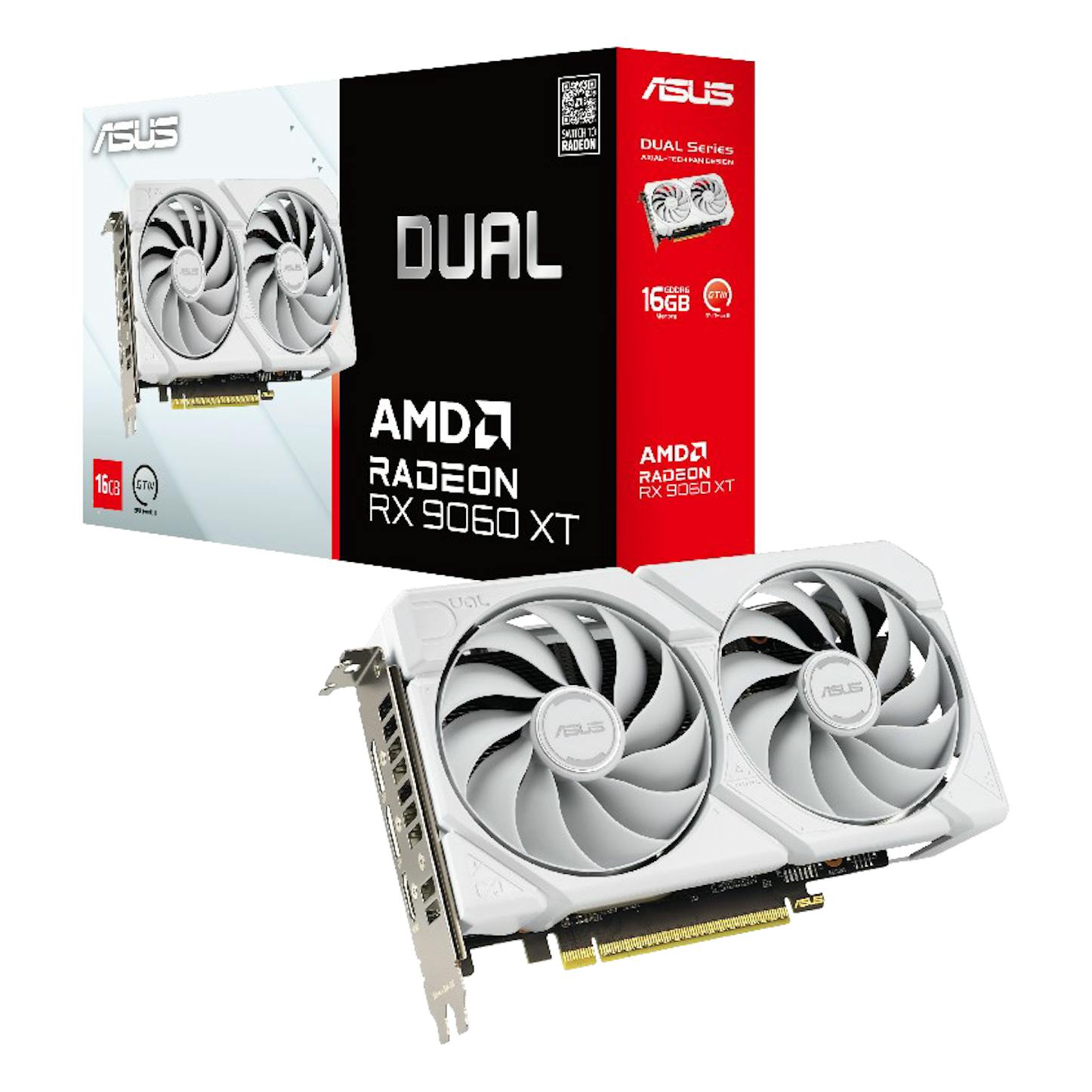

Asus Radeon RX 9060 XT Dual White 16GB GDDR6 PCI-Express Graphics Card
Product Technical Specification
| Water Cooling | |
| Watercooling | No |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | AMD Freesync |
| Lighting | |
| Lighting / RGB | No |
| Colour | |
| Primary Colour | White |
| Dimensions | |
| Length / Depth | 202 mm |
| Width | 120 mm |
| Height | 49 mm |
| Expansion Slots | |
| Expansion Slots Required | 2.5 Slots |
| Graphics Card | |
| GPU Series | RX 9000 Series |
| Cooling | |
| Number of GPU Fans | 2 |
| Clock Speeds | |
| Max. GPU Clock (Base) | 2220 MHz |
| Max. GPU Clock (Boost) | 3250 MHz |
| Max. Memory Clock | 28000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (2x) |
| Internal Ports | |
| Required Power Connectors | 8-pin PCIe (1x) |
| GPU Model | |
| GPU Series Name | AMD Radeon RX 9060 XT 16GB |
| Graphics Chip | Navi 44 |
| Manufacturing Process | 4 nm |
| Shader Units | 2048 |
| Raytracing Cores / Ray Acceleratorss | 32 |
| GPU Memory Type | GDDR6 |
| Slot Type Standard | PCIe 5.0 |
| Compute Units | 32 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 128 |
| GPU Memory Bandwidth (GB/s) | 320 |
| GPU Effective Memory Clock (MHz) | 20000 |
Delivery Options
Economy Delivery (UK)
Business Express
| Model Name | DUAL-RX9060XT-16G-WHITE |
|---|---|
| Graphics Engine | AMD Radeon™ RX 9060 XT |
| Stream Processors | 2048 |
| OpenGL® | 4.6 |
| Engine Clock |
OC mode (GPU Tweak III): up to 3250 MHz (Boost Clock) / up to 2640 MHz (Game Clock) Default mode: up to 3230 MHz (Boost Clock) / up to 2620 MHz (Game Clock) |
| Memory Interface | 128-bit |
| Video Memory | 16GB GDDR6 |
| Memory Speed | 20 Gbps |
| Power Connector | 1 x 8-pin |
| I/O | 1 x HDMI 2.1b 2 x DisplayPort 2.1a |
| HDCP | 2.3 |
| Digital Max. Resolution | 7680 x 4320 |
| Maximum Display Support | 3 |
| NVLink / Crossfire Support | No |
| Recommended PSU | 550 W |
| Bus Standard | PCIe 5.0 |
| Package Contents |
Thank You Card Speedsetup Manual |
| Software Bundled | ASUS GPU Tweak III & Driver (download from support site) |
| Slot | 2.5 slot |
| Dimensions | 202 x 120 x 49 mm (7.95 x 4.72 x 1.93 in) |
| Color Box | 364 x 217 x 66 mm |
| Weight | Card: 0.601 kg With packaging: 1.06 kg |
