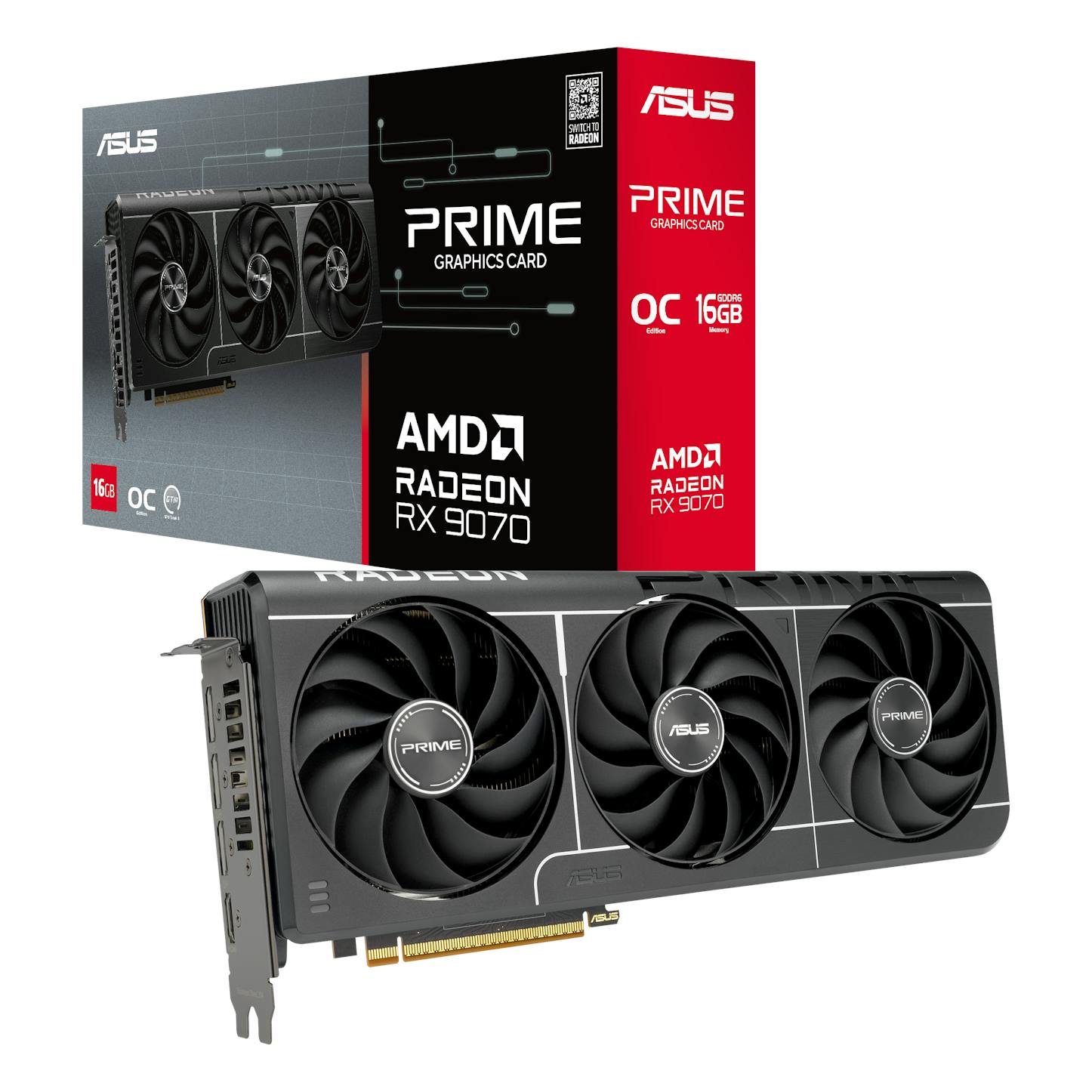

Asus Radeon RX 9070 Prime OC EVO 16GB GDDR6 PCI-Express Graphics Card
Product Technical Specification
| Water Cooling | |
| Watercooling | No |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | AMD Freesync |
| Lighting | |
| Lighting / RGB | No |
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 304 mm |
| Width | 126 mm |
| Height | 50 mm |
| Expansion Slots | |
| Expansion Slots Required | 2.5 Slots |
| Graphics Card | |
| GPU Series | RX 9000 Series |
| Cooling | |
| Number of GPU Fans | 3 |
| Clock Speeds | |
| Max. GPU Clock (Base) | 1330 MHz |
| Max. GPU Clock (Boost) | 2610 MHz |
| Max. Memory Clock | 20000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (3x) |
| Internal Ports | |
| Required Power Connectors | 8-pin PCIe (2x) |
| GPU Model | |
| GPU Series Name | AMD Radeon RX 9070 |
| Graphics Chip | Navi 48 |
| Manufacturing Process | 4 nm |
| Shader Units | 3584 |
| Raytracing Cores / Ray Acceleratorss | 56 |
| GPU Memory Type | GDDR6 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 256 |
| GPU Memory Bandwidth (GB/s) | 256 |
| GPU Effective Memory Clock (MHz) | 20000 |
Delivery Options
Economy Delivery (UK)
Business Express
| Model | PRIME-RX9070-O16G-EVO |
|---|---|
| Graphic Engine | AMD Radeon™ RX 9070 |
| Bus Standard | PCI Express 5.0 |
| OpenGL | OpenGL® 4.6 |
| Video Memory | 16GB GDDR6 |
| Engine Clock |
OC mode (GPU Tweak III): up to 2610 MHz (Boost) / 2140 MHz (Game) Default mode: up to 2590 MHz (Boost) / 2120 MHz (Game) |
| Stream Processors | 3584 |
| Memory Speed | 20 Gbps |
| Memory Interface | 256-bit |
| Resolution | 7680 x 4320 (Max Digital) |
| Interface |
1 × HDMI 2.1b (Native) 3 × DisplayPort 2.1a (Native) |
| HDCP Support | Yes (2.3) |
| Maximum Display Support | 4 |
| NVlink / Crossfire Support | No |
| Accessories | 1 × Thank you card 1 × Speedsetup Manual |
| Software | ASUS GPU Tweak III & Drivers (download from support site) |
| Dimensions | 304 × 126 × 50 mm 12 × 5 × 2 inches |
| Recommended PSU | 650W |
| Power Connectors | 2 × 8-pin |
| Slot | 2.5 Slot |
| Water Cooling | |
| Watercooling | No |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | AMD Freesync |
| Lighting | |
| Lighting / RGB | No |
| Colour | |
| Primary Colour | Black |
| Dimensions | |
| Length / Depth | 304 mm |
| Width | 126 mm |
| Height | 50 mm |
| Expansion Slots | |
| Expansion Slots Required | 2.5 Slots |
| Graphics Card | |
| GPU Series | RX 9000 Series |
| Cooling | |
| Number of GPU Fans | 3 |
| Clock Speeds | |
| Max. GPU Clock (Base) | 1330 MHz |
| Max. GPU Clock (Boost) | 2610 MHz |
| Max. Memory Clock | 20000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (3x) |
| Internal Ports | |
| Required Power Connectors | 8-pin PCIe (2x) |
| GPU Model | |
| GPU Series Name | AMD Radeon RX 9070 |
| Graphics Chip | Navi 48 |
| Manufacturing Process | 4 nm |
| Shader Units | 3584 |
| Raytracing Cores / Ray Acceleratorss | 56 |
| GPU Memory Type | GDDR6 |
| Slot Type Standard | PCIe 5.0 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 256 |
| GPU Memory Bandwidth (GB/s) | 256 |
| GPU Effective Memory Clock (MHz) | 20000 |
