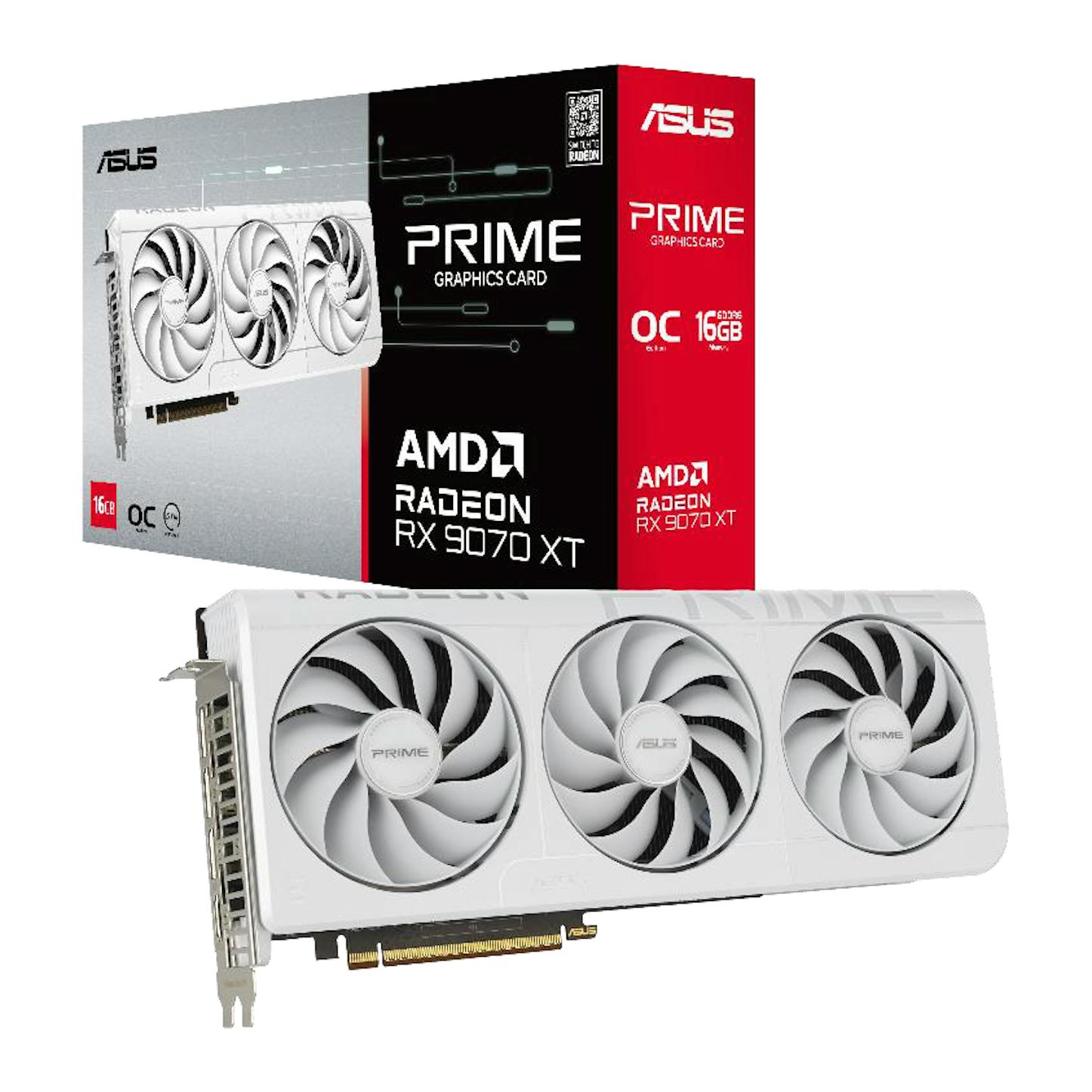

Asus Radeon RX 9070 XT Prime OC White 16GB GDDR6 PCI-Express Graphics Card
Product Technical Specification
| Water Cooling | |
| Watercooling | No |
| Standards / Specifications | |
| Adaptive Sync Technology (G-SYNC / FreeSync) | AMD Freesync |
| Lighting | |
| Lighting / RGB | No |
| Colour | |
| Primary Colour | White |
| Dimensions | |
| Length / Depth | 312 mm |
| Width | 130 mm |
| Height | 50 mm |
| Expansion Slots | |
| Expansion Slots Required | 2.5 Slots |
| Graphics Card | |
| GPU Series | RX 9000 Series |
| Cooling | |
| Number of GPU Fans | 3 |
| Clock Speeds | |
| Max. GPU Clock (Base) | 1660 MHz |
| Max. GPU Clock (Boost) | 3030 MHz |
| Max. Memory Clock | 28000 MHz |
| External Ports | |
| Display Connectors | HDMI (1x), Display Port (3x) |
| Internal Ports | |
| Required Power Connectors | 8-pin PCIe (3x) |
| GPU Model | |
| GPU Series Name | AMD Radeon RX 9070 XT |
| Graphics Chip | Navi 48 |
| Manufacturing Process | 4 nm |
| Shader Units | 4096 |
| Raytracing Cores / Ray Acceleratorss | 64 |
| GPU Memory Type | GDDR6 |
| Slot Type Standard | PCIe 5.0 |
| Compute Units | 64 |
| GPU Memory Size (GB) | 16 |
| GPU Memory Interface (bit) | 256 |
| GPU Memory Bandwidth (GB/s) | 256 |
| GPU Effective Memory Clock (MHz) | 20000 |
Delivery Options
Economy Delivery (UK)
Business Express
ASUS PRIME-RX9070XT-O16G-WHITE Specifications
| Model Name | PRIME-RX9070XT-O16G-WHITE |
|---|---|
| Graphics Engine | AMD Radeon™ RX 9070 XT |
| Stream Processors | 4096 |
| OpenGL® | 4.6 |
| Engine Clock |
OC mode (GPU Tweak III): up to 3030 MHz (Boost Clock) / up to 2480 MHz (Game Clock) Default mode: up to 3010 MHz (Boost Clock) / up to 2460 MHz (Game Clock) |
| Memory Interface | 256-bit |
| Video Memory | 16GB GDDR6 |
| Memory Speed | 20 Gbps |
| Power Connector | 3 x 8-pin |
| I/O | 1 x HDMI 2.1b 3 x DisplayPort 2.1a |
| HDCP | 2.3 |
| Digital Max. Resolution | 7680 x 4320 |
| Maximum Display Support | 4 |
| Crossfire Support | No |
| Recommended PSU | 750 W |
| Bus Standard | PCIe 5.0 |
| Package Contents |
Thank You Card Speedsetup Manual ASUS Velcro Hook & Loop WHITE |
| Software Bundled | ASUS GPU Tweak III & Driver (download from support site) |
| Slot | 2.5 slot |
| Dimensions | 312 x 130 x 50 mm (12.3 x 5.1 x 2.0 in) |
| Color Box | 405 x 233 x 88.5 mm |
| Weight | Card: 1.16 kg With packaging: 1.75 kg |
