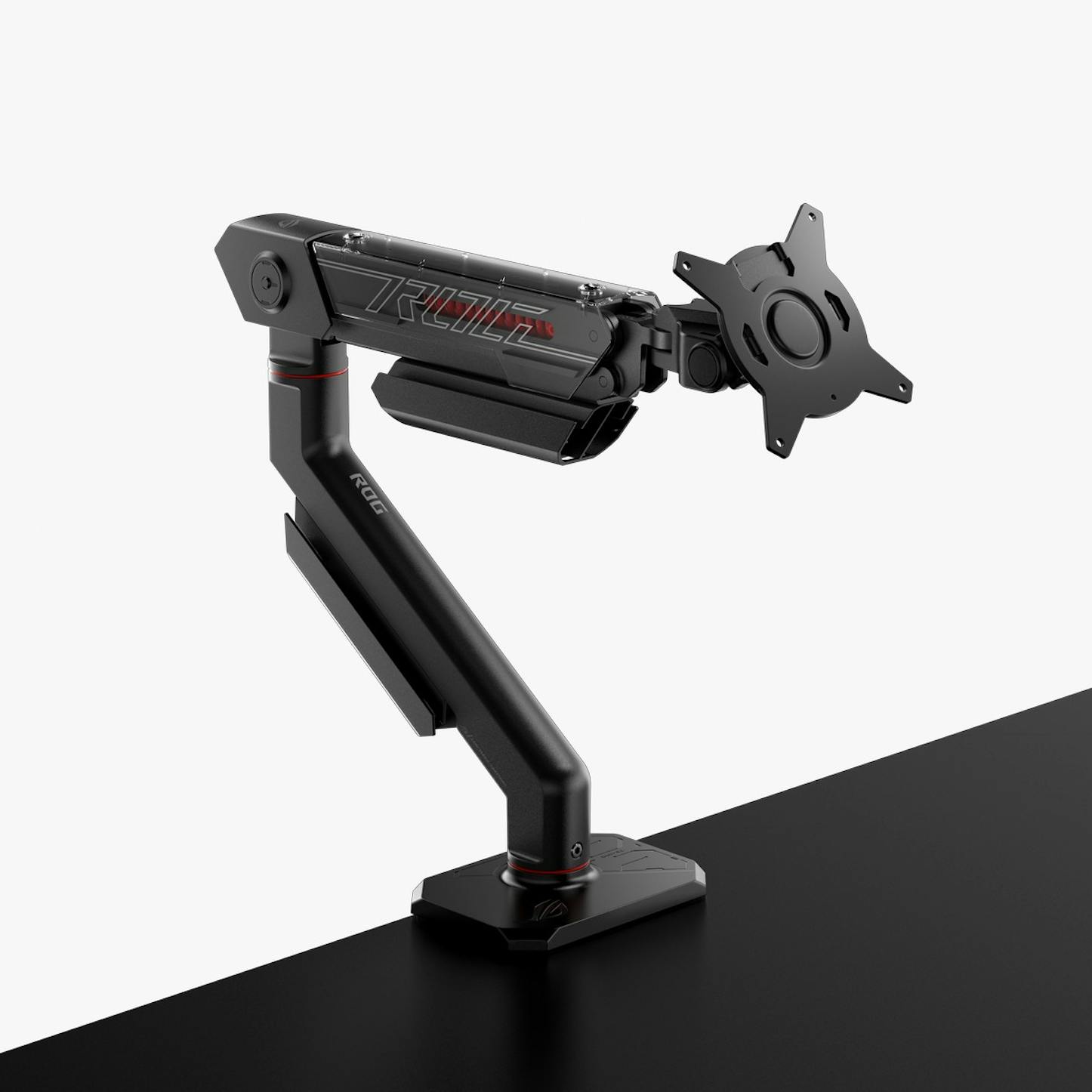

ASUS ROG AAS01 Ergo Monitor Arm
Product Technical Specification
| Mounting | |
| Maximum weight capacity | 11.5 kg |
| Number of displays supported | 1 |
| Maximum screen size | 86.4 cm (34") |
| Mounting | Clamp |
| Mounting type | Desk |
| Minimum VESA mount | 100 x 100 mm |
| Maximum VESA mount | 100 x 100 mm |
| Panel mounting interface | 100 x 100 mm |
| Extension arm (max) | 6.37 cm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8 cm |
| Ergonomics | |
| Height adjustment | Yes |
| Height adjustment type | Manual |
| Adjustable depth | Yes |
| Tilt adjustment | Yes |
| Tilt angle range | -25 - 80° |
| Swivelling | Yes |
| Swivel angle range | -90 - 90° |
| Rotating | Yes |
| Angle of rotation | 360° |
| Pivot angle | 0 - 360° |
| Pan range | 0 - 360° |
| Number of arms | 1 |
| Cable management | Yes |
| Design | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 578 mm |
| Depth | 154 mm |
| Height | 656 mm |
| Weight | 4.5 kg |
| Packaging data | |
| Quantity per pack | 1 pc(s) |
| Package width | 775 mm |
| Package depth | 135 mm |
| Package height | 232 mm |
| Package weight | 5.8 kg |
| Package type | Box |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
ROG Ergo Monitor Arm AAS01 – A monitor mount that features cable management channels, allowing gamers to create a more ergonomic, neater gaming setup.
Wide-ranging compatibility: Accommodates up to 39-inch monitors weighing 6.6–23.35 pounds, and works with VESA 100 x 100 mm mounts
Full range of motion: A mechanical spring system allows for height, tilt, and swivel adjustments
Easy to set up and reliable: Installation is quick, and stringent durability testing in the design phase, including a 10,000-cycle range of motion test, ensures reliability
Specifications
Model
ROG Ergo Monitor Arm AAS01
Mechanical Design
Recommended Display Size:
≤34"*
Swivel :
+90°~-90°
Pivot :
360°
Lift:
32 cm
Pan:
360°
Tilt :
+80°~-25°
Rotation:
360°
Maximum Extension:
63.72cm
VESA Mounting :
100x100mm
Cable Management:
Integrated
Desk Clamp Range:
10~80mm
Chassis Color :
Black
Dimensions
Phys. Dimension :
57.8 x 65.6 x 15.4 cm (22.76" x 25.83" x 6.06")
Box Dimension :
77.5 x 13.5 x 23.2 cm (30.51" x 5.31" x 9.13")
Weight
Weight Capacity:
3~11.5 Kg(Flat display)
3~8.5 Kg(Curve display)
Net Weight :
4.5 kg (9.92 lbs)
Gross Weight :
5.8 kg (12.79 lbs)
Note
Note:
*
1. Display size is an approximation.
2. Dimension is the diagonal measurement of the display.
3. The display size may be exceeded as long as the weight of the display does not exceed the maximum weight capacity of the mount.
