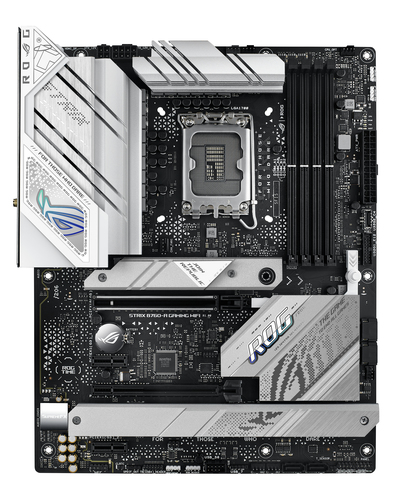

ASUS ROG STRIX B760-A GAMING WIFI Intel B760 LGA 1700 ATX
Product Technical Specification
Processor | |
Processor manufacturer | Intel |
Processor socket | LGA 1700 |
Compatible processor series | Intel Celeron,Intel Pentium Gold,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9 |
Supported processor sockets | LGA 1700 |
Memory | |
Supported memory types | DDR5-SDRAM |
Number of memory slots | 4 |
Memory slots type | DIMM |
Memory channels | Dual-channel |
Non-ECC | Yes |
Supported memory clock speeds | 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 |
Supported memory clock speed (max) | 7800 |
Maximum internal memory | 128 |
Unbuffered memory | Yes |
Storage controllers | |
Supported storage drive types | HDD & SSD |
Supported storage drive interfaces | M.2,SATA III |
Number of HDDs supported | 4 |
Number of storage drives supported | 7 |
RAID support | Yes |
RAID levels | 0,1,5,10 |
Graphics | |
Parallel processing technology support | Not supported |
Internal I/O | |
USB 2.0 connectors | 1 |
USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
Number of SATA III connectors | 4 |
S/PDIF out connector | Yes |
Front panel audio connector | Yes |
ATX Power connector (24-pin) | Yes |
CPU fan connector | Yes |
Number of chassis fan connectors | 4 |
Peripheral (Molex) power connectors (4-pin) | 1 |
EPS power connector (8-pin) | Yes |
Thunderbolt headers | 1 |
12V power connector | Yes |
RGB LED pin header | Yes |
Rear panel I/O ports | |
USB 2.0 ports quantity | 4 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
Ethernet LAN (RJ-45) ports | 1 |
HDMI ports quantity | 1 |
HDMI version | 2.1 |
DisplayPorts quantity | 1 |
DisplayPort version | 1.4 |
Headphone outputs | 1 |
Line-in | Yes |
Microphone in | Yes |
Network | |
Ethernet LAN | Yes |
Ethernet interface type | 2.5 Gigabit Ethernet |
Wi-Fi | Yes |
Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax) |
Bluetooth | Yes |
Bluetooth version | 5.3 |
Features | |
Motherboard chipset | Intel B760 |
Audio chip | Realtek ALC4080 |
Audio output channels | 7.1 |
Component for | PC |
Motherboard form factor | ATX |
Motherboard chipset family | Intel |
Windows operating systems supported | Windows 10 x64,Windows 11 |
Expansion slots | |
PCI Express x1 (Gen 3.x) slots | 2 |
PCI Express x16 (Gen 3.x) slots | 1 |
Number of M.2 (M) slots | 3 |
BIOS | |
BIOS type | UEFI AMI |
BIOS memory size | 256 |
Weight & dimensions | |
Width | 305 |
Depth | 244 |
Packaging content | |
Cables included | SATA |
Delivery Options

Economy Delivery (UK)

Fast & Tracked by Courier (UK)
Just like its formidable sibling, the ROG Strix B760-A Gaming WiFi dishes up a vibrant take on the latest Intel platform, with PCIE 5.0, USB 3.2 GEN 2x2, and cyber-inspired ROG motifs emblazoned on a high-contrast backdrop. But this variant features DDR5, bringing even more bandwidth to the table for games and apps.
M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an SSD from an M.2 slot. The design employs a simple locking mechanism to secure the drive, eliminating the need for a traditional screw.
ALL-ROUND PERFORMANCE
The neat aesthetics of the Strix B760-A were no distraction when crafting this motherboard’s power delivery and thermal arrays. You’ll get a fully fledged gaming experience and then some with this beast.
VRM HEATSINK ARRAY
Covering the power solution are two thick heatsinks with strategic airflow channels for increased heat dissipation while powering high-performance Intel 13th Gen processors.
LEADING CONNECTIVITY
The Strix B760-A is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.
SUPREMEFX
ROG SupremeFX is a unique blend of hardware and software technologies that provide superior audio. The Strix B760-A implementation features the ALC4080 codec for high-resolution playback up to 32-bit/384 kHz across all channels. Front-panel output is streamed through the integrated Savitech amplifier that can drive high-fidelity acoustics to a wide variety of speakers and headsets.
PLAY IN STYLE
Bold aesthetics and Aura Sync RGB controls let the ROG Strix B760-A shine in every build.
UNDENIABLY ROG STRIX
Diagonal slats, brushed aluminum, and bold RGB have become hallmarks of the ROG aesthetic, and the Strix B760-A bears all of them with pride. Its white, silver, and black color scheme pairs well with both dark and lighter-colored components. 8-bit accents show some gaming pride.
SOFTWARE UTILITIES
A myriad of ROG-exclusive tools put advanced system tuning and configuration at your fingertips.
