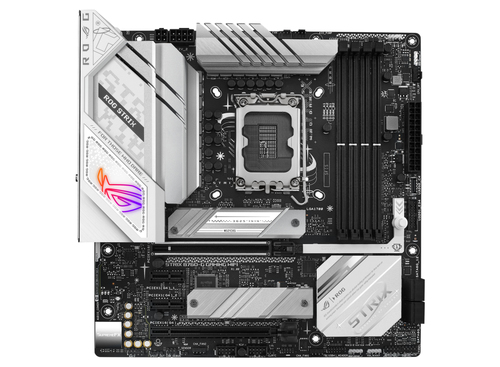

ASUS ROG STRIX B760-G GAMING WIFI Intel B760 LGA 1700 micro ATX

Manufacturer: Asus | Model: 90MB1EQ0-M1EAY0 | Product ID: 0349
£204.36 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Processor
Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel Celeron,Intel Pentium Gold,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9
Supported processor socketsLGA 1700
Memory
Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Non-ECCYes
Supported memory clock speeds7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800
Supported memory clock speed (max)7800
Maximum internal memory192
Unbuffered memoryYes
Storage controllers
Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2,SATA III
Number of HDDs supported4
Number of storage drives supported6
RAID supportYes
RAID levels0,1,5,10
Graphics
Parallel processing technology supportNot supported
Internal I/O
USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors2
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
Thunderbolt headers1
12V power connectorYes
RGB LED pin headerYes
Rear panel I/O ports
USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
DisplayPorts quantity1
Headphone outputs1
Line-inYes
Microphone inYes
WiFi-AP antenna jack1
Network
Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standardsWi-Fi 6E (802.11ax)
BluetoothYes
Bluetooth version5.3
Features
Motherboard chipsetIntel B760
Audio chipSupremeFX S1220A
Audio output channels7.1
Component forPC
Motherboard form factorMicro ATX
Motherboard chipset familyIntel
Windows operating systems supportedWindows 10 x64,Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots2
PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots2
BIOS
BIOS typeUEFI AMI
BIOS memory size256
Weight & dimensions
Width244
Depth244
Packaging content
Cables includedSATA

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
ROG STRIX B760-G GAMING WIFI
Midsize overperformer: the ROG Strix B760-G Gaming Wi-Fi is a monochrome powerhouse, ready to propel your next mATX rig. It bears the same high-bandwidth connectivity as its trusty counterpart, but diverges with lightning-fast DDR5 memory and buffed power stages to complement high-speed Intel 13th Gen processors. White and silver accents pair perfectly with the ASUS AP201, and retro insignias give it a dash of classic Strix style.

PCIE® SLOT Q-RELEASE
A physical button unlocks the first PCIe slot’s security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

ALL-ROUND PERFORMANCE
A finely tuned power solution and blistering-fast DDR5 memory give the ROG Strix B760-G an edge over its compact peers. Well-placed and optimized heatsinks cover the VRM and M.2 slots to keep performance pushed to the max, even in cramped quarters.

TEAMED POWER ARCHITECTURE
12 + 1 power stages each rated to 60A deliver ample current to drive the most powerful Intel 13th Gen processors through any workload with ease.

ALLOY CHOKES AND DURABLE CAPACITORS
High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

8+4 PIN PROCOOL POWER CONNECTORS
Hi-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

SIX-LAYER PCB
A multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability.

LEADING CONNECTIVITY
The Strix B760-G is entirely well-connected with high-speed wireless and wired networking, a plethora of USB I/O, and SupremeFX audio to pump crystal-clear sound through speakers or headphones for enhanced immersion.

PLAY IN STYLE
The Strix B760-G features a black PCB, bare heatsinks, and white accents, allowing it to pair with almost any component or peripheral. Customizable RGB lighting furthers its flexibility for a fully customized gaming setup that reflects your personal style.
