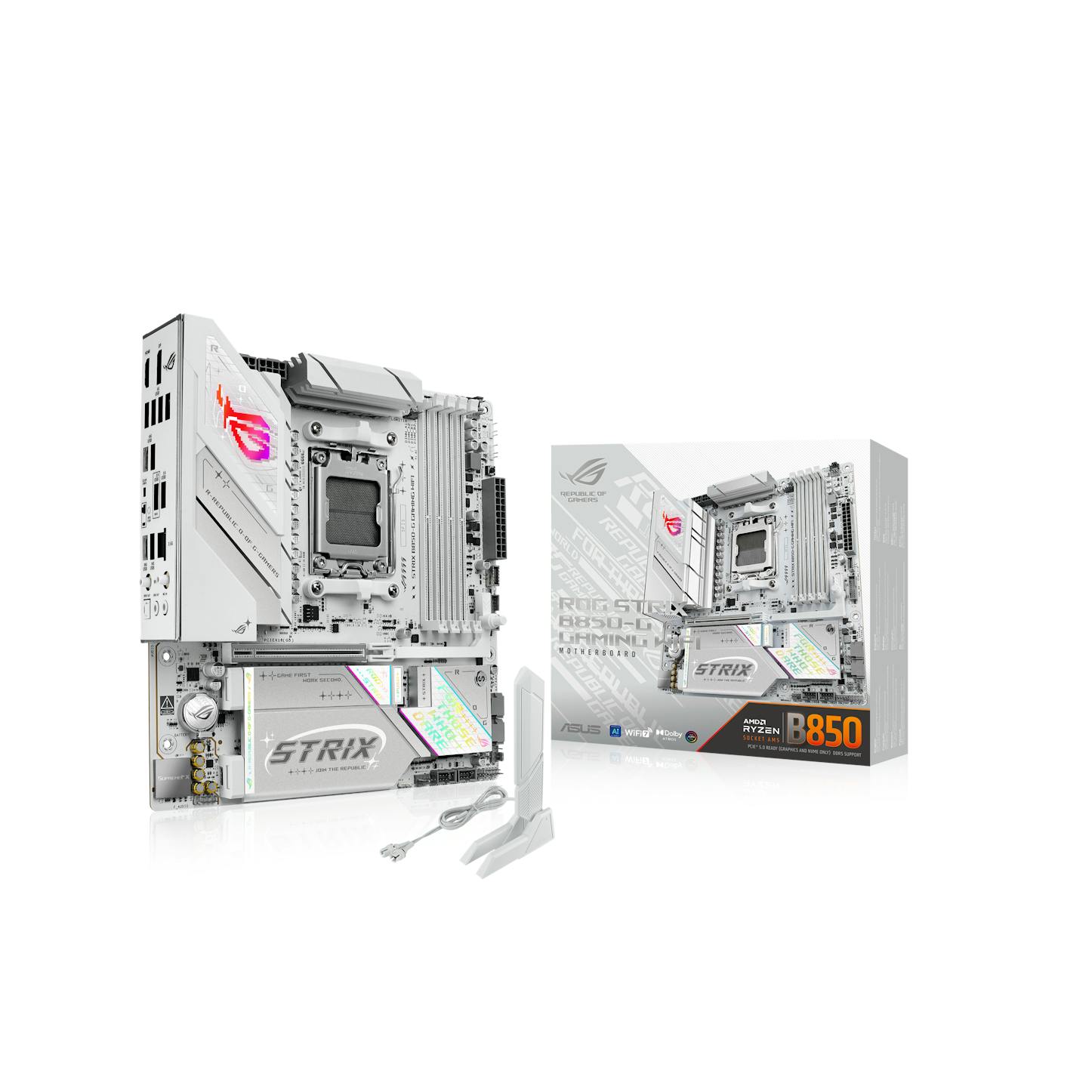

Asus ROG Strix B850-G Gaming WIFI (AM5) DDR5 Micro-ATX Motherboard

Manufacturer: Asus | Model: 90MB1M30-M0EAY0 | Product ID: 3164
£204.67 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Form Factor
Motherboard formfactorMicro-ATX
Wi-Fi & LAN
LANYes
LAN Ports1x 2.5 Gbit/s
Wi-Fi / BluetoothYes
Colour
Primary ColourWhite
Lighting
Lighting / RGBYes
Motherboard
Motherboard ChipsetAMD B850
CPU
CPU ManufacturerAMD
CPU SocketAM5
Fan Header
4 Pin Fan Connectors6
Memory
Max. Memory256 GB
Memory TypeDDR5
Memory Form FactorDIMM
Memory slots4x
Internal Ports
CPU Power Supply2x 8-Pin

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Wed 26th Aug 2026 to Sat 29th Aug 2026
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Tue 25th Aug 2026 to Thu 27th Aug 2026
View all Delivery Options & International Rates
Motherboard Specifications

Motherboard Specifications

CPUAMD Socket AM5 for Ryzen™ 9000 / 8000 / 7000 Series
*Refer to ASUS Support for compatibility
ChipsetAMD B850
Memory4 x DIMM slots, up to 256GB DDR5
Supports up to 8000+MT/s (OC)
Dual Channel, ECC/Non-ECC
AMD EXPO™, ASUS AEMP supported
Graphics1 x DisplayPort (max 8K@30Hz)
1 x HDMI™ port (4K@60Hz)
*Depends on CPU
Expansion Slots1 x PCIe 5.0 x16 slot (Ryzen 9000/7000)
1 x PCIe 5.0 x16 slot (Ryzen 8000, supports PCIe 4.0 x8/x4)
Storage4 x M.2 slots
2 x SATA 6Gb/s ports
*M.2_2 supports PCIe 5.0 x4 (Ryzen 9000)
*Other slots PCIe 4.0 depending on CPU
RAID SupportRAIDXpert2
Ryzen 9000: RAID 0/1/5/10
Ryzen 8000: RAID 0/1
Ryzen 7000: RAID 0/1/10
EthernetIntel® 2.5Gb Ethernet, ASUS LANGuard
Wi-Fi & Bluetooth®Wi-Fi 7 (2x2, 802.11be)
Supports 2.4/5/6GHz
Bluetooth® v5.4
Rear USB1 x USB 20Gbps (Type-C)
3 x USB 10Gbps (2 x Type-A + 1 x Type-C)
4 x USB 5Gbps (Type-A)
2 x USB 2.0 (Type-A)
Front USB1 x USB 10Gbps (Type-C)
1 x USB 5Gbps header (2 ports)
2 x USB 2.0 headers (4 ports)
AudioRealtek ALC1220P 7.1 Surround
120 dB SNR playback, 113 dB SNR recording
Supports 32-bit/192kHz playback
Rear optical S/PDIF out
Back Panel I/O10 USB ports total
1 x DisplayPort, 1 x HDMI™
Wi-Fi module, 2.5Gb LAN
2 x Audio jacks, Optical S/PDIF
BIOS FlashBack™ & Clear CMOS buttons
Internal I/OCPU/Chassis Fan headers
4 x M.2 slots, 2 x SATA
USB headers (Type-C, 5Gbps, 2.0)
RGB headers, thermal sensor, power headers
Special FeaturesExtreme Engine Digi+, M.2 Q-Latch/Release
PCIe Slot Q-Release, Q-LED
VRM/M.2 heatsinks, pre-mounted I/O shield
Addressable RGB Gen 2 headers
SoftwareArmoury Crate, Aura Sync, Fan Xpert 4
AI Overclocking Guide, GameFirst
Free trials: AIDA64, Norton 360, WinRAR
BIOS256 Mb Flash ROM, UEFI AMI BIOS
ManageabilityWOL by PME, PXE
Accessories2 x SATA cables, WiFi Q-Antenna, Cable ties, M.2 accessories, ROG stickers, keychain, Quick Start Guide
Operating SystemWindows 11
Form Factormicro-ATX (24.4 cm x 24.4 cm)
Form Factor
Motherboard formfactorMicro-ATX
Wi-Fi & LAN
LANYes
LAN Ports1x 2.5 Gbit/s
Wi-Fi / BluetoothYes
Colour
Primary ColourWhite
Lighting
Lighting / RGBYes
Motherboard
Motherboard ChipsetAMD B850
CPU
CPU ManufacturerAMD
CPU SocketAM5
Fan Header
4 Pin Fan Connectors6
Memory
Max. Memory256 GB
Memory TypeDDR5
Memory Form FactorDIMM
Memory slots4x
Internal Ports
CPU Power Supply2x 8-Pin
