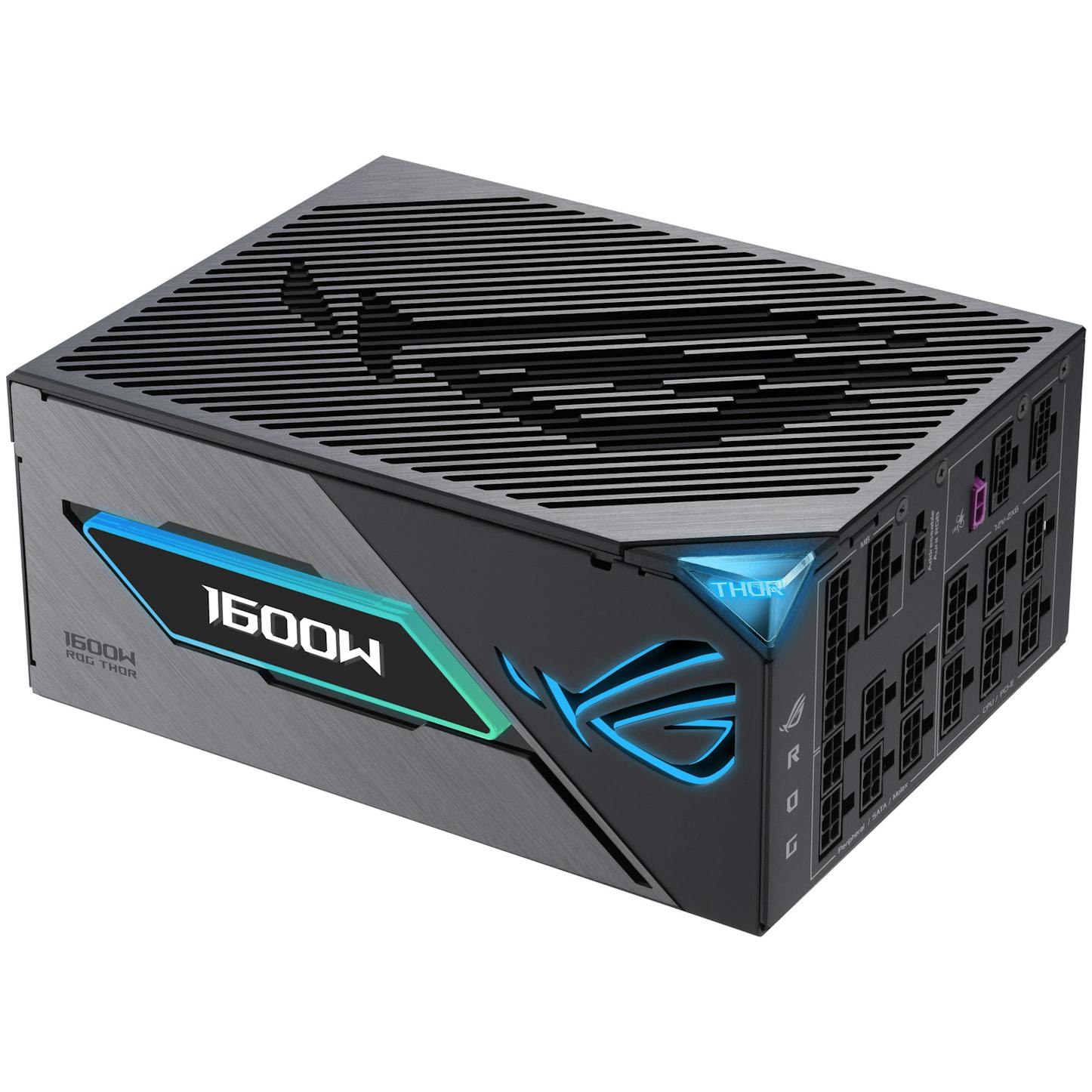

ASUS ROG Thor 1600W Titanium III 80 PLUS Titanium ATX 3.1 Power Supply
Product Technical Specification
| Power | |
| Total power | 1600 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 10 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power connectors (4-pin) | 9 |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 2 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 100 cm |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Silent mode | Yes |
| Bearing technology | DBB |
| Mean time between failures (MTBF) | 120000 h |
| Design | |
| Product colour | Grey |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
| Built-in display | Yes |
| Display type | OLED |
| On/off switch | Yes |
| Packaging content | |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.8 kg |
| Packaging data | |
| Package width | 390 mm |
| Package depth | 251 mm |
| Package height | 159 mm |
| Package weight | 6.3 kg |
| Package type | Box |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
Featuring a GaN MOSFET, “GPU-First” patented intelligent voltage stabilizer and a magnetic OLED display, ROG Thor 1600W Titanium III delivers unmatched performance and rock-solid stability for your ultimate PC build
ROG Thor 1600W Titanium III at a Glance
- GaN MOSFET delivers up to 30% more power efficiency than standard MOSFETs and a more organized internal layout for cooler operation.
- "GPU-First" voltage sensing with patented intelligent voltage stabilizer enhances voltage delivery to your graphics card by up to 45% for smoother gaming and unwavering performance.
- Magnetic OLED display shows a real-time power draw and can be swapped to either side of the unit to accommodate fan-up or fan-down PSU installation.
- Turbo Mode: Premium components and a fine-tuned fan curve unlock support for extended power excursions.
- ROG heatsinks and a fully aluminum enclosure synergize for superior cooling, keeping your system thermals under control.
- Dual-ball-fan bearings can last up to twice as long as sleeve bearing designs.
ROG Thor 1600W Titanium III Specification
| Model Name | ROG THOR 1600P3 GAMING |
| Intel Specification | ATX 12V |
| Efficiency | 80 Plus Titanium |
| Protection Features | OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials | ROHS |
| AC Input Range | (1) 115-240Vac (2) 100-115Vac |
| Thermal Features | ROG Thermal Solution |
| DC Output Voltage | +3.3V, +5V, +12V, -12V, +5Vsb |
| Maximum Load | 30A, 25A, 133.3A, 0.3A, 3A |
| Combined Load | 125W, 1600W, 3.6W, 15W |
| Total Output | (1) Max. 1600W (2) Max. 1300W |
| Connectors | MB 24/20-pin x 1, PCI-E 16-pin x 2, SATA x 10, CPU 4+4-pin x 2, PCI-E 6+2-pin x 4, Peripheral x 9 |
| Package Contents | Power Cord x 1, Motherboard Power Cable x 1 (610mm), CPU Cable x 2 (1000mm), PCI-E Gen 5 16-pin Cable x 2 (750mm), PCI-E Cable 1-to-1 x 4 (750mm), SATA Cable 1-to-4 x 1 (400+120+120+120mm), SATA Cable 1-to-3 x 2 (400+120+120mm), Peripheral 1-to-3 x 3 (400+150+150mm), Addressable RGB Cable x 1 (800mm), ROG Sticker x 1, ROG Cable Tie x 6, Chassis Screws Package x 1, Cable Tie x 12, User Manual x 1 |
| Power | |
| Total power | 1600 W |
| AC input voltage | 100 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 30 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Ports & interfaces | |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 10 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power connectors (4-pin) | 9 |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 2 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 100 cm |
| Cabling type | Fully-Modular |
| Performance | |
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Silent mode | Yes |
| Bearing technology | DBB |
| Mean time between failures (MTBF) | 120000 h |
| Design | |
| Product colour | Grey |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Illumination | Yes |
| Built-in display | Yes |
| Display type | OLED |
| On/off switch | Yes |
| Packaging content | |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Cable tie(s) included | Yes |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.8 kg |
| Packaging data | |
| Package width | 390 mm |
| Package depth | 251 mm |
| Package height | 159 mm |
| Package weight | 6.3 kg |
| Package type | Box |
