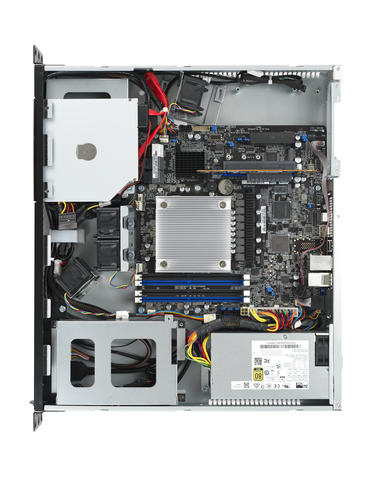

ASUS RS100-E11-PI2 Intel C252 LGA 1200 (Socket H5) Rack (1U) Silver
Product Technical Specification
| Processor | |
| Built-in processor | No |
| Motherboard chipset | Intel C252 |
| Processor socket | LGA 1200 (Socket H5) |
| Processor manufacturer | Intel |
| Processor family | Intel Xeon |
| Number of processors supported | 1 |
| Memory | |
| Number of DIMM slots | 4 |
| Supported memory types | DDR4-SDRAM |
| Supported DIMM module capacities | 4GB,8GB,16GB,32GB |
| Maximum UDIMM memory | 128 |
| Supported UDIMM clock speeds | 2666,3200 |
| Memory channels | Dual-channel |
| Storage | |
| Storage drive sizes supported | 2.5,3.5,M.2 |
| Supported storage drive types | HDD & SSD |
| RAID levels | 0,1,5,10 |
| SSD form factor | M.2 |
| Graphics | |
| On-board graphics card model | Aspeed AST2600 |
| On-board graphics card memory | 64 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet,Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 |
| Ports & interfaces | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 2 |
| COM ports quantity | 1 |
| Expansion slots | |
| PCI Express slots version | 4.0 |
| Number of M.2 (M) slots | 1 |
| Design | |
| Chassis type | Rack (1U) |
| Product colour | Silver |
| LED indicators | Yes |
| On/off switch | Yes |
| Reset button | Yes |
| Certification | BSMI, CE, FCC(Class A) |
| Power | |
| Power supply | 350 |
| 80 PLUS certification | 80 PLUS Gold |
| Operational conditions | |
| Operating temperature (T-T) | 10 - 35 |
| Storage temperature (T-T) | -40 - 70 |
| Storage relative humidity (H-H) | 20 - 90 |
| Weight & dimensions | |
| Width | 380 |
| Depth | 430 |
| Height | 44 |
| Weight | 7500 |
| Packaging data | |
| Package weight | 11720 |
Delivery Options
Economy Delivery (UK)
Business Express
Intel Xeon E-2300 processors
Small businesses require reliability and security to support their critical business and customer data needs. Available with up to eight cores and featuring a TDP of up to 95 watts, Intel Xeon E-2300 processors deliver essential server performance, expandability and reliability small businesses to support critical business and customer data needs.
PCIe 4.0 Ready
PCI Express® (PCIe®) 4.0 delivers 16 GT/s bandwidth, which is double the speed of PCIe 3.0, offering lower power consumption, better lane scalability and backwards compatibility. ASUS RS100-E11-PI2 servers are PCIe 4.0 ready to support a diverse array of graphics, storage and networking – enabling flexible scalability for demanding or increasing workloads.
Enhanced security
ASUS RS100-E11-PI2 servers integrate PFR FPGA as the platform Root-of-Trust solution for firmware resiliency to prevent from hackers from gaining access to infrastructure. ASUS security solutions are fully compliant with the 2018 National Institute of Standards and Technology (NIST) SP 800 193 specification.
In addition, all RS100-E11-PI2 servers also include support Trusted Platform Module 2.0 (TPM 2.0) to secure hardware through integrated cryptographic keys and offer regular firmware update for vulnerabilities.
* Platform Firmware Resilience (PFR) module must be specified at time of purchase and is factory-fitted. It is not for sale separately.
High-resolution HDMI monitoring
RS100-E11-PI2 server features a HDMI 1.4 port directed from CPU to offer higher-resolution monitoring and easier maintenance for IT administrators in business environments. A VGA port directed from BMC is also available for dual-display monitoring.
Dual Ethernet Bandwidth
Featuring dual onboard LAN ported by Intel I210-AT Ethernet Controller, RS100-E11-PI2 server provides server-grade connectivity and supports high-density, high-bandwidth, low-latency access-layer networks to ensure faster transfers of large-size files used in data-intensive applications
Server-management Solution
ASUS ASMB10-iKVM
ASUS ASMB10-iKVM is the latest server-management solution from ASUS, built upon the ASPEED 2600 chipset running on the latest AMI MegaRAC SP-X. The module provides various interfaces to enable out-of-band server management through WebGUI, Intelligent Platform Management Interface (IPMI) and Redfish® API.
ASUS Control Center
ASUS Control Center (ACC) is a centralized and integrated IT-management platform for monitoring and controlling ASUS servers, workstations and mini PCs. ACC enables remote BIOS updates, monitoring of multiple systems via mobile devices, and one-click software updates and dispatching, allowing easier server management for any IT infrastructure.
