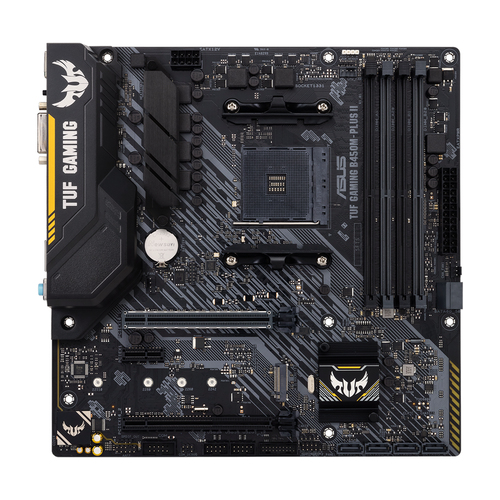

ASUS TUF Gaming B450M-Plus II AMD B450 Socket AM4 micro ATX
Product Technical Specification
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3,AMD Ryzen 3 2nd Gen,AMD Ryzen 3 3rd Gen,AMD Ryzen 5,AMD Ryzen 5 2nd Gen,AMD Ryzen 5 3rd Gen,AMD Ryzen 7,AMD Ryzen 7 2nd Gen,AMD Ryzen 7 3rd Gen,AMD Ryzen 9 3rd Gen,AMD Ryzen Threadripper,AMD Ryzen Threadripper 2nd Gen,AMD Ryzen Threadripper 3rd Gen,AMD Ryzen Threadripper Pro 3rd Gen |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3400,3466,3533,3600,3733,3866,4000,4400 |
| Maximum internal memory | 128 |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive interfaces | M.2,SATA,SATA II,SATA III |
| Number of storage drives supported | 7 |
| RAID levels | 0,1,10 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| S/PDIF out connector | Yes |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
| Motherboard chipset | AMD B450 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 |
| Component for | PC |
| Motherboard form factor | Micro ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64,Windows 7 x64 |
| Expansion slots | |
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 3 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| ACPI version | 6.1 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 244 |
| Depth | 244 |
| Height | 259 |
| Packaging content | |
| Cables included | SATA |
| Bundled software | Armoury Crate, Aura Creator, Aura Sync, AI Noise-Canceling Microphone, AI Suite 3, Performance And Power Saving Utility, TurboV EVO, EPU, Digi+ VRM, Fan Xpert 2+, EZ update, PC Cleaner, TUF GAMING, CPU-Z, AI Charger, ASUS Turbo LAN, DAEMON Tools, DTS Custom for GAMING Headsets, Norton Anti-virus software (Free Trial for 60 days), WinRAR, UEFI BIOS, ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Other features | |
| Weight | 849 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
TUF Gaming motherboards are specially designed and tested to survive and thrive in conditions where other boards would struggle. Engineered with military-grade components, an upgraded power solution and a comprehensive set of cooling options, this motherboard delivers rock-solid performance with unwavering gaming stability.
When you build with a TUF Gaming motherboard, you also benefit from the TUF Gaming Alliance — an ASUS collaboration with trusted industry partners that ensures easier building, best compatibility, and complementary aesthetics from components to case.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel the latest AMD Ryzen CPUs, plus support for faster storage and connectivity, TUF GAMING B450M-PLUS II is the perfect foundation for your next high-core-count battle rig.
EASY PC DIY
TUF Gaming motherboards are designed to be easy to set up and configure just the way you want — even for first-time builders. The TUF Gaming Alliance ecosystem makes selecting compatible parts easy, while Armoury Crate software offers full control of system settings via a single dashboard. TUF Gaming motherboards give you everything you need to build your dream gaming rig without adding complexity.
Build with confidence
TUF Gaming Alliance is a collaboration between ASUS and trusted PC-component brands to ensure compatibility with a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With more partnerships and components being added regularly, the TUF Gaming Alliance will continue to grow even stronger.
IMMERSIVE GAMING
TUF GAMING B450M-PLUS II provides a complete, high-performance gaming package with a long list of features to improve your experience, including ultrafast networking for smoother online gameplay, pristine audio with positional cues for FPS gaming, and onboard RGB lighting that syncs with attached accessories to help you create a personalized gaming atmosphere.
Turbo LAN
NETWORK-OPTIMIZATION SOFTWARE FOR CUSTOMIZABLE PACKET PRIORITIZATION
Turbo LAN is a network-optimization software for customizable packet prioritization. With cFosSpeed traffic-shaping technology, it allows you to configure application priority via an intuitive interface, and reduces network lag.
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3,AMD Ryzen 3 2nd Gen,AMD Ryzen 3 3rd Gen,AMD Ryzen 5,AMD Ryzen 5 2nd Gen,AMD Ryzen 5 3rd Gen,AMD Ryzen 7,AMD Ryzen 7 2nd Gen,AMD Ryzen 7 3rd Gen,AMD Ryzen 9 3rd Gen,AMD Ryzen Threadripper,AMD Ryzen Threadripper 2nd Gen,AMD Ryzen Threadripper 3rd Gen,AMD Ryzen Threadripper Pro 3rd Gen |
| Memory | |
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC | Yes |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3400,3466,3533,3600,3733,3866,4000,4400 |
| Maximum internal memory | 128 |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive interfaces | M.2,SATA,SATA II,SATA III |
| Number of storage drives supported | 7 |
| RAID levels | 0,1,10 |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| S/PDIF out connector | Yes |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| TPM connector | Yes |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | No |
| Features | |
| Motherboard chipset | AMD B450 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 |
| Component for | PC |
| Motherboard form factor | Micro ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64,Windows 7 x64 |
| Expansion slots | |
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 2.x) slots | 3 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| ACPI version | 6.1 |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Width | 244 |
| Depth | 244 |
| Height | 259 |
| Packaging content | |
| Cables included | SATA |
| Bundled software | Armoury Crate, Aura Creator, Aura Sync, AI Noise-Canceling Microphone, AI Suite 3, Performance And Power Saving Utility, TurboV EVO, EPU, Digi+ VRM, Fan Xpert 2+, EZ update, PC Cleaner, TUF GAMING, CPU-Z, AI Charger, ASUS Turbo LAN, DAEMON Tools, DTS Custom for GAMING Headsets, Norton Anti-virus software (Free Trial for 60 days), WinRAR, UEFI BIOS, ASUS EZ DIY, ASUS CrashFree BIOS 3, ASUS EZ Flash 3, ASUS UEFI BIOS EZ Mode |
| Other features | |
| Weight | 849 |
