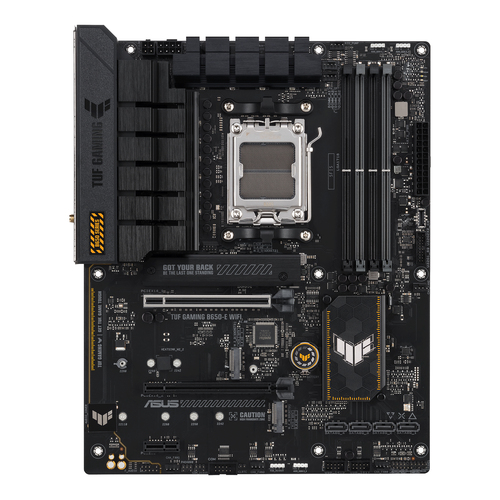

ASUS TUF GAMING B650-E WIFI AMD B650 Socket AM5 ATX
Product Technical Specification
| Processor | |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| Memory | |
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & non-ECC |
| Supported memory clock speeds | 8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800 |
| Supported memory clock speed (max) | 8000 |
| Maximum internal memory | 192 |
| Unbuffered memory | Yes |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2,SATA III |
| Number of HDDs supported | 4 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| RAID levels | 0,1,10 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Internal I/O | |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| Number of COM connectors | 1 |
| 12V power connector | Yes |
| RGB LED pin header | Yes |
| Rear panel I/O ports | |
| USB 2.0 ports quantity | 3 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Microphone in | Yes |
| WiFi-AP antenna jack | 1 |
| Network | |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
| Features | |
| Motherboard chipset | AMD B650 |
| Audio output channels | 7.1 |
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | AMD |
| Windows operating systems supported | Windows 10 x64,Windows 11 |
| Expansion slots | |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 3 |
| Number of M.2 (M) slots | 3 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 |
| Packaging data | |
| Package width | 338 |
| Package depth | 273 |
| Package height | 68 |
| Package weight | 1362 |
| Weight & dimensions | |
| Width | 305 |
| Depth | 244 |
Delivery Options
Economy Delivery (UK)
Business Express
ASUS TUF GAMING B650-E WIFI takes all the essential elements of the latest AM5 Socket for AMD Ryzen™ Desktop Processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard goes beyond expectations with rock-solid and stable performance for marathon gaming. TUF GAMING motherboards also undergo rigorous endurance testing to ensure that they can handle conditions where others may fail. Aesthetically, this model incorporates rugged off-black and geometric design elements to reflect the dependability and stability that defines the TUF GAMING series.
INTELLIGENT CONTROL
Comprehensive controls form the foundation of the ASUS TUF GAMING series. The TUF GAMING B650 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
CPU Performance Boost
AMD Precision Boost Overdrive(PBO) pushes the CPU current and voltage budget to opportunistically increase performance. By aggressively tuning the PBO parameters, AMD‘s algorithm can leverage the motherboard’s robust power solution to ramp up performance even higher.
ROCK-SOLID PERFORMANCE
With upgraded power delivery and comprehensive cooling options to fuel AMD's latest CPUs, plus support for faster memory and storage, TUF GAMING B650 motherboards are the perfect foundation for your next high-core-count AMD battle rig.
Teamed Power Stages
8(60A)+2(60A) power stages are each rated to handle 60 amperes, combining high-side and low-side MOSFETS and drivers into a single package to deliver power, efficiency and stable performance for all compatible AMD processors.
