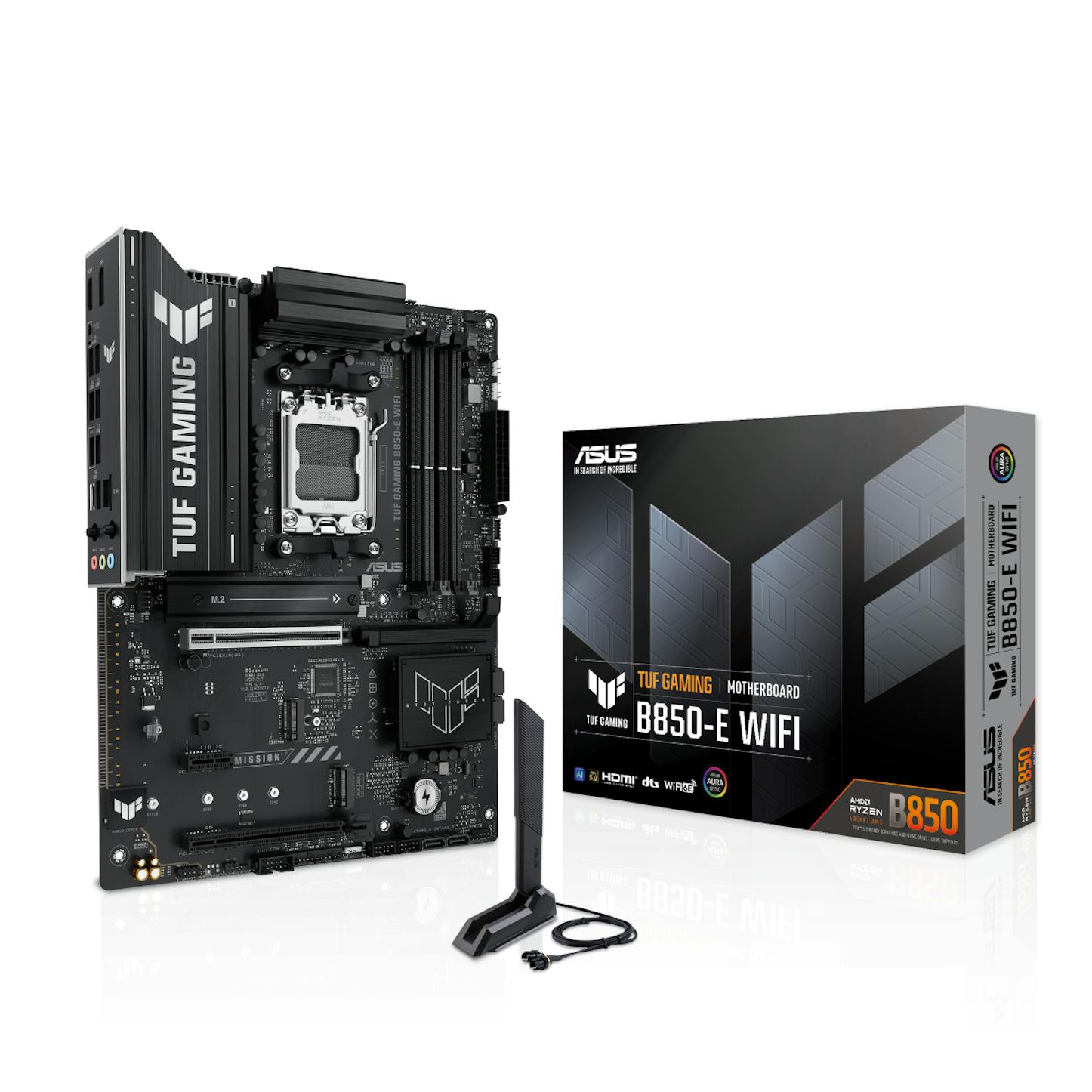

Asus TUF GAMING B850-E WIFI (Socket AM5) DDR5 ATX Motherboard
Product Technical Specification
| Form Factor | |
| Motherboard formfactor | ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 2.5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Colour | |
| Primary Colour | Black |
| Lighting | |
| Lighting / RGB | Yes |
| Motherboard | |
| Motherboard Chipset | AMD B850 |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Fan Header | |
| 4 Pin Fan Connectors | 7 |
| Memory | |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Memory slots | 4x |
| Internal Ports | |
| CPU Power Supply | 1x 4-Pin + 1x 8-Pin |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
| Component | Details |
|---|---|
| CPU | AMD Socket AM5 for Ryzen™ 9000, 8000, 7000 Series |
| Chipset | AMD B850 Chipset |
| Memory | 4 x DIMM, up to 256GB DDR5, up to 8000+MT/s (OC), ECC/Non-ECC, Dual Channel, EXPO™, AEMP |
| Graphics | 1 x DisplayPort (8K@30Hz), 1 x HDMI (4K@60Hz) |
| Expansion Slots |
Ryzen 9000 & 7000: 1 x PCIe 5.0 x16 Ryzen 8000: 1 x PCIe 4.0 x16 (x8/x4) B850 Chipset: 1 x PCIe 4.0 x16 (x1), 1 x PCIe 4.0 x1 |
| Storage |
3 x M.2 slots: - M.2_1 (PCIe 5.0/4.0 x4) - M.2_2 (PCIe 4.0 x4/x2) - M.2_3 (PCIe 4.0 x4) 4 x SATA 6Gb/s RAID support varies by CPU |
| Ethernet | 1 x Realtek 2.5Gb LAN, TUF LANGuard |
| Wireless & Bluetooth | Wi-Fi 6E (2x2), Bluetooth 5.3 |
| USB (Rear) |
2 x USB 10Gbps (1 x Type-A, 1 x Type-C) 3 x USB 5Gbps (Type-A) 3 x USB 2.0 (Type-A) |
| USB (Front) |
1 x USB 20Gbps Type-C 1 x USB 5Gbps header (2 ports) 2 x USB 2.0 headers (4 ports) |
| Audio |
Realtek 7.1 Surround HD Audio CODEC Jack-detection, Multi-streaming, 24-bit/192kHz Audio shielding, capacitors, dedicated PCB layers |
| Back Panel I/O |
2 x USB 10Gbps (Type-A, Type-C) 3 x USB 5Gbps, 3 x USB 2.0 1 x DisplayPort, 1 x HDMI 1 x Wi-Fi module 1 x 2.5Gb Ethernet 3 x Audio jacks 1 x BIOS FlashBack™ button |
| Internal I/O |
Fan: 1 x CPU, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Power: 1 x 24-pin, 1 x 8-pin, 1 x 4-pin Storage: 3 x M.2, 4 x SATA USB: 1 x USB 20Gbps (Type-C), 1 x USB 5Gbps (2 ports), 2 x USB 2.0 headers (4 ports) Others: RGB headers, Clear CMOS, COM, Audio, Front Panel |
| Special Features |
ASUS TUF Protection, Q-Design, EZ DIY tools Aura Sync, RGB Gen 2 headers Flexible M.2/VRM heatsinks, BIOS FlashBack™, Q-Antenna |
| Software |
Armoury Crate, AI Advisor, DriverHub, GlideX TurboV Core, TUF CPU-Z, DTS Audio Trials: Adobe CC, Norton 360, WinRAR UEFI BIOS, MyHotkey |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA cables, WiFi antenna, M.2 rubber & screws, TUF sticker, Quick start guide |
| OS Support | Windows 11, Windows 10 64-bit |
| Form Factor | ATX, 12 x 9.6 in (30.5 x 24.4 cm) |
| Form Factor | |
| Motherboard formfactor | ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 2.5 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Colour | |
| Primary Colour | Black |
| Lighting | |
| Lighting / RGB | Yes |
| Motherboard | |
| Motherboard Chipset | AMD B850 |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Fan Header | |
| 4 Pin Fan Connectors | 7 |
| Memory | |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Memory slots | 4x |
| Internal Ports | |
| CPU Power Supply | 1x 4-Pin + 1x 8-Pin |
