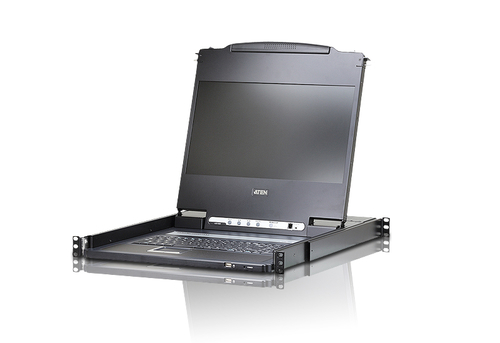

ATEN CL6700MW KVM switch Rack mounting Black
Product Technical Specification
| Ports & interfaces | |
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DVI-D |
| HDMI ports quantity | 2 |
| DVI-D ports quantity | 2 |
| Console ports | DVI-D,HDMI |
| Console USB ports quantity | 3 |
| USB connector type | USB Type-A,USB Type-B |
| Performance | |
| HD type | Full HD |
| Maximum resolution | 1920 x 1080 |
| Video bandwidth | 60 |
| DDC/DDC2 supported | Yes |
| DDC2B support | Yes |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Power |
| Push button | Yes |
| Hot keys | Yes |
| Keyboard language | Chinese Traditional,French,German,Greek,Hungarian,Italian,Japanese,Korean,Russian,Spanish,Swedish,Swiss,UK English,US English |
| Display | |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 17.3 |
| On Screen Display (OSD) | Yes |
| Power | |
| Power source | AC |
| AC input voltage | 100-240 |
| AC input frequency | 50 - 60 |
| Input current | 1 |
| Power consumption (typical) | 19.4 |
| System requirements | |
| Mac operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 480 |
| Depth | 589.2 |
| Height | 44 |
| Weight | 11380 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
The CL6700MW features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers.
Features:
-Integrated KVM console with a 17.3’’ LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
-Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
-Supports an external console with USB / DVI / VGA / HDMI connectors
-Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
-Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
-Audio support for connecting speakers
-Standard 105-key keyboard; Sun keyboard emulation
-Multiplatform support – Windows, Linux, Mac, and Sun
-Adjustable depth to fi t within the rack
-Firmware upgradeable
-Console lock – enables the console drawer to remain securely locked away in position when not in use
-DDC emulation – video settings of attached computers are automatically adjusted for optimal output to the monitor
-Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek
