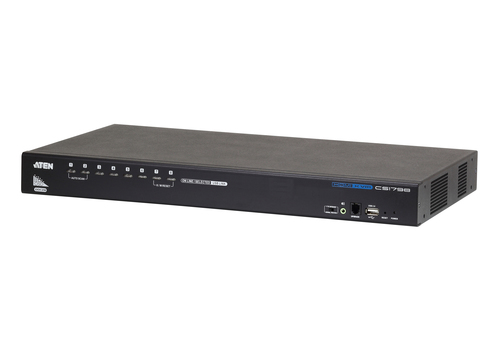

ATEN CS1798 KVM switch Rack mounting Black
Product Technical Specification
| Ports & interfaces | |
| Number of computers controlled | 512 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 9 |
| Console ports | 3.5mm headphone,HDMI,USB B |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB connector type | USB Type-B |
| USB version | 2.0 |
| Audio connections | Yes |
| Headphone outputs | 8 |
| DC-in jack | Yes |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 |
| Video bandwidth | 60 |
| HDCP | Yes |
| Hot-Plug support | Yes |
| Firmware upgradeable | Yes |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Keyboard language | Chinese Traditional,English,French,German,Greek,Hungarian,Italian,Japanese,Korean,Russian,Spanish,Swedish,Swiss,UK English,US English |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Power | |
| Power source | DC |
| DC input voltage | 5 |
| Power consumption (typical) | 12 |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 432.4 |
| Depth | 257.2 |
| Height | 44 |
| Weight | 3490 |
| Packaging content | |
| Cables included | KVM |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
Delivery Options
Economy Delivery (UK)
Business Express
In addition, the CS1798 features multi-display functionality, which enables the use of standard USB cables to stack up to 8 switches in a multi-display installation where each computer is fitted with multiple video cards. It allows users to contrast, analyze and monitor video output in convenient ways, substantially simplifying the working environment.
The CS1798 supporting ATEN’s on-screen display (OSD) function, allowing it to access any computer connected to the installation, which offers OSD configuration backup / restore functions to save or back up the OSD settings and restore them as needed. The CS1798 provides multimedia keyboard support and is audio enabled. Users can listen to the audio output of each computer on two sets of speakers (on a one at- a-time basis).
| Ports & interfaces | |
| Number of computers controlled | 512 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| HDMI ports quantity | 9 |
| Console ports | 3.5mm headphone,HDMI,USB B |
| Console USB ports quantity | 2 |
| USB hub | Yes |
| USB connector type | USB Type-B |
| USB version | 2.0 |
| Audio connections | Yes |
| Headphone outputs | 8 |
| DC-in jack | Yes |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 |
| Video bandwidth | 60 |
| HDCP | Yes |
| Hot-Plug support | Yes |
| Firmware upgradeable | Yes |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| Cascadable | Yes |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Keyboard language | Chinese Traditional,English,French,German,Greek,Hungarian,Italian,Japanese,Korean,Russian,Spanish,Swedish,Swiss,UK English,US English |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Power | |
| Power source | DC |
| DC input voltage | 5 |
| Power consumption (typical) | 12 |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 432.4 |
| Depth | 257.2 |
| Height | 44 |
| Weight | 3490 |
| Packaging content | |
| Cables included | KVM |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Rack mount kit | Yes |
| Logistics data | |
| Harmonized System (HS) code | 85176200 |
