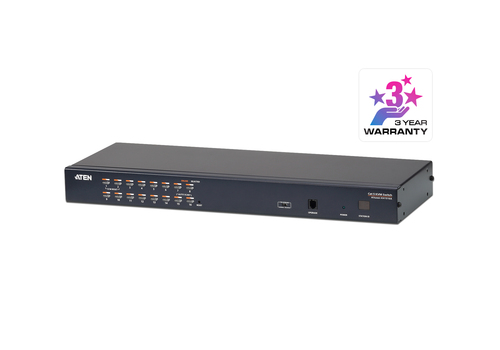

ATEN KH1516A KVM switch Rack mounting Black
Product Technical Specification
| Ports & interfaces | |
| Number of computers controlled | 512 |
| Keyboard port type | USB, PS/2 |
| Mouse port type | USB, PS/2 |
| Video port type | VGA |
| VGA (D-Sub) ports quantity | 1 |
| Console ports | PS/2,RJ–45,USB A,VGA (D-Sub) |
| Console USB ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| USB connector type | USB Type-A |
| PS/2 ports quantity | 2 |
| DC-in jack | No |
| Network | |
| Ethernet LAN (RJ-45) ports | 16 |
| Performance | |
| HD type | WUXGA |
| Maximum resolution | 1920 x 1200 |
| Video bandwidth | 75 |
| Scan interval | 1,255 |
| Daisy chain | Yes |
| Maximum operating distance | 50 |
| Firmware upgradeable | Yes |
| Design | |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | Yes |
| Power | |
| Power source | AC |
| AC input voltage | 100-240 |
| AC input frequency | 50 - 60 |
| Output current | 1 |
| Power consumption (typical) | 6.1 |
| System requirements | |
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | Yes |
| Sustainability | |
| Sustainability certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 0 - 80 |
| Weight & dimensions | |
| Width | 437.2 |
| Depth | 163.6 |
| Height | 44 |
| Weight | 2670 |
| Packaging content | |
| Cables included | AC |
| Quick installation guide | Yes |
| Rack mount kit | Yes |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
These switches have been designed with unique and powerful features that enable administrators to manage their entire server room and data center devices easily and conveniently.
For example, the advanced Adapter ID feature stores the Adapter Cable's configuration information – such as its ID, port name, OS, keyboard language, etc. This feature allows administrators to relocate servers to different ports without having to reconfigure the adapters . Another advantage found in these switches is Full HD video quality – extending the distance to the servers to up to 30 m at a resolution of 1920 x 1200 *.
In addition, the switches are compatible with ATEN KVM adapter cable. This allows flexible interface combinations (PS/2, USB with VGA, DVI, HDMI and DisplayPort video interface, Sun and serial) to control all computer types.
A KH1516A installation provides one of the best, and most economical, solutions ATEN offers to the SMB market. There is no better way to save time, space, and money than with a KH1516A KVM switch.
Note:
*The video quality of KH1516A has been enhanced to Full HD. To distinguish between the non-FHD and FHD versions, please refer to below link: FHD & Non-FHD Comparison Photo
*For video resolution 1920 x 1200 @ 60Hz, a KA71XX or KA75XX series KVM adapter is required.
*The KH1516A does not support virtual media even when paired with a virtual media-enabled KVM adapter.
