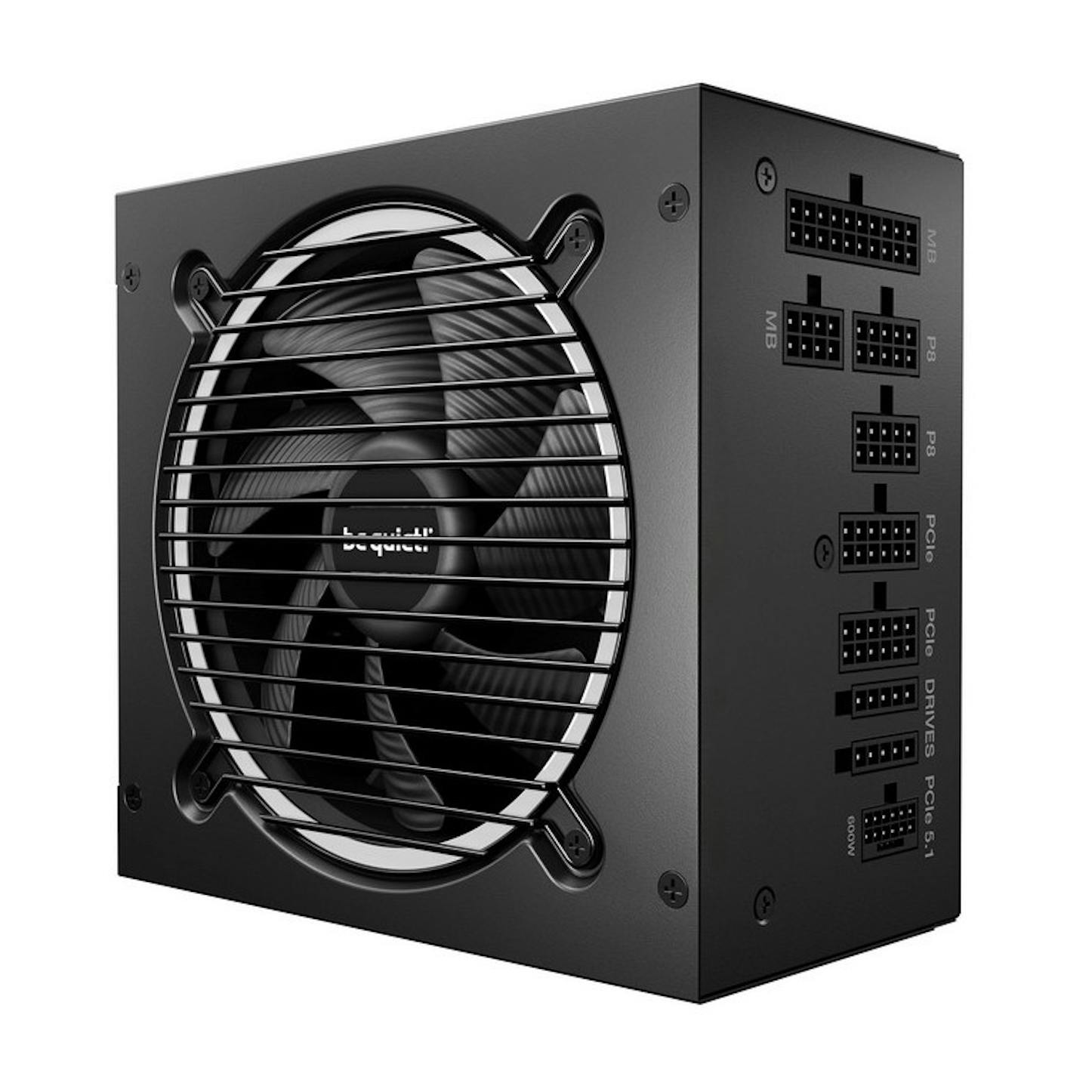

be quiet! Pure Power 13 M 1200W ATX 3.1 PCIe 5.1 80 Plus Gold Modular Power Supply
Product Technical Specification
| Power Specifications | |
| Total Power Output | 1200 W |
| Power Output +3.3V & +5V (combined) | 120 W |
| Power Output +12V rails | 1200 W |
| Efficiency Class | |
| 80PLUS Efficiency | 80 PLUS Gold |
| Cybenetics Efficiency Level ETA (230V) | GOLD |
| Cybenetics Noise Level LAMDA (230V) | A |
| Dimensions | |
| Length / Depth | 160 mm |
| Width | 150 mm |
| Height | 86 mm |
| Weight | 2.69 kg |
| Lighting | |
| Lighting / RGB | No |
| Colour | |
| Primary Colour | Black |
| Fan Specifications | |
| Fan Size | 120 mm |
| Power Supply | |
| PSU Format | ATX |
| ATX Standard | ATX 3.1 |
| 12V Distribution | single rail |
| Modular Power Supply | Yes |
| Modular Type | fully modular |
| Protection Circuits | OVP (Overvoltage and Undervoltage Protection), UVP (Undervoltage Protection), SCP (Short-Circuit Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OCP (Overcurrent Protection), SIP (Surge & Inrush Protection) |
| Internal Ports | |
| CPU Power Connectors 12V ATX/EPS | 2 |
| CPU Power Supply | 1x 4+4-Pin + 1x 8-Pin |
| 12V-2x6 Power Connectors | 1 |
| 6+2 Pin PCIe Power Connectors | 4 |
| SATA Power Connectors | 6 |
| 4 Pin Molex Power Connectors | 2 |
| Cooling | |
| Semi Passive Power Supply | Yes |
| Cable Specifications | |
| Max. CPU Power Cable Length | 650 mm |
| Max. 24-Pin Motherboard Power Cable Length | 550 mm |
| Max. 12V-2x6 Cable Length | 600 mm |
| Max. PCIe Power Cable Length | 650 mm |
| Max. SATA Power Cable Length | 950 mm |
| Compatibility | |
| Compatibility Note | Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
Exceptional quiet, superior features
Pure Power 13 M 1200W is an ATX 3.1 compliant and PCIe 5.1 compatible power supply with semi-passive cooling. It offers peerless dependability with best-in-class features. Pure Power 13 M 1200W offers the best combination of features with outstanding compatibility.
- 80 PLUS® Gold efficiency (up to 93.5%)
- ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors
- Exceptionally silent semi-passive 120mm be quiet! fan
- Semi-passive construction for quiet and energy-saving operation
- LLC technology for advanced stability and voltage regulation
- One massive high-performance 12V-rail
- One PCIe 5.1 12V-2x6 600W and 4 PCIe 6+2 connectors for overclocked high-end GPUs
80 PLUS® GOLD CERTIFIED
Very high operating efficiency
Pure Power 13 M 1200W is certified 80 PLUS Gold with an outstanding efficiency rating of up to 93.5%. The most compelling benefit: lower power consumption, consequently lower costs, and above all a cooler as well as quieter operation. Pure Power 13 M 1200W is always the correct choice for quiet systems and gaming PCs!
FUTURE-PROOF YOUR SYSTEM
Fulfills all ATX 3.1 specifications
Pure Power 13 M 1200W is an ATX 3.1 PSU and comes with both native integration of the 12V-2x6 connector for next-generation PCIe 5.1 graphics cards, and 4 PCIe 6+2-pin connectors for support of current-gen GPUs. This makes the PSU extremely versatile and the perfect choice for powerful systems of today and the ones to come.
THE NEW STANDARD OF POWER
For massive transient loads
Pure Power 13 M offers 1200W of continuous power with one massive 12V rail. Even if the graphics card demands excessive power for a short time: Pure Power 13 M 1200W handles power excursions up to double its rated power with ease. This ensures reliable operation with the next generation of processors and graphics cards.
SEMI-PASSIVE ZERO-RPM COOLING
Enjoy the silence
While under low load, the fan turns off completely until its services are needed again for more demanding operations. This feature, combined with the reliable be quiet! fan and its airflow-optimized fan blades, make Pure Power 13 M 1200W exceptionally silent in all load scenarios.
HIGH-CLASS TECHNOLOGIES
Rock-solid stability
With its LLC topology Pure Power 13 M 1200W provides best-in-class voltage regulation and efficiency. That makes it perfect for building very quiet systems or upgrading gaming and media creation PCs.
MODULAR CABLES
Utmost convenience and compatibilityThanks to their modularity, all unnecessary cables in the system are left out. Pure Power 13 M 1200W simplifies cable management and routing for a tidy-looking system. A smoother airflow results from the uncluttered layout of the system, which means lower noise and temperatures inside the case.
| Power Specifications | |
| Total Power Output | 1200 W |
| Power Output +3.3V & +5V (combined) | 120 W |
| Power Output +12V rails | 1200 W |
| Efficiency Class | |
| 80PLUS Efficiency | 80 PLUS Gold |
| Cybenetics Efficiency Level ETA (230V) | GOLD |
| Cybenetics Noise Level LAMDA (230V) | A |
| Dimensions | |
| Length / Depth | 160 mm |
| Width | 150 mm |
| Height | 86 mm |
| Weight | 2.69 kg |
| Lighting | |
| Lighting / RGB | No |
| Colour | |
| Primary Colour | Black |
| Fan Specifications | |
| Fan Size | 120 mm |
| Power Supply | |
| PSU Format | ATX |
| ATX Standard | ATX 3.1 |
| 12V Distribution | single rail |
| Modular Power Supply | Yes |
| Modular Type | fully modular |
| Protection Circuits | OVP (Overvoltage and Undervoltage Protection), UVP (Undervoltage Protection), SCP (Short-Circuit Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OCP (Overcurrent Protection), SIP (Surge & Inrush Protection) |
| Internal Ports | |
| CPU Power Connectors 12V ATX/EPS | 2 |
| CPU Power Supply | 1x 4+4-Pin + 1x 8-Pin |
| 12V-2x6 Power Connectors | 1 |
| 6+2 Pin PCIe Power Connectors | 4 |
| SATA Power Connectors | 6 |
| 4 Pin Molex Power Connectors | 2 |
| Cooling | |
| Semi Passive Power Supply | Yes |
| Cable Specifications | |
| Max. CPU Power Cable Length | 650 mm |
| Max. 24-Pin Motherboard Power Cable Length | 550 mm |
| Max. 12V-2x6 Cable Length | 600 mm |
| Max. PCIe Power Cable Length | 650 mm |
| Max. SATA Power Cable Length | 950 mm |
| Compatibility | |
| Compatibility Note | Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website. |
