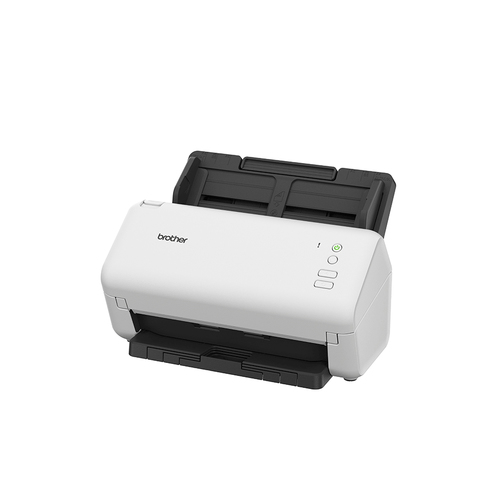

Brother ADS-4100 Desktop document scanner
Product Technical Specification
| Scanning | |
| Maximum scan size | 215.9 x 355.6 |
| Optical scanning resolution | 600 x 600 |
| Enhanced scan resolution | 1200 x 1200 |
| Colour scanning | Yes |
| Duplex scanning | Yes |
| Input colour depth | 48 |
| Output colour depth | 24 |
| Output greyscale depth | 8 |
| Greyscale levels | 256 |
| ADF scan speed (b/w, A4) | 35 |
| ADF scan speed (colour, A4) | 35 |
| Duplex ADF scan speed (b/w, A4) | 70 |
| Duplex ADF scan speed (colour, A4) | 70 |
| Design | |
| Scanner type | ADF scanner |
| Product colour | Black,White |
| Control type | Buttons |
| Built-in display | No |
| Performance | |
| Sensor type | CIS |
| Light source | LED |
| Scan file formats | JPEG,PDF,TIFF |
| Daily duty cycle (max) | 5250 |
| Maximum duty cycle | 105000 |
| Scan to | Image,PC,USB |
| Scan drivers | ICA,SANE,TWAIN,WIA |
| Scanning noise level | 59 |
| Input capacity | |
| Auto document feeder (ADF) input capacity | 60 |
| Paper handling | |
| Scanning media types supported | Business Card,Plain paper,Plastic Card,Recycled paper,Thick paper,Thin paper |
| Long-paper mode | Yes |
| Maximum ISO A-series paper size | A4 |
| Media thickness (min) | 0.08 |
| Card thickness (max) | 1.1 |
| Paper tray media weight | 40 - 200 |
| Auto Document Feeder (ADF) media weight | 40 - 200 |
| Maximum scan width | 215.9 |
| Maximum scan length | 5000 |
| Ports & interfaces | |
| USB port | Yes |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| Power | |
| Power supply type | AC |
| Power consumption (typical) | 23 |
| Power consumption (standby) | 5.4 |
| Power consumption (off) | 0.1 |
| AC input frequency | 50/60 |
| Power consumption (sleep) | 1.4 |
| Output voltage | 24 |
| Output current | 1.9 |
| Packaging data | |
| Quantity per pack | 1 |
| Package width | 391 |
| Package depth | 243 |
| Package height | 320 |
| Package weight | 3310 |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 |
| Storage temperature (T-T) | -20 - 60 |
| Operating relative humidity (H-H) | 20 - 80 |
| Storage relative humidity (H-H) | 10 - 90 |
| Certificates | |
| Certification | GS Mark, WHQL |
| Weight & dimensions | |
| Width | 299.5 |
| Depth | 215.9 |
| Height | 190.5 |
| Weight | 2600 |
| Packaging content | |
| Cables included | AC,USB |
| Other features | |
| Cable lock slot | Yes |
| Technical details | |
| Sustainability certificates | RoHS |
Delivery Options
Economy Delivery (UK)
Business Express
Simple and intuitive. This highly versatile scanner is ideal for businesses that need to digitise a wide range of media, from paper to plastic cards, whether at home or in the office.
Fast and reliable
With high-quality and robust roller mechanisms, the ADS-4100 has a large 60 sheet ADF capacity and can scan up to 35 pages per minute.
Simple and intuitive
Design simplicity means it's easy to set up and easy to use.
Advanced connectivity
With USB3.0 and USB host, you can securely scan documents without the need for a PC.
Advanced image capture and processing
Effortless and impressive image capture and processing - from easily referencing and locating scanned pages with the digital imprinter, to optimising image quality through the automatic vertical streaks and moiré reduction tools.
Brother ScanEssentials Lite
Our ScanEssentials Lite software enables you to scan documents easily, create simple workflows and save them securely to folders on your network, with minimum effort.
Industry recognised software
Increase post-scanning productivity with industry recognised software including Kofax and Newsoft, available as standard with device.
