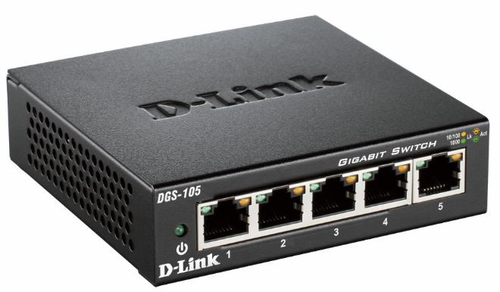

D-Link DGS-105 Unmanaged Black

Manufacturer: D-Link | Model: DGS-105/B | Product ID: 4297
£22.51 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Power connectorDC-in jack
Network
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
10G supportYes
Copper ethernet cabling technology1000BASE-T,100BASE-TX,10BASE-T
Full duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Data transmission
Supported data transfer rates10/100/1000 Mbps
Switching capacity10
MAC address table2000
Store-and-forwardYes
Maximum data transfer rate1
Jumbo frames supportYes
Packet buffer memory0.128
Security
MAC address filteringYes
Design
Rack mountingNo
Product colourBlack
Housing materialMetal
CertificationFCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
Performance
Mean time between failures (MTBF)1688338
Technical details
Shipping (inner) case height366
Shipping (inner) case width230
Shipping (inner) case length335
Shipping (inner) case net weight5000
Products per shipping (inner) case10
Pallet gross weight (air)452500
Master (outer) cases per pallet (air)75
Products per pallet (air)750
Pallet gross length1100
Pallet gross width1200
Pallet height (air)2040
Pallet gross weight (sea)452500
Master (outer) cases per pallet (sea)75
Products per pallet (sea)750
Pallet height (sea)2040
Shipping (inner) case gross weight5700
Power
Input current1
Input voltage5
Power consumption (typical)2.1
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-10 - 70
Operating relative humidity (H-H)10 - 90
Storage relative humidity (H-H)5 - 90
Weight & dimensions
Weight286
Packaging data
Package width170
Package depth220
Package height62
Package weight500
Logistics data
Harmonized System (HS) code85176990
Other features
Data transfer rate2000
Dimensions (WxDxH)100 x 98 x 28
Connectivity technologyWired

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Wed 26th Aug 2026 to Sat 29th Aug 2026
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Tue 25th Aug 2026 to Thu 27th Aug 2026
View all Delivery Options & International Rates
- Plug and Play operation
- 5 Gigabit Ethernet ports
- Non-blocking architecture: simultaneous full speed on all ports
- Fanless, silent operation to fit in any environment
- Quality of Service (QoS) queues for traffic prioritisation
- Solidly built with metal housing
- Cable diagnostics function to detect faulty network cables
- D-Link Green™ technology, saves energy and increases the product’s lifespan

D-Link’s DGS-105 Gigabit Ethernet switch provides a cost-effective way for SOHO and SMB to create a small network and connect computers, wireless Access Points, IP cameras, network printers and other Ethernet devices quickly and easily without complicated configurations. This switch comes with 5 Gigabit Ethernet ports with an auto-sensing function to detect the maximum speed of the connected devices, allowing you to run your network with the best possible performance. Its fanless design makes the DGS-105 completely silent, ideal for offices, libraries or meeting rooms.

Robust design

The DGS-105 is designed with durability and performance in mind. The sturdy metal housing will protect the switch against accidental harm, while helping to dissipate heat and to reduce stress on internal components. The visible LEDs allow for an easy reading of each port status and speed, helping to troubleshoot connectivity problems. For a convenient placement, the DGS-105 comes with a wall mounting kit and a slot for a Kensington security lock to protect it from theft.

QoS (Quality of Service)

Despite being an unmanaged, Plug and Play switch, the DGS-105 is able to classify network traffic by assessing the 802.1p field in the Ethernet frames, and forward them out of its ports depending on their priority. This allows for a smooth integration of video, voice and data traffic without delays or loss of quality.

Cable diagnostics function

The cable diagnostics function enables users to quickly troubleshoot faulty network cables that may lead to transmission errors. At startup, the switch performs a micro-test to assess the quality of the cables connected to its ports. If a fault is detected, the ambar LED will lit up. If the cables pass the test, the green LED will be illuminated, indicating that the network is error-free. This feature can save valuable time when trying to single out a faulty cable that causes problems in the whole network.

Power-saving technology

The DGS-105 is part of D-Link Green™, D-Link’s eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. This switch implements the 802.3az Energy Efficient Ethernet (EEE) standard, which can save a substantial amount of energy by detecting the port status, putting them in low-power, stand-by mode when no network traffic is detected. Additionally, the Green Ethernet™ technology in the DGS-105 can detect the length of the network cables connected to its ports and provide only the right amount of energy required. This helps businesses to save money by reducing their electricity bills with no compromise on performance.
Management features
Switch typeUnmanaged
Quality of Service (QoS) supportYes
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Power connectorDC-in jack
Network
Networking standardsIEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x
10G supportYes
Copper ethernet cabling technology1000BASE-T,100BASE-TX,10BASE-T
Full duplexYes
Flow control supportYes
Auto MDI/MDI-XYes
Data transmission
Supported data transfer rates10/100/1000 Mbps
Switching capacity10
MAC address table2000
Store-and-forwardYes
Maximum data transfer rate1
Jumbo frames supportYes
Packet buffer memory0.128
Security
MAC address filteringYes
Design
Rack mountingNo
Product colourBlack
Housing materialMetal
CertificationFCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB, RoHS
Performance
Mean time between failures (MTBF)1688338
Technical details
Shipping (inner) case height366
Shipping (inner) case width230
Shipping (inner) case length335
Shipping (inner) case net weight5000
Products per shipping (inner) case10
Pallet gross weight (air)452500
Master (outer) cases per pallet (air)75
Products per pallet (air)750
Pallet gross length1100
Pallet gross width1200
Pallet height (air)2040
Pallet gross weight (sea)452500
Master (outer) cases per pallet (sea)75
Products per pallet (sea)750
Pallet height (sea)2040
Shipping (inner) case gross weight5700
Power
Input current1
Input voltage5
Power consumption (typical)2.1
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)0 - 50
Storage temperature (T-T)-10 - 70
Operating relative humidity (H-H)10 - 90
Storage relative humidity (H-H)5 - 90
Weight & dimensions
Weight286
Packaging data
Package width170
Package depth220
Package height62
Package weight500
Logistics data
Harmonized System (HS) code85176990
Other features
Data transfer rate2000
Dimensions (WxDxH)100 x 98 x 28
Connectivity technologyWired
