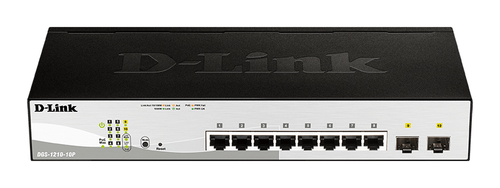

D-Link DGS-1210-10P network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black
Product Technical Specification
| Management features | |
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Yes |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 8 |
| SFP module slots quantity | 2 |
| Power connector | DC-in jack |
| Network | |
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| 10G support | No |
| Copper ethernet cabling technology | 10BASE-T,100BASE-T,1000BASE-T |
| Cable types supported | Cat5,Cat5e |
| Port mirroring | Yes |
| Full duplex | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Data transmission | |
| Switching capacity | 20 |
| Forwarding rate | 14.88 |
| MAC address table | 8000 |
| Store-and-forward | Yes |
| Packet buffer memory | 0.512 |
| Security | |
| Access Control List (ACL) | Yes |
| MAC address filtering | Yes |
| Multicast features | |
| Multicast support | Yes |
| Design | |
| Rack mounting | Yes |
| Stackable | Yes |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Certification | EMI: CE Class A, VCCI Class A, FCC Class A, BSMI, CCC |
| Performance | |
| Mean time between failures (MTBF) | 729258 |
| Technical details | |
| Shipping (inner) case height | 317 |
| Shipping (inner) case width | 346 |
| Shipping (inner) case length | 382 |
| Shipping (inner) case net weight | 11050 |
| Products per shipping (inner) case | 5 |
| Pallet gross weight (air) | 449508 |
| Master (outer) cases per pallet (air) | 36 |
| Products per pallet (air) | 180 |
| Pallet gross length | 1100 |
| Pallet gross width | 1200 |
| Pallet height (air) | 1403 |
| Pallet gross weight (sea) | 662012 |
| Master (outer) cases per pallet (sea) | 54 |
| Products per pallet (sea) | 270 |
| Pallet height (sea) | 2037 |
| Shipping (inner) case gross weight | 11778 |
| Power | |
| Power consumption (max) | 80.6 |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) | Yes |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet plus (PoE+) ports quantity | 2 |
| Total Power over Ethernet (PoE) budget | 78 |
| Operational conditions | |
| Operating temperature (T-T) | -5 - 50 |
| Storage temperature (T-T) | -20 - 70 |
| Operating relative humidity (H-H) | 0 - 95 |
| Storage relative humidity (H-H) | 0 - 95 |
| Heat dissipation | 373.96 |
| Weight & dimensions | |
| Width | 280 |
| Depth | 126 |
| Height | 44 |
| Weight | 950 |
| Packaging data | |
| Package width | 288 |
| Package depth | 331 |
| Package height | 72 |
| Package weight | 2210 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
Delivery Options
Economy Delivery (UK)
Business Express
With increased PoE output, advanced Layer 2 management features, and Layer 3 static routing , D‑Link’s DGS‑1210 Smart+ Managed Gigabit Switches provide a cost‑efficient and flexible solution for expanding any business network.
Advanced Layer 2 Management with Layer 3 Static Routing
The DGS-1210 Smart+ family has advanced network management options, accessible via Compact CLI or the Web-based UI, that equip your business with network capabilities such as VLANs, multiple spanning tree protocol (MSTP), link aggregation (LACP), static routing, dual software images, and dual configuration files.
With powerful security features like IGMP snooping, access control lists, port security, and the unique D-Link Safeguard Engine that protects your network against malicious denial-of-service attacks from broadcast, multicast and unicast flooding, the DGS-1210 Smart+ family is a versatile solution for access-edge network environments.
Fibre Uplinks
Use fibre uplinks to connect across longer distances, like factory lines and university campuses, using lightweight, secure, and energy‑efficient fibre optic cabling that’s immune to interference and which has access to higher throughput to protect the future demands of your business network.
PoE and PoE+, with budgets up to 370W
The DGS-1210 Smart+ Series includes a range of high power budget PoE-enabled switches for business looking to power larger deployments of VoIP phones, wireless access points or network cameras.
Free Network Design and Management Software
D-Link’s free Network Assistant (DNA) displays all connected devices and speeds up the first time configuration. The free D-View 7 Network Management System comes with a license for 25 nodes and 2 probes and full access to the management tools. Optional upgrade licenses allow you to broaden your network and analysis.
Smart Energy‑Saving Design
D-Link Green technology enables the DGS-1210 Smart+ series to save power without any sacrifices. The majority of the family utilises a fanless design, otherwise they feature a smart fan that powers on above a certain temperature. All come with advanced silicon technology which saves up to 73% of energy compared to a normal switch.
Surveillance Mode
Select Surveillance Mode in the Web UI to take advantage of easy‑to‑use surveillance features which enable you to manage your surveillance network effortlessly. It automatically detects your security devices and segments them into a dedicated Auto Surveillance VLAN to handle video surveillance traffic securely and efficiently.
