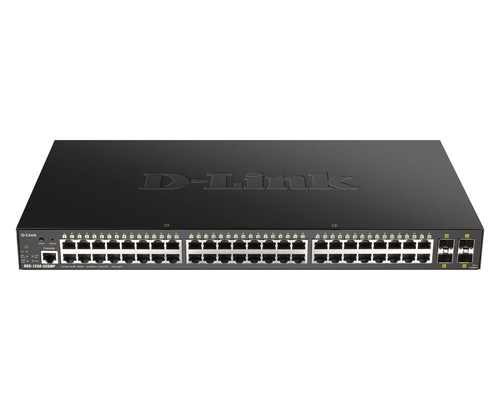

D-Link DGS-1250-52XMP network switch Managed L3 None Power over Ethernet (PoE) Black

Manufacturer: D-Link | Model: DGS-1250-52XMP | Product ID: 7001
£617.73 (inc. VAT)
1 in stock
100% Money Back Guarantee - Risk Free

Product Technical Specification

Management features
Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
Configuring Location Settings (CLI)Yes
System event logYes
MIB supportRFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2021, RFC271, RFC1757, RFC2819, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC2573, RFC2575, RFC2576, RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2620,
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeNone
SFP+ module slots quantity4
Console portRJ-45
Network
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G supportYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
VLAN supportYes
Virtual LAN featuresVoice VLAN
Number of VLANs4094
Data transmission
Switching capacity176
Forwarding rate130.95
MAC address table32000
Static routeYes
Number of static routes124
Jumbo frames supportYes
Jumbo frames12000
Packet buffer memory16
Security
DHCP featuresDHCP client,DHCP server,DHCP snooping
Access Control List (ACL)Yes
Access Control List (ACL) rules768
IGMP snoopingYes
Security algorithmsEAP,LEAP,PEAP,SSH,TTLS
Loop protectionYes
IP-MAC-Port bindingYes
Queue scheduling algorithmsWeighted Round Robin (WRR)
Multicast features
Multicast supportYes
Design
Rack mountingYes
Product colourBlack
LED indicatorsActivity,Link,Power,Speed
Electromagnetic compatibilityCE A, VCCI A, FCC A, IC, BSMI
CertificationCB, UL, BSMI, CCC
Performance
Memory typeDDR3-SDRAM
Internal memory2048
Flash memory64
Noise level51.2
Mean time between failures (MTBF)309053.1
Technical details
Shipping (inner) case height428
Shipping (inner) case width478
Shipping (inner) case length585
Shipping (inner) case net weight22855
Products per shipping (inner) case5
Pallet gross weight (air)456100
Master (outer) cases per pallet (air)16
Products per pallet (air)80
Pallet gross length1100
Pallet gross width1200
Pallet height (air)1847
Pallet gross weight (sea)456100
Master (outer) cases per pallet (sea)16
Products per pallet (sea)80
Pallet height (sea)1847
Shipping (inner) case gross weight27350
Power
Power supply includedYes
AC input voltage100 - 240
AC input frequency50 - 60
Power consumption (max)467.3
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity48
Power over Ethernet (PoE) power per port15.4
Total Power over Ethernet (PoE) budget370
Operational conditions
Operating temperature (T-T)-5 - 50
Storage temperature (T-T)-20 - 70
Operating relative humidity (H-H)0 - 95
Storage relative humidity (H-H)0 - 95
Heat dissipation1512.676
Weight & dimensions
Width440
Depth430
Height44
Weight3850
Packaging data
Package width393
Package depth563
Package height89
Package weight5170
Logistics data
Harmonized System (HS) code85176990

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Wed 26th Aug 2026 to Sat 29th Aug 2026
Business Express
£6.95
Business Express

Business Express

Estimated delivery date: Tue 25th Aug 2026 to Thu 27th Aug 2026
View all Delivery Options & International Rates
Power & Value
The D-Link DGS-1250 Series Smart Managed Switches deliver real value as an Enterprise Access and Small-to-Medium Business (SMB) Access/Aggregation solution. They provide a range of physical interfaces (including a Console Port w/full CLI), multiple management interfaces, 11 Web languages, QoS enablement, and Advanced Layer-2 w/Lite Layer-3 features.

The DGS-1250 Series switches support 24 or 48 x 10/100/1000BASE-T ports, with each switch also supporting an additional 4 x 10G SFP+ ports for optical connections using multimode or single-mode SFP transceivers – enabling real network horsepower at a value price.

Easy Maintenance, Less Downtime
The DGS-1250 Series supports Dual Image and Dual Configuration functionality, as well as a Console Port, all of which make it easier to configure, troubleshoot, and make other changes without interfering with network operation, while full Command Line Interface (CLI) functionality enables remote configuration, without the need for the Internet. And if a network issue ever does occur, the supported Spanning Tree Protocols (STP/RSTP/MSTP) help keep things running without interruptions or downtime.

Automatic Configuration
The DGS-1250 Series supports Auto Voice VLAN and Surveillance Mode, which allow Voice and Video traffic to be automatically identified and handled differently from regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied.

High PoE Budget (370W)
The DGS-1250 series offers Power-over-Ethernet (PoE), which simplifies deployment of IP cameras, VoIP phones, Wireless Access Points, and other powered devices. Using the switch’s management interface, an administrator can control various PoE functions, such as remotely rebooting Cameras or Access Points, from anywhere on the network, including over the Internet. All PoE models support the IEEE 802.3af and 802.3at standards.

Extensive Management and Advanced Features
The DGS-1250 Series comes with IGMP snooping, Port Mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfers. The series also supports advanced features such as Static Routing, which allows for communication between different user groups in different VLAN segments in a network.

Management Versatility
The DGS-1250 Series comes with the D-Link Network Assistant (DNA) utility so admins can remotely control their network to the port level. DNA allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them onscreen for instant access.
Management features
Switch typeManaged
Switch layerL3
Quality of Service (QoS) supportYes
Web-based managementYes
Configuring Location Settings (CLI)Yes
System event logYes
MIB supportRFC2893, RFC4213, RFC4291, RFC2464, RFC2462, RFC4862, RFC2461, RFC4861, RFC2573, RFC1321, RFC2284, RFC2865, RFC2716, RFC3580, RFC826, RFC2463, RFC4443, RFC792, RFC793, RFC768, RFC791, RFC2389, RFC4113, RFC4022, RFC2618, RFC2674, RFC1398, RFC1643, RFC1650, RFC2358, RFC2665, RFC2021, RFC271, RFC1757, RFC2819, RFC1442, RFC1901, RFC1902, RFC1903, RFC1904, RFC1905, RFC1906, RFC1907, RFC1908, RFC2578, RFC3418, RFC2573, RFC2575, RFC2576, RFC1212, RFC1213, RFC1215, RFC1493, RFC1157, RFC2620,
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity48
Basic switching RJ-45 Ethernet ports typeNone
SFP+ module slots quantity4
Console portRJ-45
Network
Networking standardsIEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3ae,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
10G supportYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Spanning tree protocolYes
Head-of-line (HOL) blockingYes
VLAN supportYes
Virtual LAN featuresVoice VLAN
Number of VLANs4094
Data transmission
Switching capacity176
Forwarding rate130.95
MAC address table32000
Static routeYes
Number of static routes124
Jumbo frames supportYes
Jumbo frames12000
Packet buffer memory16
Security
DHCP featuresDHCP client,DHCP server,DHCP snooping
Access Control List (ACL)Yes
Access Control List (ACL) rules768
IGMP snoopingYes
Security algorithmsEAP,LEAP,PEAP,SSH,TTLS
Loop protectionYes
IP-MAC-Port bindingYes
Queue scheduling algorithmsWeighted Round Robin (WRR)
Multicast features
Multicast supportYes
Design
Rack mountingYes
Product colourBlack
LED indicatorsActivity,Link,Power,Speed
Electromagnetic compatibilityCE A, VCCI A, FCC A, IC, BSMI
CertificationCB, UL, BSMI, CCC
Performance
Memory typeDDR3-SDRAM
Internal memory2048
Flash memory64
Noise level51.2
Mean time between failures (MTBF)309053.1
Technical details
Shipping (inner) case height428
Shipping (inner) case width478
Shipping (inner) case length585
Shipping (inner) case net weight22855
Products per shipping (inner) case5
Pallet gross weight (air)456100
Master (outer) cases per pallet (air)16
Products per pallet (air)80
Pallet gross length1100
Pallet gross width1200
Pallet height (air)1847
Pallet gross weight (sea)456100
Master (outer) cases per pallet (sea)16
Products per pallet (sea)80
Pallet height (sea)1847
Shipping (inner) case gross weight27350
Power
Power supply includedYes
AC input voltage100 - 240
AC input frequency50 - 60
Power consumption (max)467.3
Power over Ethernet (PoE)
Power over Ethernet (PoE)Yes
Power over Ethernet (PoE) ports quantity48
Power over Ethernet (PoE) power per port15.4
Total Power over Ethernet (PoE) budget370
Operational conditions
Operating temperature (T-T)-5 - 50
Storage temperature (T-T)-20 - 70
Operating relative humidity (H-H)0 - 95
Storage relative humidity (H-H)0 - 95
Heat dissipation1512.676
Weight & dimensions
Width440
Depth430
Height44
Weight3850
Packaging data
Package width393
Package depth563
Package height89
Package weight5170
Logistics data
Harmonized System (HS) code85176990
