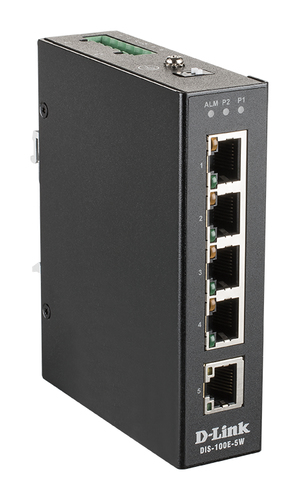

D-Link DIS-100E-5W network switch Unmanaged L2 Fast Ethernet (10/100) Black

Manufacturer: D-LINK - VALUE | Model: DIS-100E-5W | Product ID: 0727
£168.61 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Management features
Switch typeUnmanaged
Switch layerL2
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity5
Basic switching RJ-45 Ethernet ports typeFast Ethernet (10/100)
Relay outputs1
Network
Networking standardsIEEE 802.3x
10G supportNo
Copper ethernet cabling technology10BASE-T,100BASE-TX,100BASE-T
Full duplexYes
Flow control supportYes
Broadcast storm controlYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Data transmission
MAC address table1000
Store-and-forwardYes
Design
Rack mountingYes
StackableYes
Product colourBlack
International Protection (IP) codeIP30
Wall mountableYes
DIN rail mountingYes
CertificationUL 60950‑1 CE FCC
Performance
Plug and PlayYes
Mean time between failures (MTBF)219000
Technical details
Shipping (inner) case height200
Shipping (inner) case width305
Shipping (inner) case length430
Shipping (inner) case net weight5780
Products per shipping (inner) case10
Pallet gross weight (air)226440
Master (outer) cases per pallet (air)36
Products per pallet (air)360
Pallet gross length1200
Pallet gross width1100
Pallet height (air)1350
Pallet gross weight (sea)330660
Master (outer) cases per pallet (sea)54
Products per pallet (sea)540
Pallet height (sea)1950
Shipping (inner) case gross weight5790
Power
DC input voltage12 - 58
Power consumption (typical)0.95
Power consumption (max)1.56
Power over Ethernet (PoE)
Power over Ethernet (PoE)No
Operational conditions
Operating temperature (T-T)-40 - 75
Storage temperature (T-T)-40 - 85
Operating relative humidity (H-H)5 - 95
Weight & dimensions
Width29.1
Depth89.4
Height109.2
Weight320
Packaging data
Package width140
Package depth178
Package height83
Package weight488
Logistics data
Harmonized System (HS) code85176990

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
Unmanaged Plug and Play
Plug in and go. The DIS-100E-5W reliably forwards Ethernet frames.

Fast Ethernet Connectivity
Designed with 5 x 10/100BaseT(X) Fast Ethernet ports to suit your network layout.

Officially Certified
Certifications for vibration, shock, free-fall and electromagnetic compatibility to maximise network uptime in a variety of deployment environments, including smart city surveillance, factory automation, and outdoor wireless networks.

Withstands Extreme Temperatures
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +75°C, and can cold start from -40°C.

Strong Build
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.

Fast Deployment
For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.

Fanless Design
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
