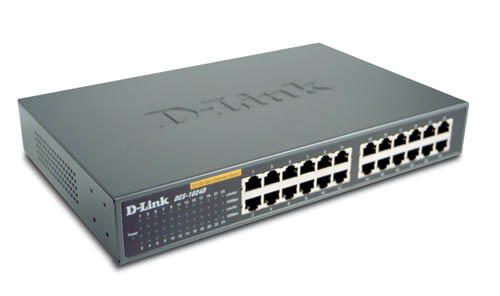

D-Link Switch 24xF+ENet NWay Unmanaged Fast Ethernet (10/100)
Product Technical Specification
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.1D,IEEE 802.3,IEEE 802.3U,IEEE 802.3x |
| Full duplex | Yes |
| Data transmission | |
| Supported data transfer rates | 100 Mbps |
| MAC address table | 8000 |
| Protocols | |
| Switching protocols | Ethernet |
| Data link protocols | Ethernet, Fast Ethernet |
| Design | |
| Rack mounting | Yes |
| LED indicators | power |
| Technical details | |
| Shipping (inner) case height | 311 |
| Shipping (inner) case width | 392 |
| Shipping (inner) case length | 420 |
| Shipping (inner) case net weight | 9500 |
| Products per shipping (inner) case | 5 |
| Pallet gross weight (air) | 265880 |
| Master (outer) cases per pallet (air) | 24 |
| Products per pallet (air) | 120 |
| Pallet gross length | 1200 |
| Pallet gross width | 1100 |
| Pallet height (air) | 1379 |
| Pallet gross weight (sea) | 390320 |
| Master (outer) cases per pallet (sea) | 36 |
| Products per pallet (sea) | 180 |
| Pallet height (sea) | 2001 |
| Shipping (inner) case gross weight | 10370 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Weight | 1900 |
| Packaging data | |
| Package width | 282 |
| Package depth | 376 |
| Package height | 78 |
| Package weight | 1900 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Dimensions (WxDxH) | 280 x 180 x 44 |
| Connectivity technology | Wired |
| I/O ports | 24-10/100Mbps RJ-45 Auto-sensing ports |
| Networking features | 10/100Base – EIA/TIA Categories 3 or 5 cable |
Delivery Options
Economy Delivery (UK)
Business Express
The DES-1024D is truly Plug-&-Play with features like: Auto Speed Sensing — allowing it to automatically sense whether a network device is running at 10Mbps or 100Mbps then automatically adjusting itself for optimal performance; Auto-Negotiation (Full or Half Duplex) — negotiating and running the highest supported transmission rate whether at Half- or Full-Duplex; and Auto MDI/MDIX Crossover—offering auto-negotiating MDI/MDIX detection on every port to eliminate the need for crossover cables or uplink ports.
The DES-1024D features a non-blocking wire-speed architecture with a 4.8Gbps switching capacity, for maximum data throughput. It also features an integrated universal power supply, and per port diagnostics LEDs that make it easy to “spot check” for problems. With wire-speed filtering and Store-and-Forward switching, the DES-1024D also maximizes network performance while minimizing the propagation of bad network packets.
Each DES-1024D includes free technical support and is backed by a limited 5-year warranty. Support materials include documentation in Acrobat pdf, FAQs, an installation guide, and a product manual.
This intelligent, easy-to-use 10/100BASE-T swich will enhance and compliment any existing network infrastructure and deliver the performance that IT managers and other SMB network administrators demand.
| Management features | |
| Switch type | Unmanaged |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.1D,IEEE 802.3,IEEE 802.3U,IEEE 802.3x |
| Full duplex | Yes |
| Data transmission | |
| Supported data transfer rates | 100 Mbps |
| MAC address table | 8000 |
| Protocols | |
| Switching protocols | Ethernet |
| Data link protocols | Ethernet, Fast Ethernet |
| Design | |
| Rack mounting | Yes |
| LED indicators | power |
| Technical details | |
| Shipping (inner) case height | 311 |
| Shipping (inner) case width | 392 |
| Shipping (inner) case length | 420 |
| Shipping (inner) case net weight | 9500 |
| Products per shipping (inner) case | 5 |
| Pallet gross weight (air) | 265880 |
| Master (outer) cases per pallet (air) | 24 |
| Products per pallet (air) | 120 |
| Pallet gross length | 1200 |
| Pallet gross width | 1100 |
| Pallet height (air) | 1379 |
| Pallet gross weight (sea) | 390320 |
| Master (outer) cases per pallet (sea) | 36 |
| Products per pallet (sea) | 180 |
| Pallet height (sea) | 2001 |
| Shipping (inner) case gross weight | 10370 |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 |
| Operating relative humidity (H-H) | 5 - 90 |
| Weight & dimensions | |
| Weight | 1900 |
| Packaging data | |
| Package width | 282 |
| Package depth | 376 |
| Package height | 78 |
| Package weight | 1900 |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Dimensions (WxDxH) | 280 x 180 x 44 |
| Connectivity technology | Wired |
| I/O ports | 24-10/100Mbps RJ-45 Auto-sensing ports |
| Networking features | 10/100Base – EIA/TIA Categories 3 or 5 cable |
