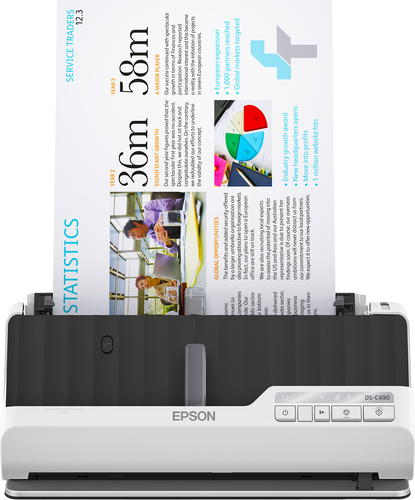

Epson DS-C490 Sheet-fed scanner 600 x 600 DPI A4 Black, Grey
Product Technical Specification
| Scanning | |
| Maximum scan size | 215.9 x 5588 |
| Optical scanning resolution | 600 x 600 |
| Duplex scanning | Yes |
| Input colour depth | 30 |
| Output colour depth | 24 |
| Input greyscale depth | 10 |
| Output greyscale depth | 8 |
| ADF scan speed (b/w, A4) | 40 |
| ADF scan speed (colour, A4) | 40 |
| Duplex ADF scan speed (b/w, A4) | 80 |
| Duplex ADF scan speed (colour, A4) | 80 |
| Roller lifetime | 50000 |
| Design | |
| Scanner type | Sheet-fed scanner |
| Product colour | Black,Grey |
| Control type | Buttons |
| Built-in display | No |
| Performance | |
| Light source | ReadyScan LED |
| Scan file formats | BMP,JPEG,PDF,PNG,TIFF |
| Daily duty cycle (max) | 6500 |
| Scan drivers | ICA,ISIS,SANE,TWAIN,WIA |
| Input capacity | |
| Auto document feeder (ADF) input capacity | 20 |
| Paper handling | |
| Maximum ISO A-series paper size | A4 |
| ISO A-series sizes (A0...A9) | A4,A5,A6 |
| ISO B-series sizes (B0...B9) | B5,B6 |
| Paper tray media weight | 40 - 413 |
| Ports & interfaces | |
| USB port | Yes |
| USB version | 2.0 |
| Power | |
| Power supply type | AC |
| Power consumption (typical) | 10 |
| Power consumption (standby) | 1 |
| Input voltage | 100 - 240 |
| Packaging data | |
| Quantity per pack | 1 |
| System requirements | |
| Windows operating systems supported | Windows 10,Windows 10 x64,Windows 11,Windows 7,Windows 7 x64,Windows 8,Windows 8 x64,Y |
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.9 Mavericks,Y |
| Server operating systems supported | Windows Server 2003,Windows Server 2003 x64,Windows Server 2008,Windows Server 2008 R2,Windows Server 2008 x64,Windows Server 2012 R2,Windows Server 2012 x64,Windows Server 2016 |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 35 |
| Storage temperature (T-T) | -25 - 60 |
| Operating relative humidity (H-H) | 15 - 80 |
| Storage relative humidity (H-H) | 15 - 85 |
| Weight & dimensions | |
| Width | 296 |
| Depth | 104 |
| Height | 125 |
| Weight | 1900 |
| Technical details | |
| Sustainability certificates | ENERGY STAR |
| Compliance certificates | RoHS |
Delivery Options
Economy Delivery (UK)
Business Express
When the scanner is in U-turn path position, paper can be scanned without adding to the device's footprint, making it the perfect choice when space is at a premium.
Versatile
The DS-C490 is extremely versatile, handling from envelopes and PL cards to long paper and A3 (stitched). It can even scan passports and booklets up to 5mm thick, capturing the MRZ zone of the passport and saving in Excel compatible formats. The DS-C490 also comes with a host of enhancement features, enabling you to improve text sharpness, as well as correcting edge folds, tears, border shadows and punch hole removal. The inbuilt Ultra-sonic sensor eliminates double feeding ensuring peace of mind that all pages are captured. Plus scan to Microsoft applications Word, Excel, PowerPoint. Compatible with Windows, Mac, and Chromebook.
Two-in-one
The selector allows you to easily switch between straight path mode and U-turn mode, even while in operation, enabling you to create a single PDF. When the scanner is in U-turn mode, paper can be scanned without adding to the device's footprint, making it the perfect choice when space is at a premium.
Lower environmental impact
With a power consumption of only 3.3W in ready mode and 1.0W in sleep mode, it will also save you energy.
