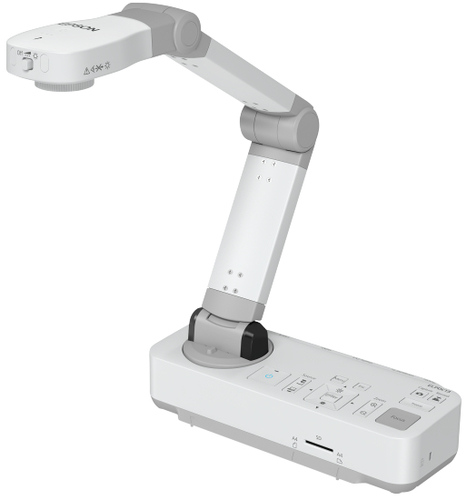

Epson ELPDC13 document camera White 25.4 / 2.7 mm (1 / 2.7") CMOS
Product Technical Specification
| Camera | |
| Optical sensor size | 1/2.7 |
| Sensor type | CMOS |
| Supported graphics resolutions | 1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 800 (WXGA),1360 x 768 (WXGA),1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 |
| Image freeze | Yes |
| Light source | LED |
| Lens system | |
| Auto focus | Yes |
| Digital zoom | 16 |
| Shooting area (WxD) | 297 x 420 |
| Ports & interfaces | |
| USB connector type | USB Type-B |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| Technical details | |
| Document size (max) | A3 |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in microphone | Yes |
| Illumination | Yes |
| Country of origin | Philippines |
| Power | |
| Power consumption (typical) | 13 |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Width | 270 |
| Depth | 317 |
| Height | 447 |
| Weight | 2500 |
| Dimensions folded (WxDxH) | 367 x 122 x 120 |
| Packaging data | |
| Quantity per pack | 1 |
| Package width | 235 |
| Package depth | 445 |
| Package height | 180 |
| Package weight | 4580 |
| Logistics data | |
| Products per pallet | 66 |
| Pallet gross length | 1200 |
| Pallet gross width | 800 |
| Pallet gross height | 5045 |
| Products per pallet layer | 6 |
| Products per pallet layer (UK) | 10 |
| Products per pallet (UK) | 110 |
| Pallet length (UK) | 1200 |
| Pallet width (UK) | 1000 |
| Pallet height (UK) | 5045 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
This user-friendly document camera contains a range of features for the classroom, making it the ideal partner for Epson education projectors
ELPDC13
Bring lessons to life with this user-friendly document camera and share pictures and objects in Full HD on a large screen for the benefit of the whole class. Bursting with a range of clever features and functionality, teachers can create a dynamic environment to enhance student learning. Benefitting from a lightweight and portable design, it is easy to transport between classrooms.
Display in Full HD
Display images and 3D objects in Full HD with incredible detail for the whole class to see. Thanks to a large A3 shooting area, two full pages from a textbook can be displayed. Smooth video streaming is achieved with impressive clarity and without motion blur at 30 frames per second. Thanks to a 16 x digital zoom and built-in LED light, even intricate detail can be seen. Ideal for science lessons, minute objects can be displayed on a large screen thanks to a microscope attachment.
Added flexibility
Live images and video content, including that stored on a SD card, can be output to multiple displays thanks to parallel video output. Thanks to split-screen functionality, teachers can present two pieces of content side-by-side to help highlight teaching points, such as plant and animal growth. Teachers can maintain student engagement by operating the document camera directly from the projected image at the front of the classroom, including starting and stopping video recordings.
Portable and lightweight
A lightweight and portable design and included soft carry case makes it easy to move between classrooms. With a Kensington lock and security bar, schools and education establishments can have added peace of mind when the camera is unattended or not in use.
Key Features
- Clear, smooth images: Full HD 1080p camera and 30-frames-per-second screen refresh rate
- Capture every detail: 16 x digital zoom; one-touch auto focus and freeze function
- Large A3 capture area: Ideal for projecting maps, detailed diagrams and 3D objects
- Illuminate hard-to-see objects: Built-in LED light
- Added peace of mind: Kensington lock and security bar for theft protection
| Camera | |
| Optical sensor size | 1/2.7 |
| Sensor type | CMOS |
| Supported graphics resolutions | 1024 x 768 (XGA),1280 x 1024 (SXGA),1280 x 800 (WXGA),1360 x 768 (WXGA),1920 x 1080 (HD 1080) |
| Maximum frame rate | 30 |
| Image freeze | Yes |
| Light source | LED |
| Lens system | |
| Auto focus | Yes |
| Digital zoom | 16 |
| Shooting area (WxD) | 297 x 420 |
| Ports & interfaces | |
| USB connector type | USB Type-B |
| VGA (D-Sub) input ports | 1 |
| VGA (D-Sub) output ports | 1 |
| Technical details | |
| Document size (max) | A3 |
| Product colour | White |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Built-in microphone | Yes |
| Illumination | Yes |
| Country of origin | Philippines |
| Power | |
| Power consumption (typical) | 13 |
| System requirements | |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Weight & dimensions | |
| Width | 270 |
| Depth | 317 |
| Height | 447 |
| Weight | 2500 |
| Dimensions folded (WxDxH) | 367 x 122 x 120 |
| Packaging data | |
| Quantity per pack | 1 |
| Package width | 235 |
| Package depth | 445 |
| Package height | 180 |
| Package weight | 4580 |
| Logistics data | |
| Products per pallet | 66 |
| Pallet gross length | 1200 |
| Pallet gross width | 800 |
| Pallet gross height | 5045 |
| Products per pallet layer | 6 |
| Products per pallet layer (UK) | 10 |
| Products per pallet (UK) | 110 |
| Pallet length (UK) | 1200 |
| Pallet width (UK) | 1000 |
| Pallet height (UK) | 5045 |
