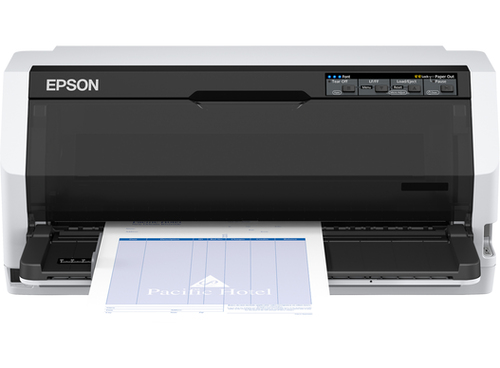

Epson LQ-690IIN dot matrix printer 360 x 180 DPI 487 cps

Manufacturer: Epson | Model: C11CJ82403A0 | Product ID: 3418
£699.75 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Printing
Maximum resolution360 x 180
Maximum printing width (columns)106
ColourNo
Maximum print speed487
Maximum print speed (draft)366
Maximum print speed (LQ)121
Maximum number of copies7
Built-in barcodesCODABAR (NW-7),Code 39,Code-128 Codabar Library,EAN128,EAN13,Industrial 2/5,Interleaved 2/5,Matrix 2/5,POSTNET,UPC-A,UPC-E
Character setsISO 8859-15,Italic,PC437,PC708,PC720,PC850,PC858,PC864,PCAR864,Roman 8
Paper handling
Paper feedManual,Pull tractor
Paper tray media typesEnvelopes,Labels,Plain paper,Roll
Continuous paper thickness range0.065 - 0.49
Label thickness range0.16 - 0.19
Multi-part paper thickness range0.12 - 0.49
Single sheet thickness range0.065 - 0.15
Features
Product colourBlack,White
Buffer size128
Sound pressure level (printing)59
Country of originIndonesia
Ports & interfaces
Standard interfacesEthernet,Parallel,USB 2.0
Cabling technology10/100Base-T(X)
Endurance
Print head24-pin
Print head life400
Ribbon life10
Mean time between failures (MTBF)20000
Power
Power consumption (typical)38
Power consumption (standby)3
Operational conditions
Operating temperature (T-T)5 - 35
System requirements
Windows operating systems supportedYes
Bundled softwareEpson Status Monitor
Weight & dimensions
Width480
Depth301
Height211
Weight6800

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Sun 07th Dec 2025 to Wed 10th Dec 2025
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Sat 06th Dec 2025 to Mon 08th Dec 2025
View all Delivery Options & International Rates
Designed with productivity in mind, the LQ-690IIN is an ultra-reliable dot matrix printer that offers an impressive ribbon yield. It is fast and compact with a robust build. Its modern design allows effortless integration into any work environment, be it an office or a warehouse.

Fast printing:
Print faster and more productively. The LQ-690IIN prints the original + six copies, and is capable of printing an impressive 487 cps (10 cpi) when using printer resident fonts.

High ribbon yield:
In a demanding and fast-moving work environment a high ribbon yield is essential, and with 10 million characters per ribbon, this marks the LQ-690IIN as a leading force in the flatbed market. It is also cost-effective, with long ribbon replacement cycles, low running costs and total cost of ownership. In addition, the ribbon is transferrable, which means that you can use ribbons from your current printer in the new printer, resulting in less cost and waste.

Dependable:
Durable and built to last, users will be assured by the MTBF (mean time between failures) of 20,000 power on hours. The robust casing can stand up to high humid and heat conditions, and with its network capabilities, the LQ-690IIN is perfect for all your work requirements. This results in greater productivity and less maintenance from down time - essential when producing large amounts of documents and data.

Smart design:
This compact hard-working printer is designed to fit on your desk. With its modern, black and white casing, it blends in seamlessly in both office and warehouse environments.




Printing
Maximum resolution360 x 180
Maximum printing width (columns)106
ColourNo
Maximum print speed487
Maximum print speed (draft)366
Maximum print speed (LQ)121
Maximum number of copies7
Built-in barcodesCODABAR (NW-7),Code 39,Code-128 Codabar Library,EAN128,EAN13,Industrial 2/5,Interleaved 2/5,Matrix 2/5,POSTNET,UPC-A,UPC-E
Character setsISO 8859-15,Italic,PC437,PC708,PC720,PC850,PC858,PC864,PCAR864,Roman 8
Paper handling
Paper feedManual,Pull tractor
Paper tray media typesEnvelopes,Labels,Plain paper,Roll
Continuous paper thickness range0.065 - 0.49
Label thickness range0.16 - 0.19
Multi-part paper thickness range0.12 - 0.49
Single sheet thickness range0.065 - 0.15
Features
Product colourBlack,White
Buffer size128
Sound pressure level (printing)59
Country of originIndonesia
Ports & interfaces
Standard interfacesEthernet,Parallel,USB 2.0
Cabling technology10/100Base-T(X)
Endurance
Print head24-pin
Print head life400
Ribbon life10
Mean time between failures (MTBF)20000
Power
Power consumption (typical)38
Power consumption (standby)3
Operational conditions
Operating temperature (T-T)5 - 35
System requirements
Windows operating systems supportedYes
Bundled softwareEpson Status Monitor
Weight & dimensions
Width480
Depth301
Height211
Weight6800
