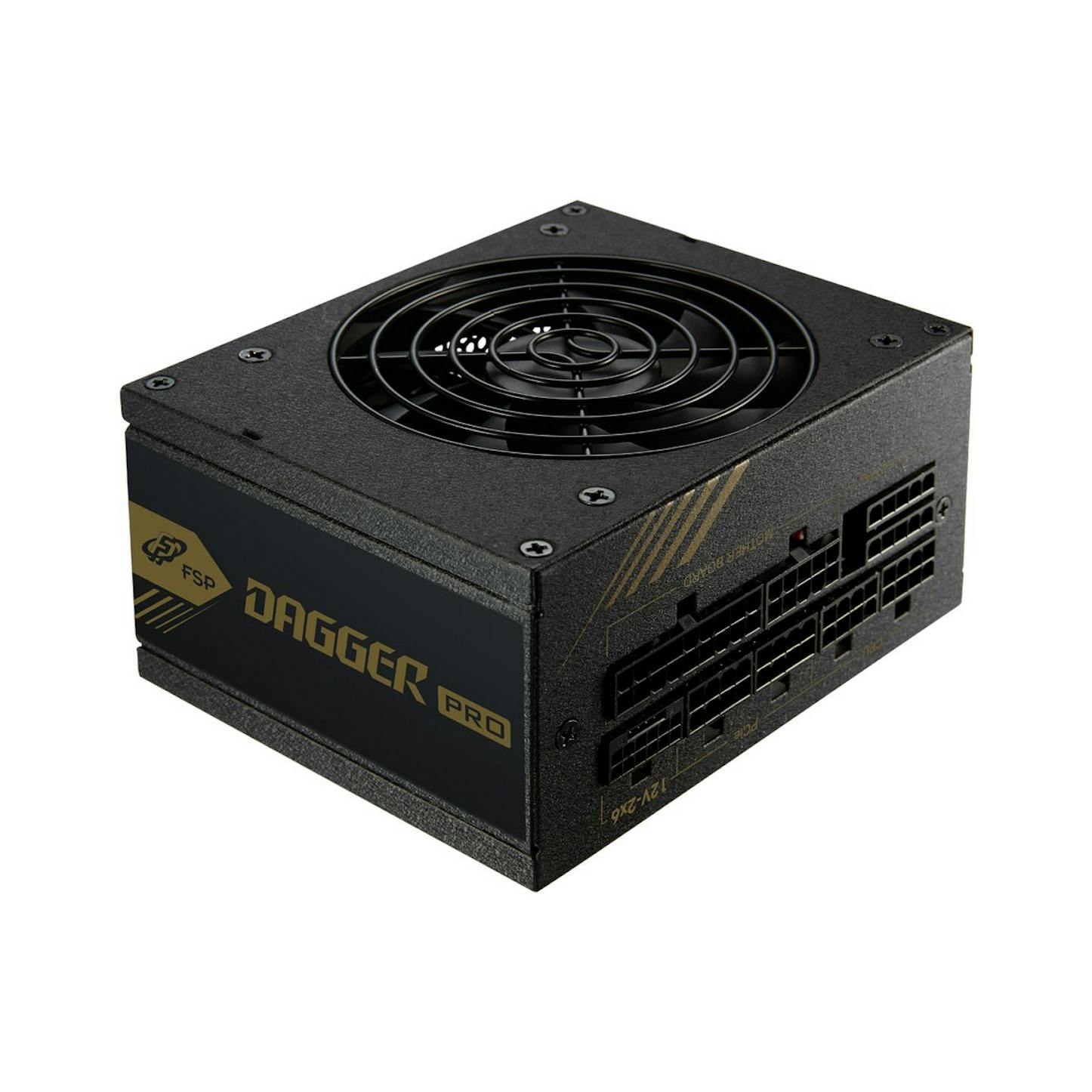

FSP Dagger PRO 850W SFX 80+ Gold ATX 3.1 PCIe 5.1 Modular Power Supply
Product Technical Specification
| Power Specifications | |
| Total Power Output | 850 W |
| Power Output +12V rails | 850 W |
| Lighting | |
| Lighting / RGB | No |
| Efficiency Class | |
| 80PLUS Efficiency | 80 PLUS Gold |
| Dimensions | |
| Length / Depth | 125 mm |
| Width | 100 mm |
| Height | 63.5 mm |
| Colour | |
| Primary Colour | Black |
| Fan Specifications | |
| Fan Size | 92 mm |
| Power Supply | |
| PSU Format | SFX |
| 12V Distribution | single rail |
| Modular Power Supply | Yes |
| Cooling | |
| Semi Passive Power Supply | No |
| Internal Ports | |
| CPU Power Connectors 12V ATX/EPS | 2 |
| 8 Pin PCIe Power Connectors | 0 |
| 6+2 Pin PCIe Power Connectors | 4 |
| SATA Power Connectors | 5 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
- Compliant with SFX12V V3.3
- Efficiency ≧ 90% at typical load
- MIA IC (Multiple Intelligence Ability) chip set inside
- Semi-fanless design for silent operation
- Quiet and long-lasting 92mm ball bearing fan
- All black ribbon cables
- Powerful single +12V rail design
- Japanese electrolytic capacitors
- Full protections OCP, OVP, SCP, OPP, OTP
Tiny but Powerful
The DAGGER PRO series is compatible with most Mini-ITX and Micro ATX small form factor PCs. It is an ideal for home computer rigs but a great alternative for mini-PC enthusiasts.
Advanced Cable Management and Flat Ribbon Cables
Fully-modular design and flat ribbon cables provide easier installation. An ideal solution for applications with space constraints, enhancing overall airflow efficiency and cable management.
92mm Fan Optimized for Low-noise Operation
Dagger PRO is included an advanced semi-fanless design that will spin over 20% loading, make silent and reduce noise under maximum operation.
80 Plus® Gold Certification
Dagger PRO series is a power supply with 80 PLUS® Gold Certification that guarantees to operate at a minimum of 90% efficiency at 50% load of PSU rated power and as a result to reduce lots of electricity cost.
Powerful +12V Single Rail for your VGA
VGA card is a component which needs greedy and stable power supporting most. The compact size DAGGER PRO series comes with a single +12V rail design that offers VGA cards full power individually and to avoid any overloading conditions.
Supports High-end Motherboard
For gaming enthusiast, the DAGGER PRO 850W features dual CPU power connectors to support high-end motherboard and and provide stable power to the CPU for gaming enthusiast.
Japanese electrolytic capacitors
Dagger PRO series uses Japanese electrolytic capacitors to ensure a longer lifetime and protect your PSU from sudden power changes
Supports High-end Motherboard
Adapts to your individual requirements, not only does it fit into cases with the SFX form factor, but can also be installed in a simple steps into normal ATX, Micro-ATX or Mini-ITX cases.
