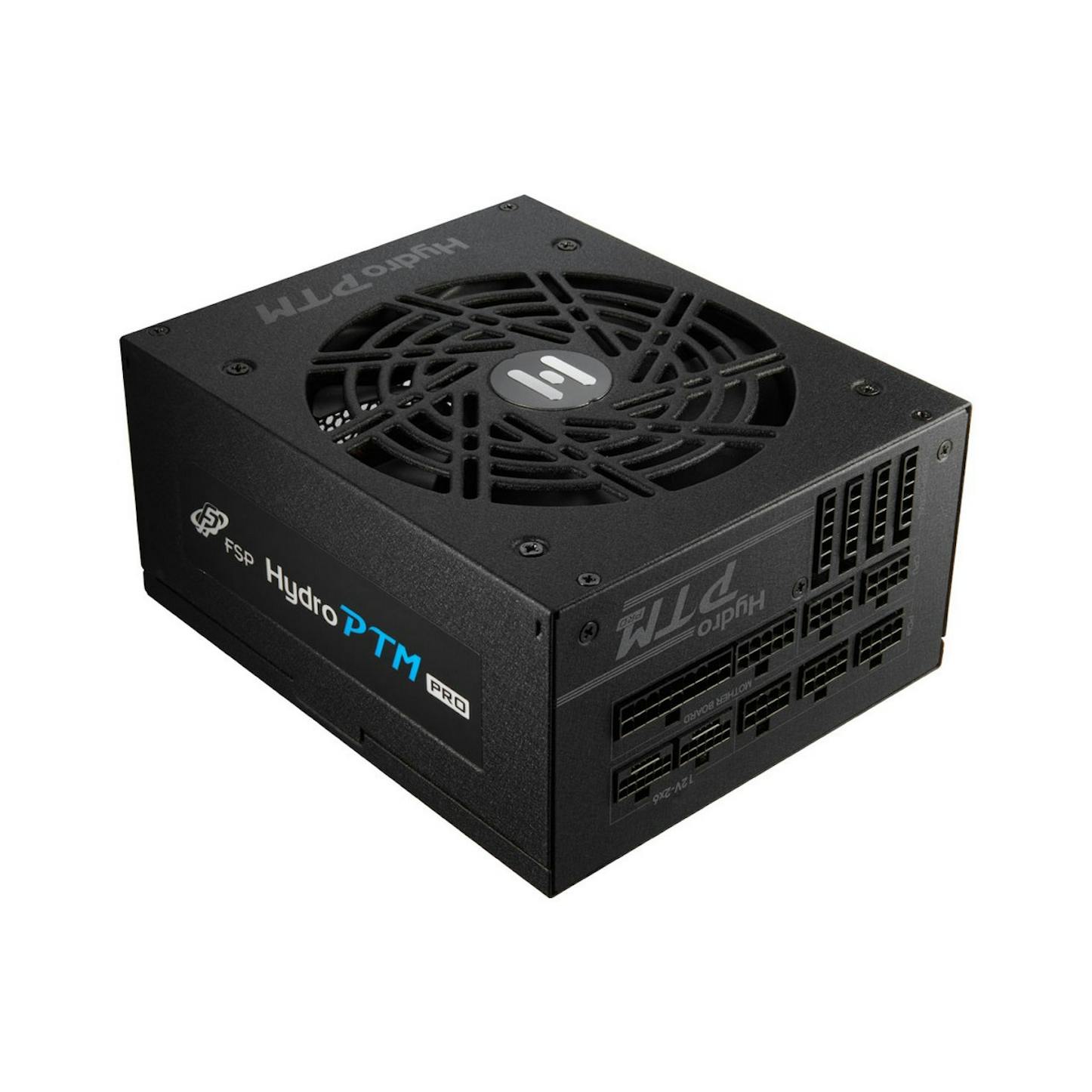

FSP Hydro PTM PRO 1650W 80+ Platinum ATX 3.1 PCIE 5.1 Modular Power Supply

Manufacturer: | Model: PPA16F0100 | Product ID: 4033
£6.00 (inc. VAT)
Availability: 0 in stock

Product Technical Specification

Colour
Primary ColourBlack
Fan Specifications
Fan Size135 mm
Efficiency Class
80PLUS Efficiency80 PLUS Platinum
Lighting
Lighting / RGBNo
Power Specifications
Total Power Output1650 W
Power Output +12V rails1650 W
Dimensions
Length / Depth180 mm
Width150 mm
Height86 mm
Power Supply
PSU FormatATX
12V Distributionsingle rail
Modular Power SupplyYes
Cooling
Semi Passive Power SupplyYes
Internal Ports
CPU Power Connectors 12V ATX/EPS2
8 Pin PCIe Power Connectors0
6+2 Pin PCIe Power Connectors4
SATA Power Connectors12

Delivery Options

Economy Delivery
FREE
Economy Delivery

Economy Delivery (UK)

Estimated delivery date: Tue 25th Aug 2026 to Fri 28th Aug 2026
Fast & Tracked by Courier
£6.95
Fast & Tracked by Courier

Fast & Tracked by Courier (UK)

Estimated delivery date: Mon 24th Aug 2026 to Wed 26th Aug 2026
View all Delivery Options & International Rates
  • Complies with ATX12V V3.1 & EPS12V V2.92
  • Efficiency ≧92% at typical load
  • Eco semi-fanless fan control switch
  • Quiet and long-lasting 135mm FDB fan
  • Ribbon cable design for enthusiasts
  • +5V & 3.3V DC to DC module design
  • +12V single-rail design
  • Japanese electrolytic capacitors
  • Changeable side stickers for DIY enthusiasts and gamers
  • Complete protection: OCP/OVP/OPP/SCP/OTP/UVP

New ATX PSU Specifications
Updated ATX 3.1 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.

High Compatibility for High Power
The series comes with native PCIe Gen 5 connector and also supports 3 slots of PCIe 6+2Pin for graphic card, besides, 2 slots of CPU connector for higher performance.

Conformal Coating Application
The conformal coating which protects the power supply and its internal components from dust, humidity, stains. The Hydro PTM PRO series are covered with conformal coating to guarantee reliable performance in a harsh environment and tested to work perfectly even in 95% relative humidity.

LLC Full-Bridge Topology with DC-DC Module Design
Hydro PTM PRO series features extremely tight voltage regulation to make the output voltage regulation under +/- 1% above 10% load change and offer you supreme efficiency and voltage stability.

Fully Modular Design for Quick and Easy Installation
Fully modular design simplifies installation and allows you to use only the cables you need, for a neater, cleaner build.

ECO Switch, Quieter and Longer Lasting Fan
When Eco Button is switched on, the PSU runs with lower power consumption and is whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.

Hydro PTM PRO series comes with FDB fan and intelligent 0dBA function to reduce noise, and features a longer-lasting life.

80 Plus® Platinum Certification
Hydro PTM PRO series come with 80 Plus Platinum Certification which means your power supplies consume less heat and have a lower operating cost. The power supplies are guaranteed to operate at a minimum of 92% efficiency at 50% load of PSU rated power.

10-Year Warranty
FSP is committed to manufacturing high-quality and reliable power supplies. The Hydro PTM PRO series are backed by our 10-year warranty.

Supports Latest CPU Systems
Hydro PTM PRO fully supports high performance systems, complies with the most recent Intel, ATX12V V3.1 & EPS12V V2.92 standards.

Safety Protection
OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection), a full guardian circuit protections to keep your hardware safe.

Colour
Primary ColourBlack
Fan Specifications
Fan Size135 mm
Efficiency Class
80PLUS Efficiency80 PLUS Platinum
Lighting
Lighting / RGBNo
Power Specifications
Total Power Output1650 W
Power Output +12V rails1650 W
Dimensions
Length / Depth180 mm
Width150 mm
Height86 mm
Power Supply
PSU FormatATX
12V Distributionsingle rail
Modular Power SupplyYes
Cooling
Semi Passive Power SupplyYes
Internal Ports
CPU Power Connectors 12V ATX/EPS2
8 Pin PCIe Power Connectors0
6+2 Pin PCIe Power Connectors4
SATA Power Connectors12
