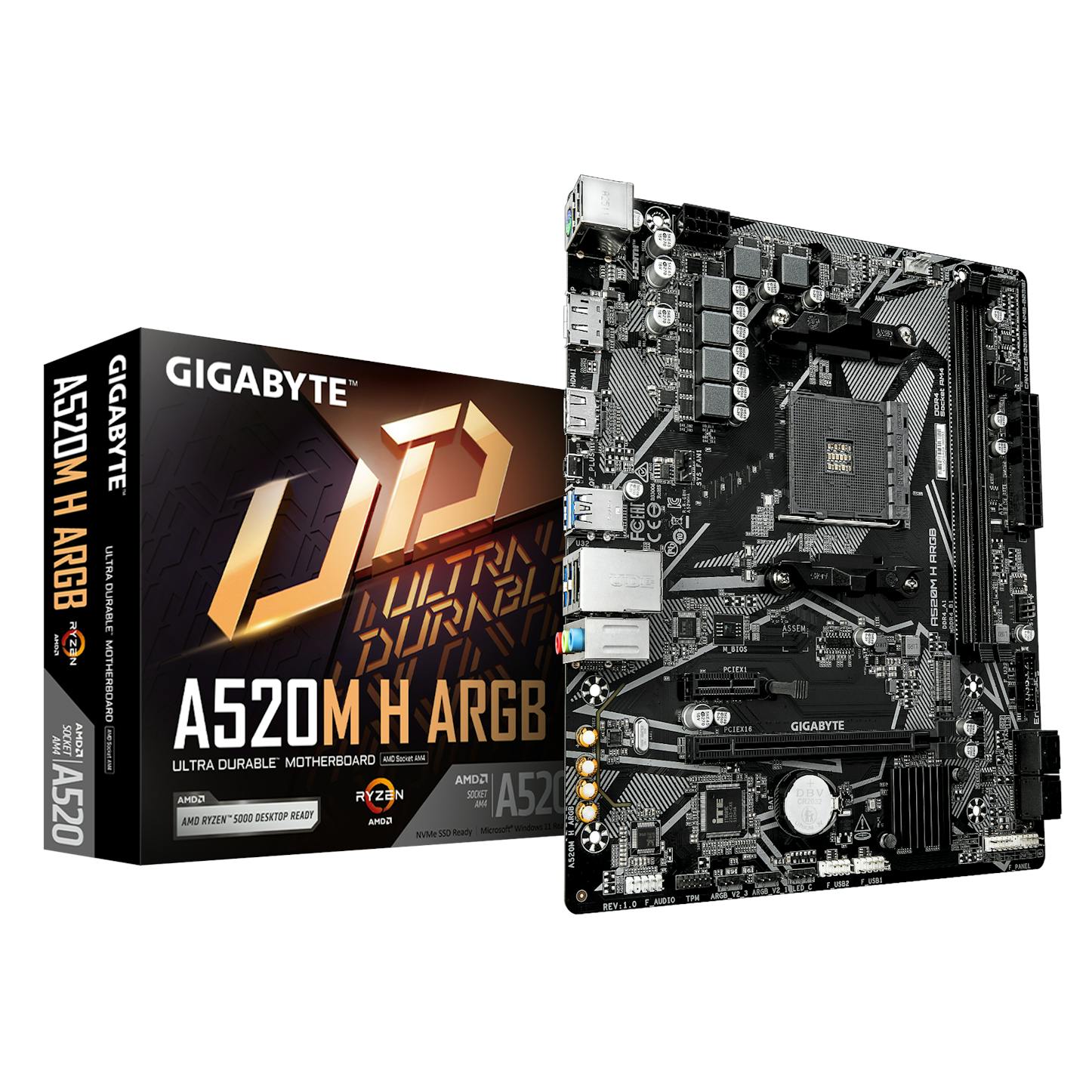

Gigabyte A520M H ARGB (Socket AM4) DDR4 ATX Motherboard
Product Technical Specification
| Form Factor | |
| Motherboard formfactor | Micro-ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 1 Gbit/s |
| Wi-Fi / Bluetooth | No |
| Colour | |
| Primary Colour | Grey |
| Lighting | |
| Lighting / RGB | Yes |
| Motherboard | |
| Motherboard Chipset | AMD A520 |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM4 |
| Fan Header | |
| 4 Pin Fan Connectors | 3 |
| Memory | |
| Max. Memory | 64 GB |
| Memory Type | DDR4 |
| Memory Form Factor | DIMM |
| Memory slots | 2x |
| Internal Ports | |
| CPU Power Supply | 1x 8-Pin |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
| Category | Details |
|---|---|
| CPU |
AMD Socket AM4 Supports AMD Ryzen™ 5000 G-Series / 5000 Series AMD Ryzen™ 4000 G-Series AMD Ryzen™ 3000 G-Series / 3000 Series (Refer to GIGABYTE CPU Support List) |
| Chipset | AMD A520 |
| Memory |
2 × DDR4 DIMM slots, up to 64 GB (32 GB per DIMM) Dual-channel architecture DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz ECC (non-ECC mode) & non-ECC unbuffered DIMM support XMP support |
| Onboard Graphics |
Integrated AMD Radeon™ Graphics (CPU dependent) • 1 × DisplayPort (5120×2880 @60Hz, DP 1.4, HDR, HDCP 2.3) • 1 × HDMI (4096×2160 @60Hz, HDMI 2.1, HDR, HDCP 2.3) Maximum shared memory: 16 GB |
| Audio |
Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN (1 Gbps / 100 Mbps / 10 Mbps) |
| Expansion Slots |
CPU: • 1 × PCIe x16 (PCIe 3.0 x16) Chipset: • 1 × PCIe x1 (PCIe 3.0 x1) |
| Storage Interface |
1 × M.2 (CPU, PCIe 3.0 x4/x2 & SATA, type 2280) 4 × SATA 6Gb/s RAID 0/1/10 for NVMe & SATA |
| USB |
CPU (Rear): • 4 × USB 3.2 Gen1 Chipset: • USB 3.2 Gen1 header (2 ports) • USB 2.0 headers (4 ports) Back Panel: • 2 × USB 2.0 |
| Internal I/O Connectors |
24-pin ATX, 8-pin CPU power CPU fan header 2 × system fan headers 3 × ARGB Gen2 headers 1 × RGB header M.2 socket, 4 × SATA Front panel & audio headers USB 3.2 Gen1 header USB 2.0 headers TPM header, Clear CMOS jumper |
| Back Panel Connectors |
2 × USB 2.0 PS/2 keyboard/mouse port DisplayPort* HDMI* Q-Flash Plus button 4 × USB 3.2 Gen1 RJ-45 LAN 3 × audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage & temperature detection Fan speed detection Overheating warning Fan fail warning & fan speed control |
| BIOS |
128 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features |
GIGABYTE Control Center (GCC) Q-Flash & Q-Flash Plus Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) |
| Operating System | Windows 11 / Windows 10 64-bit |
| Form Factor | Micro-ATX, 23.3 cm × 19.8 cm |
| Form Factor | |
| Motherboard formfactor | Micro-ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 1 Gbit/s |
| Wi-Fi / Bluetooth | No |
| Colour | |
| Primary Colour | Grey |
| Lighting | |
| Lighting / RGB | Yes |
| Motherboard | |
| Motherboard Chipset | AMD A520 |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM4 |
| Fan Header | |
| 4 Pin Fan Connectors | 3 |
| Memory | |
| Max. Memory | 64 GB |
| Memory Type | DDR4 |
| Memory Form Factor | DIMM |
| Memory slots | 2x |
| Internal Ports | |
| CPU Power Supply | 1x 8-Pin |
