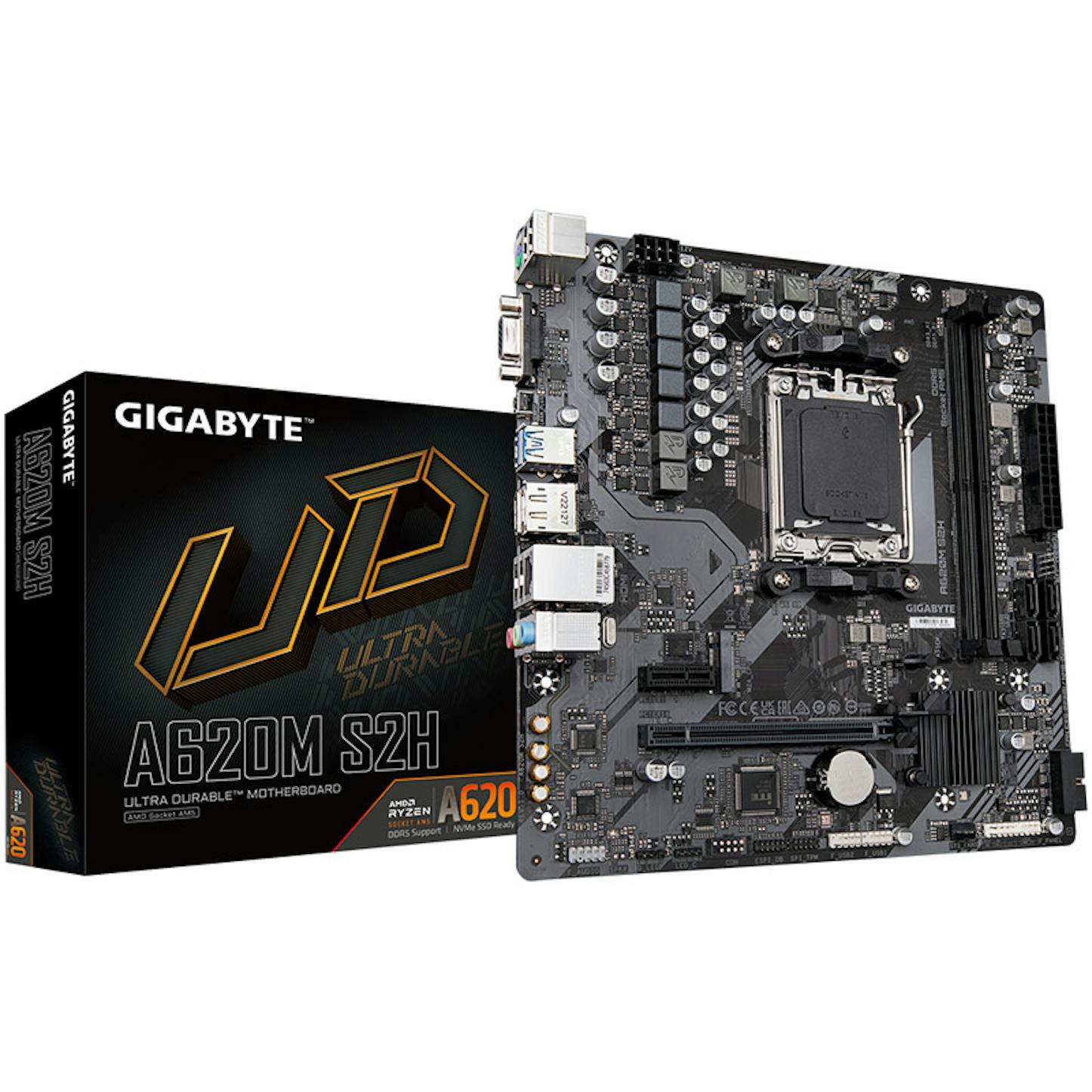

Gigabyte A620M S2H (Socket AM5) DDR5 Micro-ATX Motherboard
Product Technical Specification
| Form Factor | |
| Motherboard formfactor | Micro-ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 1 Gbit/s |
| Wi-Fi / Bluetooth | No |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Motherboard | |
| Motherboard Chipset | AMD A620 |
| Lighting | |
| Lighting / RGB | No |
| Water Cooling | |
| Watercooling | Yes |
| Colour | |
| Primary Colour | Black |
| Secondary Colour | Silver, Grey |
| Fan Header | |
| 4 Pin Fan Connectors | 3 |
| Memory | |
| Max. Memory | 96 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Memory slots | 2x |
| Expansion Slots | |
| PCIe x16 slots (total) | 1 |
| PCIe x1 slots (total) | 1 |
| PCIe 4.0 x16 mechanical slot | 1 |
| PCIe 3.0 x1 mechanical slot | 1 |
| Internal Ports | |
| CPU Power Supply | 1x 8-Pin |
| USB 3.0 (internal) Possible Ports | 2 |
| RGB / LED connectors | 1x RGB (4-Pin 5050 12VGRB), 1x Digital RGB (3-Pin 5VDG) |
| External Ports | |
| USB 3.0 (external) Type A | 2 |
| Display Connectors | VGA (D-Sub) (1x), HDMI (1x), Display Port (1x) |
| Storage Ports | |
| M.2 PCIe 4.0 x4 | 1 |
| SATA 6G (internal) | 4 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
| Category | Details |
|---|---|
| CPU |
AMD Socket AM5 Supports AMD Ryzen™ 7000 / 8000 / 9000 Series Processors (Refer to CPU Support List) |
| Chipset | AMD A620 |
| Memory |
DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s 2 × DDR5 DIMM slots, up to 128 GB (64 GB per DIMM) Dual-channel, non-ECC Un-buffered DIMM (1Rx8 / 2Rx8 / 1Rx16) AMD EXPO™ & XMP support |
| Onboard Graphics |
Integrated Graphics: • 1 × D-Sub (1920×1200 @60Hz) • 1 × DisplayPort (3840×2160 @144Hz, DP 1.4) • 1 × HDMI (4096×2160 @60Hz, HDMI 2.1, HDCP 2.3) Supports up to 3 displays (CPU dependent) |
| Audio |
Realtek® Audio CODEC High Definition Audio, 2/4/5.1/7.1-channel |
| LAN | Realtek® GbE LAN (1 Gbps / 100 Mbps / 10 Mbps) |
| Expansion Slots |
CPU: • 1 × PCIe x16 (PCIe 4.0 x16 / x8 / x4 depending on CPU) Chipset: • 1 × PCIe x1 (PCIe 3.0) |
| Storage Interface |
1 × M.2 (CPU, PCIe 4.0 x4/x2, type 2580) 4 × SATA 6Gb/s RAID 0/1/10 for NVMe & SATA |
| USB |
CPU (Rear): • 2 × USB 3.2 Gen1 • 1 × USB 2.0 Chipset: • 2 × USB 3.2 Gen1 (internal) • 7 × USB 2.0 (3 rear, 4 internal) |
| Internal I/O Connectors |
24-pin ATX, 8-pin CPU power 1 × CPU fan, 2 × system fan headers 1 × Addressable RGB, 1 × RGB header 1 × M.2 socket, 4 × SATA Front panel & audio headers USB 3.2 Gen1 & USB 2.0 headers TPM header, Clear CMOS jumper |
| Back Panel Connectors |
PS/2 keyboard/mouse 4 × USB 2.0 2 × USB 3.2 Gen1 1 × D-Sub, 1 × DisplayPort, 1 × HDMI 1 × RJ-45 LAN Q-Flash Plus button 3 × audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring |
Voltage, temperature, fan speed detection Water cooling flow rate detection Fan fail warning & fan speed control |
| BIOS |
256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0 |
| Unique Features |
GIGABYTE Control Center (GCC) Q-Flash & Q-Flash Plus |
| Bundled Software |
Norton® Internet Security (OEM) LAN bandwidth management software |
| Operating System | Windows 11 / Windows 10 64-bit |
| Form Factor | Micro-ATX, 23.0 cm × 22.5 cm |
| Form Factor | |
| Motherboard formfactor | Micro-ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 1 Gbit/s |
| Wi-Fi / Bluetooth | No |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Motherboard | |
| Motherboard Chipset | AMD A620 |
| Lighting | |
| Lighting / RGB | No |
| Water Cooling | |
| Watercooling | Yes |
| Colour | |
| Primary Colour | Black |
| Secondary Colour | Silver, Grey |
| Fan Header | |
| 4 Pin Fan Connectors | 3 |
| Memory | |
| Max. Memory | 96 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Memory slots | 2x |
| Expansion Slots | |
| PCIe x16 slots (total) | 1 |
| PCIe x1 slots (total) | 1 |
| PCIe 4.0 x16 mechanical slot | 1 |
| PCIe 3.0 x1 mechanical slot | 1 |
| Internal Ports | |
| CPU Power Supply | 1x 8-Pin |
| USB 3.0 (internal) Possible Ports | 2 |
| RGB / LED connectors | 1x RGB (4-Pin 5050 12VGRB), 1x Digital RGB (3-Pin 5VDG) |
| External Ports | |
| USB 3.0 (external) Type A | 2 |
| Display Connectors | VGA (D-Sub) (1x), HDMI (1x), Display Port (1x) |
| Storage Ports | |
| M.2 PCIe 4.0 x4 | 1 |
| SATA 6G (internal) | 4 |
