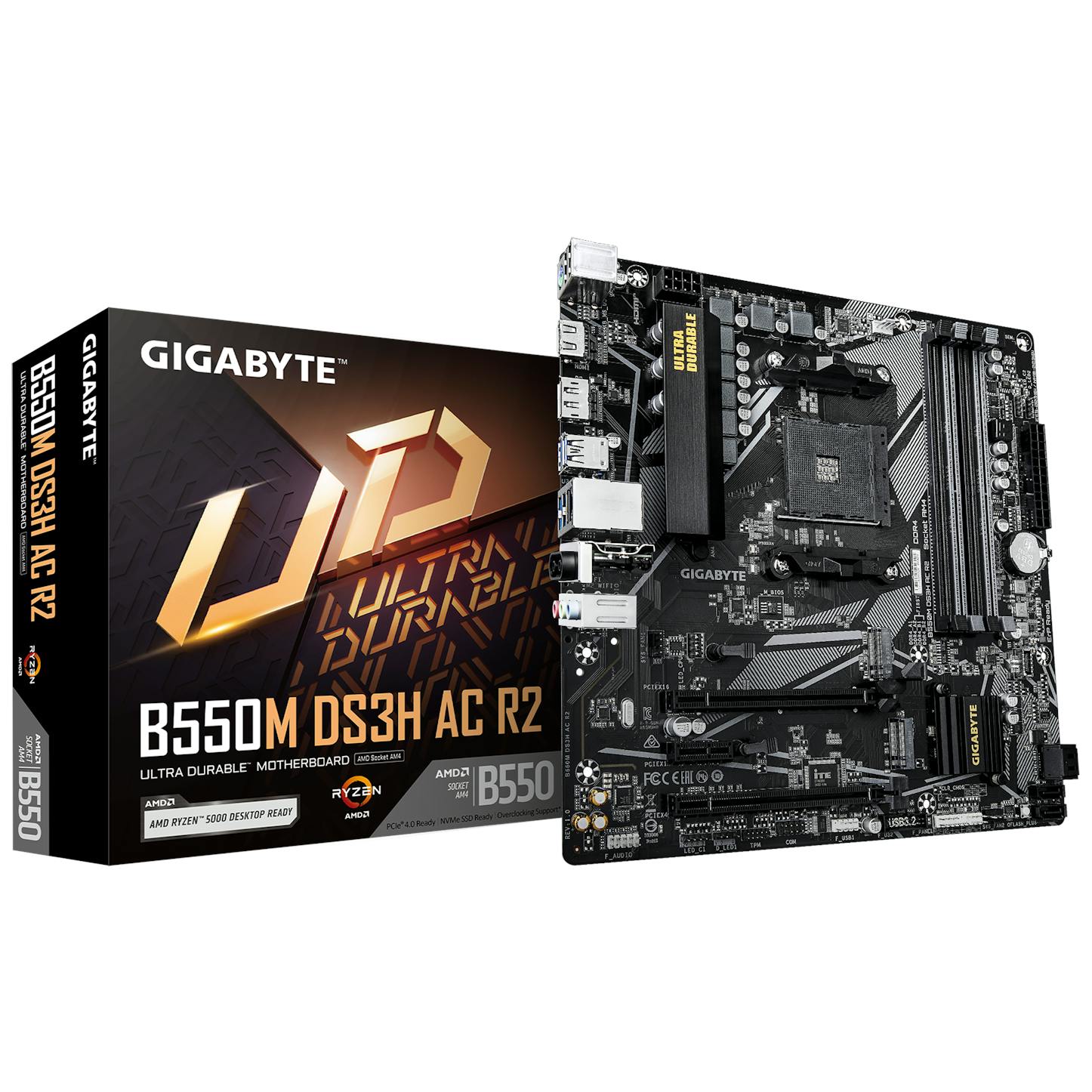

Gigabyte B550M DS3H AC R2 (AMD AM4) B550 Micro-ATX Motherboard
Product Technical Specification
| Form Factor | |
| Motherboard formfactor | Micro-ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 1 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Colour | |
| Primary Colour | Black |
| Lighting | |
| Lighting / RGB | Yes |
| Motherboard | |
| Motherboard Chipset | AMD B550 |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM4 |
| Fan Header | |
| 4 Pin Fan Connectors | 3 |
| Memory | |
| Max. Memory | 128 GB |
| Memory Type | DDR4 |
| Memory Form Factor | DIMM |
| Memory slots | 4x |
| Internal Ports | |
| CPU Power Supply | 1x 8-Pin |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
| Category | Specification |
|---|---|
| CPU | AMD Socket AM4, support for: - AMD Ryzen™ 5000 G-Series Processors - AMD Ryzen™ 5000 Series Processors - AMD Ryzen™ 4000 G-Series Processors - AMD Ryzen™ 3000 G-Series Processors - AMD Ryzen™ 3000 Series Processors |
| Chipset | AMD B550 |
| Memory |
4 x DDR4 DIMM sockets, up to 128 GB DDR4 2133–4733 MHz (O.C.) Dual channel, ECC/Non-ECC Un-buffered DIMM Supports XMP profiles |
| Onboard Graphics |
Integrated AMD Radeon™ Graphics (CPU-dependent) - 1 x DisplayPort (5120x2880@60 Hz) - 1 x HDMI (4096x2160@60 Hz) - Max shared memory: 16 GB |
| Audio |
Realtek® ALC1220 CODEC High Definition Audio, 2/4/5.1/7.1-channel Back panel line out jack supports DSD audio |
| LAN | Realtek® GbE LAN chip (1 Gbps) |
| Wireless Communication |
Realtek® RTL8821CE Wi-Fi 802.11 a/b/g/n/ac (2.4/5GHz) Bluetooth 5.0 |
| Expansion Slots |
- 1 x PCIe x16 (Gen 4 or 3, CPU dependent) - 1 x PCIe x16 (x4) - 1 x PCIe x1 |
| Storage Interface |
- 2 x M.2 connectors (PCIe/SATA, CPU/Chipset dependent) - 4 x SATA 6Gb/s - RAID 0/1/10 support |
| USB |
- Rear: 4 x USB 3.2 Gen 1, 2 x USB 2.0 - Internal: USB Type-C header, 2 x USB 3.2 Gen 1, 2 x USB 2.0 |
| Internal I/O |
- 24-pin + 8-pin power - 2 x M.2 slots - 4 x SATA - Headers: USB, audio, LED strips, TPM, serial - Q-Flash Plus, Clear CMOS |
| Back Panel I/O |
- 2 x USB 2.0 - 4 x USB 3.2 Gen 1 - 1 x HDMI, 1 x DisplayPort - 1 x RJ-45, 3 x audio jacks - 2 x antenna connectors, PS/2 port |
| BIOS |
AMI UEFI BIOS (128 Mbit flash) Q-Flash, Q-Flash Plus |
| Unique Features |
APP Center (EasyTune, RGB Fusion, etc.) Smart Backup, System Info Viewer |
| Operating System | Windows 11/10 64-bit |
| Form Factor | Micro ATX (24.4 cm x 24.4 cm) |
