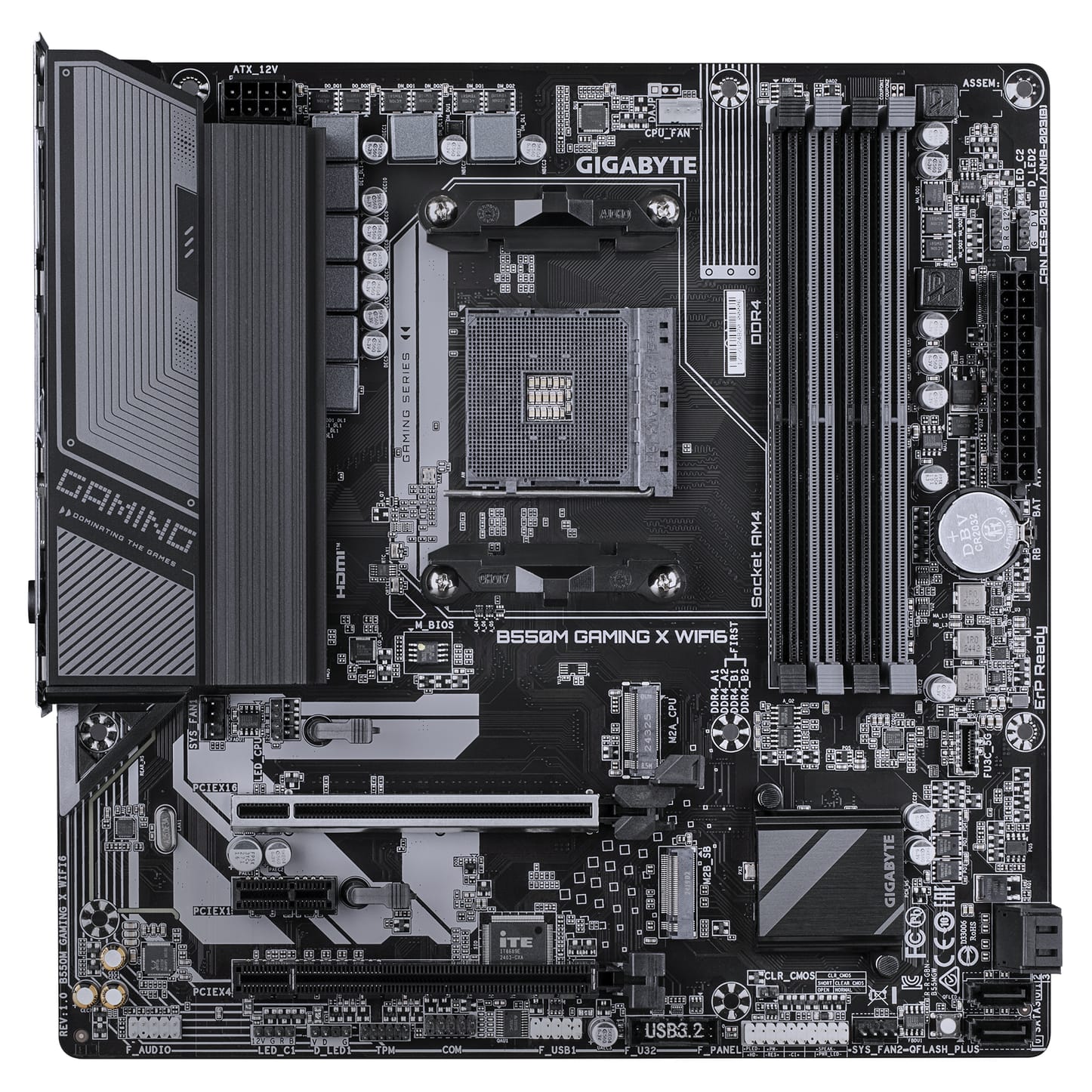

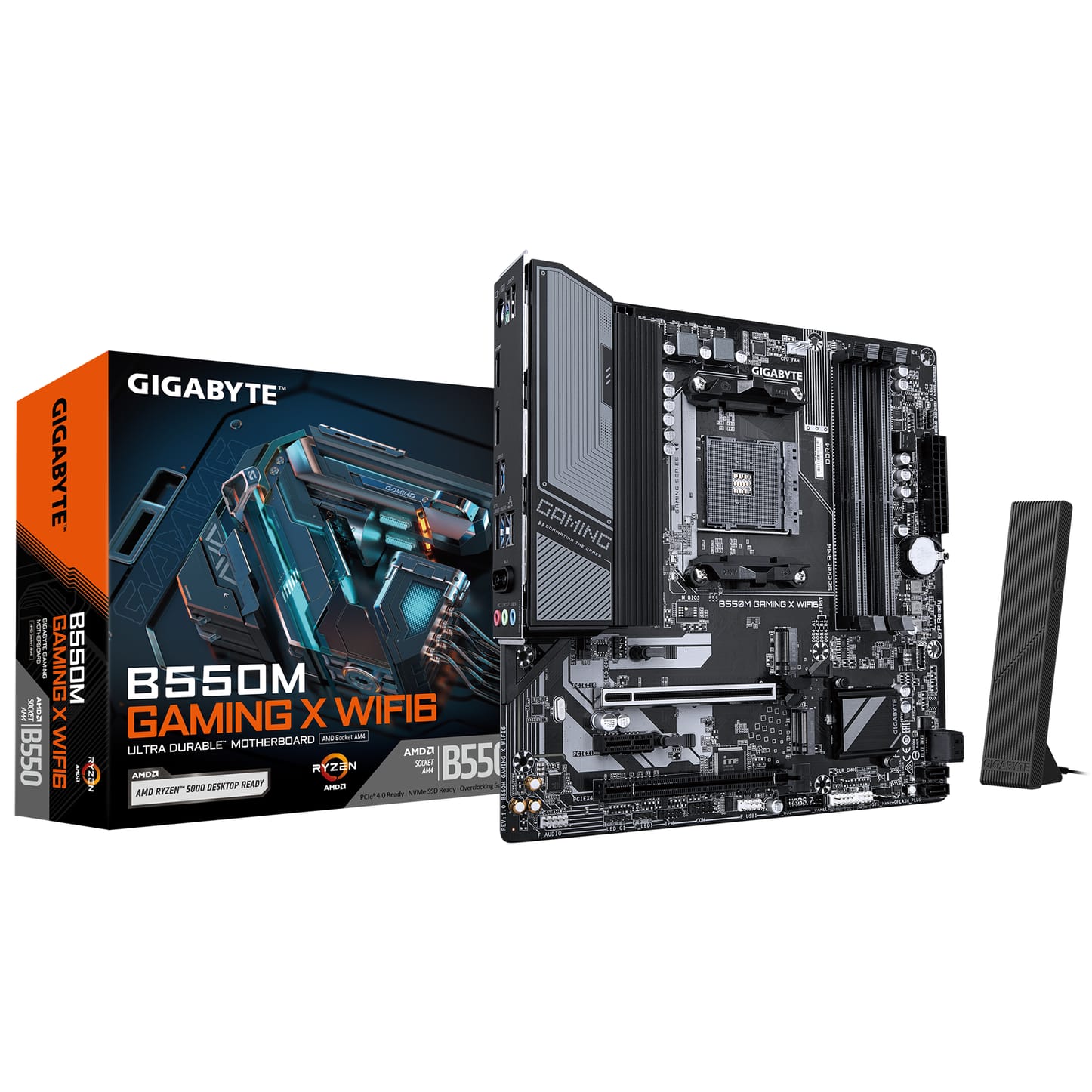

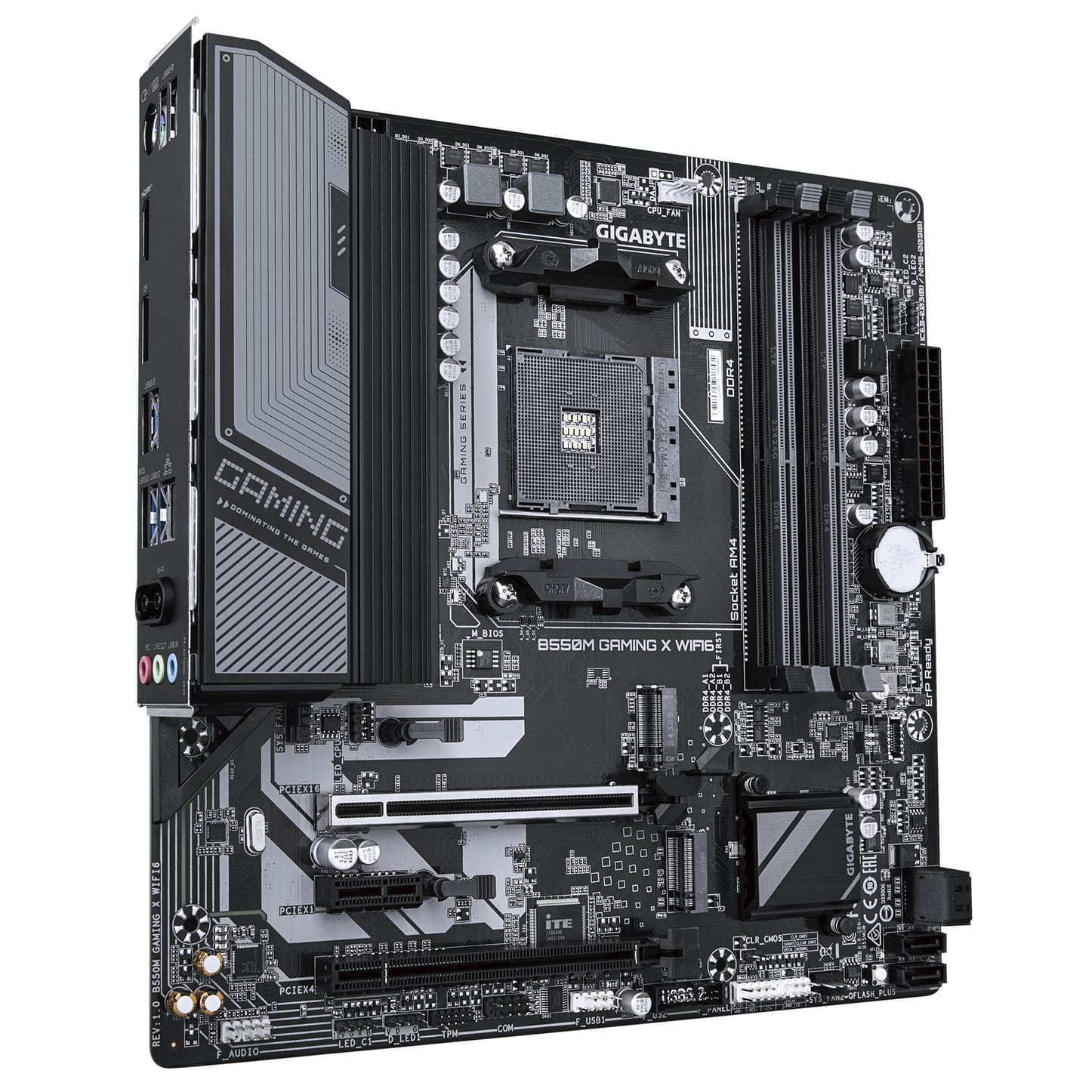

Gigabyte B550M GAMING X WIFI6 (Socket AM4) DDR4 Micro-ATX Motherboard
Product Technical Specification
| Motherboard | |
| BIOS Flashback Button | No |
| Motherboard Chipset | AMD B550 |
| Clear CMOS Button | No |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 1 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Colour | |
| Primary Colour | Black |
| Lighting | |
| Lighting / RGB | Yes |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM4 |
| Form Factor | |
| Motherboard formfactor | Micro-ATX |
| Memory | |
| Max. Memory | 128 GB |
| Memory Type | DDR4 |
| Memory Form Factor | DIMM |
| Memory slots | 4x |
| Fan Header | |
| 4 Pin Fan Connectors | 3 |
| Internal Ports | |
| CPU Power Supply | 1x 8-Pin |
Delivery Options
Economy Delivery (UK)
Economy Delivery (UK)
Business Express
Fast & Tracked by Courier (UK)
| Category | Details |
|---|---|
| CPU Support |
AMD Socket AM4 Ryzen 5000 G-Series / 5000 Series Ryzen 4000 G-Series Ryzen 3000 G-Series / 3000 Series (Refer to GIGABYTE CPU support list for updates) |
| Chipset | AMD B550 |
| Memory |
4 x DDR4 DIMM slots, up to 128GB (32GB per DIMM) DDR4 3200 / 2933 / 2667 / 2400 / 2133 MT/s Dual-channel architecture ECC unbuffered support (1Rx8 / 2Rx8) Non-ECC unbuffered support (1Rx8 / 2Rx8 / 1Rx16) XMP support Memory speed depends on CPU and configuration (see QVL list) |
| Integrated Graphics Outputs |
DisplayPort: up to 5120×2880 @ 60Hz (DP 1.4, HDCP 2.3, HDR) HDMI: up to 4096×2160 @ 60Hz (HDMI 2.1, HDCP 2.3, HDR) Max shared GPU memory: 16GB (iGPU depends on Ryzen APU support) |
| Audio |
Realtek ALC1220 codec 2/4/5.1/7.1-channel audio S/PDIF via back panel line-out (DSD support) Software configurable audio jacks |
| LAN | Realtek Gigabit Ethernet (10/100/1000 Mbps) |
| Wireless |
Realtek Wi-Fi 6 (RTL8851BE) 802.11 a/b/g/n/ac/ax (Wi-Fi 6, 80MHz) Dual-band 2.4GHz / 5GHz Bluetooth 5.3 |
| PCIe Expansion |
CPU slot (PCIEX16): - Ryzen 5000/3000: PCIe 4.0 x16 - Ryzen 5000G/4000G/3000G: PCIe 3.0 x16 Chipset slots: - PCIe x16 (PCIEX4 mode, PCIe 3.0 x4) - PCIe x1 slot (PCIe 3.0 x1) Note: PCIEX16 slot supports GPU or NVMe SSD (single-device use only) |
| Storage |
2 x M.2 slots: - M2A_CPU: PCIe 4.0 x4/x2 or PCIe 3.0 (APU dependent), supports SATA - M2B_SB: PCIe 3.0 x2 + SATA (chipset) 4 x SATA 6Gb/s ports RAID support: - NVMe: RAID 0 / 1 / 10 - SATA: RAID 0 / 1 / 10 |
| USB |
CPU: 4 x USB 3.2 Gen1 (rear) Chipset: - 1 x USB-C (internal header, USB 3.2 Gen1) - 2 x USB 3.2 Gen1 (internal) - 2 x USB 2.0 rear + 2 x internal USB 2.0 |
| Internal I/O |
24-pin ATX power 8-pin CPU power 1 x CPU fan header 2 x system fan headers 2 x ARGB headers 2 x RGB headers 1 x combo LED/RGB header 2 x M.2 slots 4 x SATA ports Front panel + audio headers USB headers (USB 3.2 Gen1, USB 2.0, USB-C) TPM header (GC-TPM2.0_S) Serial port header Clear CMOS jumper Q-Flash Plus button |
| Back Panel |
2 x USB 2.0 4 x USB 3.2 Gen1 1 x PS/2 combo port HDMI + DisplayPort 1 x RJ-45 LAN 2 x Wi-Fi antenna connectors 3 x audio jacks |
| BIOS |
AMI UEFI BIOS (128 Mbit flash) Q-Flash & Q-Flash Plus support Standard ACPI 5.0 / SMBIOS 2.7 |
| Software & Utilities |
GIGABYTE APP Center: @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer LAN bandwidth management software Norton Internet Security (OEM) |
| OS Support | Windows 11 64-bit / Windows 10 64-bit |
| Form Factor | Micro ATX (24.4 cm x 24.4 cm) |
