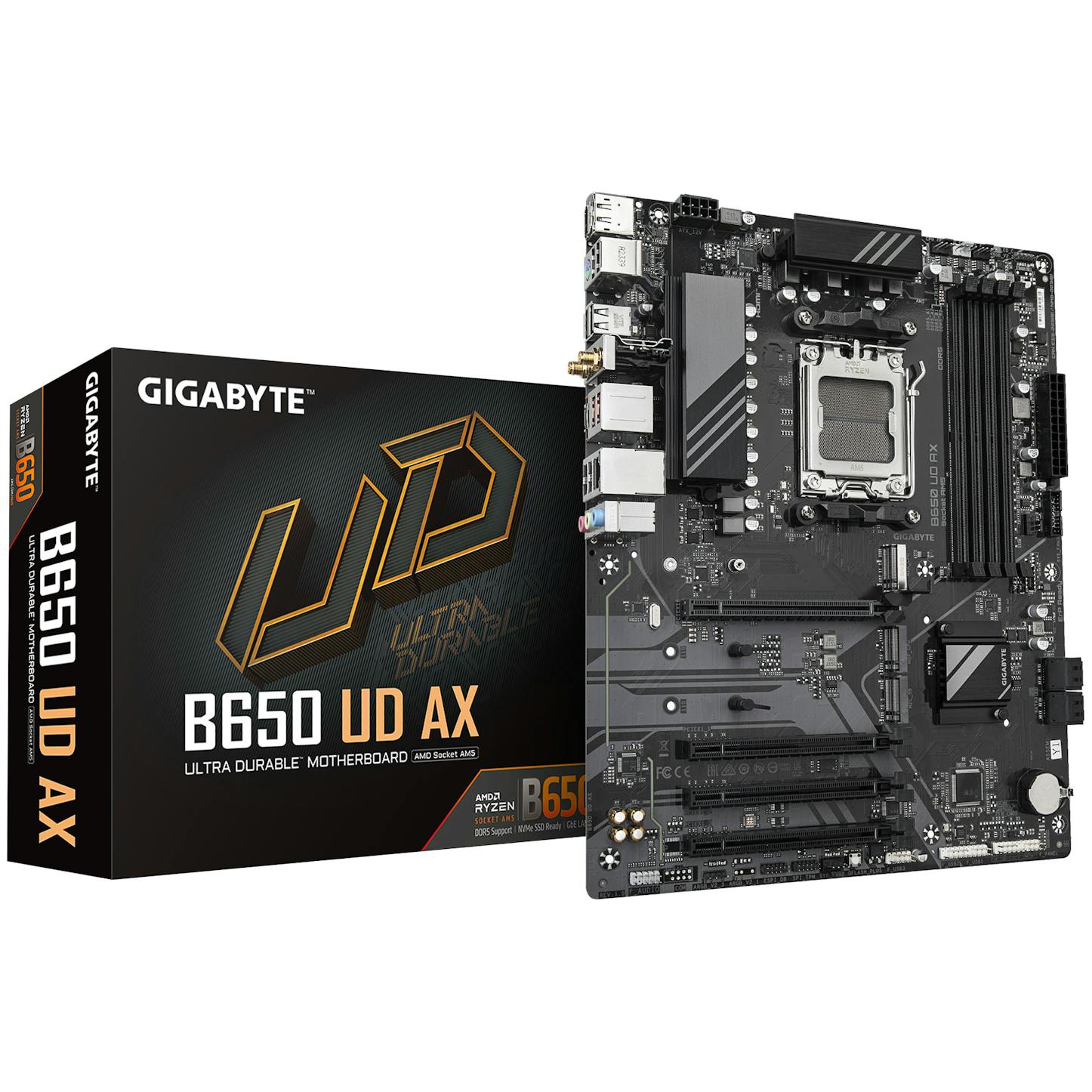

Gigabyte B650 UD AX (Socket AM5) DDR5 ATX Motherboard
Product Technical Specification
| Form Factor | |
| Motherboard formfactor | ATX |
| Wi-Fi & LAN | |
| LAN | Yes |
| LAN Ports | 1x 1 Gbit/s |
| Wi-Fi / Bluetooth | Yes |
| Lighting | |
| Lighting / RGB | No |
| Motherboard | |
| Motherboard Chipset | AMD B650 |
| Colour | |
| Primary Colour | Black |
| CPU | |
| CPU Manufacturer | AMD |
| CPU Socket | AM5 |
| Fan Header | |
| 4 Pin Fan Connectors | 5 |
| Memory | |
| Max. Memory | 256 GB |
| Memory Type | DDR5 |
| Memory Form Factor | DIMM |
| Max. Memory Speed (Standard) | 5200 MT/s |
| Max. Memory Speed (OC) | 7600 MT/s |
| Memory slots | 4x |
| Internal Ports | |
| CPU Power Supply | 1x 8-Pin |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Header | 1 |
| USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports | 1 |
| USB 3.0 (internal) Header | 1 |
| USB 3.0 (internal) Possible Ports | 2 |
| USB 2.0 (internal) Header | 3 |
| USB 2.0 (internal) Possible Ports | 6 |
| Front Panel Audio Header | Yes |
| SPI TPM Header | Yes |
| Expansion Slots | |
| PCIe x16 slots (total) | 4 |
| External Ports | |
| USB 3.1 (external) Type A | 2 |
| USB 3.0 (external) Type C | 1 |
| USB 2.0 (external) Type A | 6 |
| Display Connectors | HDMI (1x), Display Port (1x) |
| Storage Ports | |
| M.2 PCIe 4.0 x2 | 1 |
| M.2 PCIe 4.0 x4 | 1 |
| M.2 PCIe 5.0 x4 | 1 |
| SATA 6G (internal) | 4 |
| Audio | |
| Soundchip | Realtek ALC897 |
Delivery Options
Economy Delivery (UK)
Fast & Tracked by Courier (UK)
| Category | Specification |
|---|---|
| CPU | AMD Socket AM5, support for AMD Ryzen™ 7000 / Ryzen™ 8000 / Ryzen™ 9000 Series Processors (Refer to "CPU Support List" for more information.) |
| Chipset | AMD B650 Chipset |
| Memory | Support for DDR5 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 MT/s modules 4 x DDR5 DIMM sockets, up to 256 GB (64 GB per DIMM) Dual channel architecture Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 Supports AMD EXPO™ and XMP profiles |
| Onboard Graphics | Integrated Graphics Processor: - 1 x DisplayPort (3840x2160@144 Hz, DP 1.4) - 1 x HDMI (4096x2160@60 Hz, HDMI 2.1, HDCP 2.3) (Graphics specifications vary by CPU) |
| Audio | Realtek® ALC897 Codec High Definition Audio, 2/4/5.1/7.1-channel * Configurable via audio software |
| LAN | Realtek® RTL8111H GbE LAN (1 Gbps/100 Mbps/10 Mbps) |
| Wireless Communication | Realtek® RTL8851 Wi-Fi 6 module - Wi-Fi 802.11a/b/g/n/ac, 2.4/5 GHz Dual-Band - Bluetooth 5.0 - Support for 11ac standard |
| Expansion Slots | 1 x PCIe x16 (from CPU): - Ryzen™ 7000/9000: PCIe 4.0 x16 - Ryzen™ 8000-Phoenix 1: PCIe 4.0 x8 - Ryzen™ 8000-Phoenix 2: PCIe 4.0 x4 2 x PCIe x1 (CPU, PCIe 3.0 x1) 1 x PCIe x1 (Chipset, PCIe 3.0 x1) |
| Storage Interface | 1 x M.2 (M2A_CPU): PCIe 5.0 x4/x2 1 x M.2 (M2P_CPU): PCIe 4.0 x2 1 x M.2 (M2C_SB): PCIe 4.0 x4/x2 4 x SATA 6Gb/s connectors RAID 0, 1, 10 support (NVMe & SATA) |
| USB | CPU: - 2 x USB 3.2 Gen 2 Type-A (red, back panel) - 1 x USB Type-C® (USB 3.2 Gen 1, back panel) CPU + USB 2.0 Hub: - 4 x USB 2.0 (back panel) Chipset: - 2 x USB 3.2 Gen 1 (internal) - 1 x USB Type-C® (USB 3.2 Gen 1, internal) - 4 x USB 2.0 (2 back, 2 internal) |
| Internal I/O |
1 x 24-pin ATX main power 1 x 8-pin ATX 12V 1 x CPU fan 1 x CPU fan/water pump 2 x system fan 1 x system fan/water pump 1 x ARGB Gen2 header 1 x RGB header 3 x M.2 sockets 4 x SATA 6Gb/s 1 x front panel 1 x front panel audio 1 x USB Type-C® (USB 3.2 Gen 1) 1 x USB 3.2 Gen 1 header 3 x USB 2.0 headers 1 x TPM header 1 x Q-Flash Plus button 1 x Clear CMOS jumper |
| Back Panel |
1 x DisplayPort 1 x HDMI 1 x PS/2 keyboard/mouse 2 x SMA antenna connectors (1T1R) 1 x USB Type-C® (USB 3.2 Gen 1) 2 x USB 3.2 Gen 2 Type-A (red) 6 x USB 2.0 1 x RJ-45 LAN 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water flow rate detection Fan fail warning, fan/pump speed control |
| BIOS | 1 x 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) Support for Q-Flash, Q-Flash Plus |
| Bundled Software | Norton® Internet Security (OEM version), LAN bandwidth management software |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | ATX, 30.5cm x 24.4cm |
